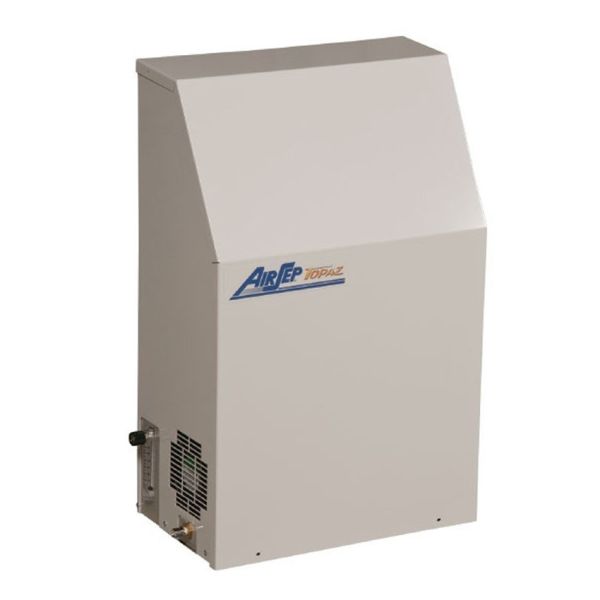

Topaz Series - Topaz, Topaz Plus, & Topaz Ultra
Specifically designed for reliability, energy efficiency, and ease-of-use, there are thousands of Topaz PSA Oxygen Generators currently in use throughout the world. The Topaz’s ability to deliver up to 95.5% oxygen concentration makes it a great fit for a wide range of commercial applications.
Features...
-
Self-contained (includes air compressor)
-
Heavy-duty metal enclosure
-
Wall or rack-mount design
-
Advanced Engineering
-
Ozone/high-temperature process tubing
-
Quick-release fittings for ease of maintenance
-
Optional oxygen concentration monitor
Typical Applications...
-
Manufacturing - Jewelry/Brazing/Soldering, Thermal/Chemical Oxidation
-
Artistic - Glass Work/Blowing
-
Environmental - Ozone (Generator) Feed Gas/Environmental Remediation/Waste/Water Treatment
Oxygen generators are a safe and reliable 1-part system for producing oxygen for soldering, melting, and brazing without the need for compressed air tanks. The AirSep system will separate oxygen and nitrogen from the atmosphere as compressed air is passed through a system of filters, allowing oxygen to flow. Equipped with their own air compressors, these generators require no special installation. Simply connect the oxygen outlet to your oxygen distribution system and the power cord to a grounded electrical outlet. Just turn the unit on and set your oxygen delivery flow gauge, and the unit will generate up to 93% nominal purity of oxygen.
|
|
Topaz |
|
Product Flow |
6 LPM (12 SCFH) |
|
Product Pressure |
9 psig (62 kPa) |
|
Product Concentration (Nominal) |
93% |
|
Product Dew Point |
-100°F (-73°C) |
|
Dimensions (WxDxH) |
19" x 10" x 27" (48 x 25 x 68 cm) |
|
Weight |
53 lb (24 kg) |
|
Maximum Operators W/ |
3 |
| Packing Qty | Priced individually |
|---|
