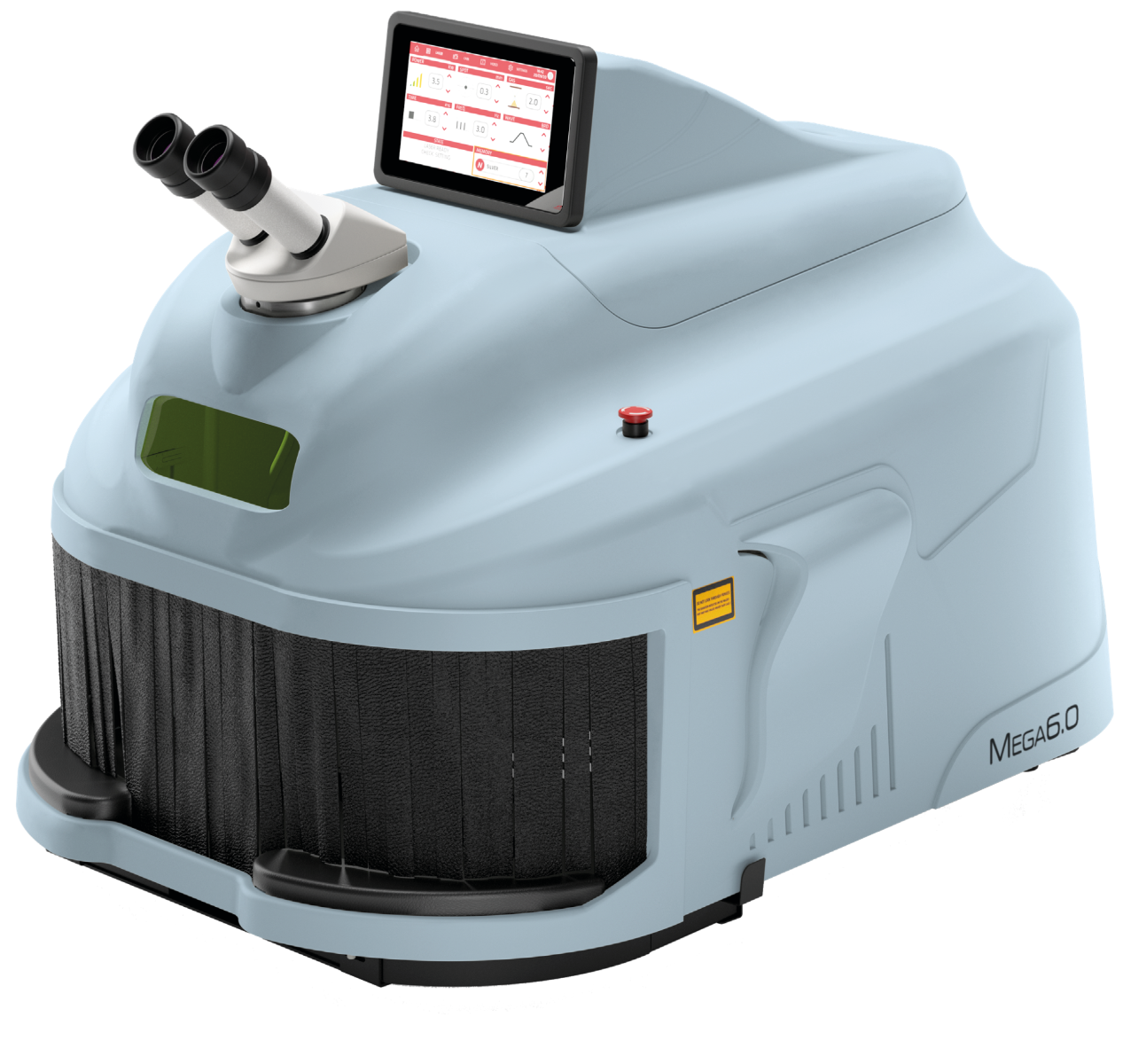

Professional Welding Laser - Mega 6.0
Mega 6.0, the pinnacle of micro-welding technology from Elettrolaser. Building on the success of the Mega SILVER series, the Mega 6.0 inherits its best features, including a spacious welding chamber and a robust double cooling system, ensuring top-notch performance for all your welding needs.
Key Features
- Energy Efficient: Upgraded internals deliver stronger, more precise laser shots with reduced power usage.
- Eco-Friendly Build: New shell made from durable, environmentally safe materials.
- SMOOTH SPOT Tech: Ensures even filler distribution for cleaner, smoother welds.
- Reflective Material Expert: Optimized for silver and other reflective metals.
- Production-Ready: Built for high-volume, digital-ready workflows.
- 3D VISION (Optional): Stereoscopic view for enhanced precision and control.
| Model # | Master 4.0 | MS 3.5 35J | MS 3.5 80J | MS 3.5 165J | Mega 6.0 | Mega 6.0 3D |
| SKU# | LZ-10130 | LZ-1030 | LZ-1035 | LZ-10135 | LZ-6014 | LZ-90180 |
| Power Joules | 225J | 35J | 80J | 165J | 255J | 255J |
| Pulse Length | 0.1 to 25 ms | 0.1 to 12 ms | 0.1 to 12 ms | 0.1 to 25 ms | 0.1 to 25 ms | 0.1 to 25 ms |
| Pulse Frequency | 0.5 to 20 Hz | 0.5 to 6 Hz | 0.5 to 20 Hz | 0.5 to 40 Hz | 0.5 to 40 Hz (0.1 opt.) Smooth Spot | |
| Spot Diameter | 0.1mm | 0.2 to 2.0mm | 0.2 to 2.0mm | 0.2 to 2.0mm | 0.1 to 2.0mm | 0.3 to 2.0 mm |
| Laser Source & Wave Length | 1064 nm | |||||
| Average Power | 100 W | 30 W | 75 W | 100 W | ||
| Maximum Peak Power | 11 kW | 4 W | 6.5 kW | 11 kW | 11 kW | |
| Cooling System | Single Fan | Double Fan | ||||
| Joules | 255J |
|---|---|
| Packing Qty | Priced individually |
