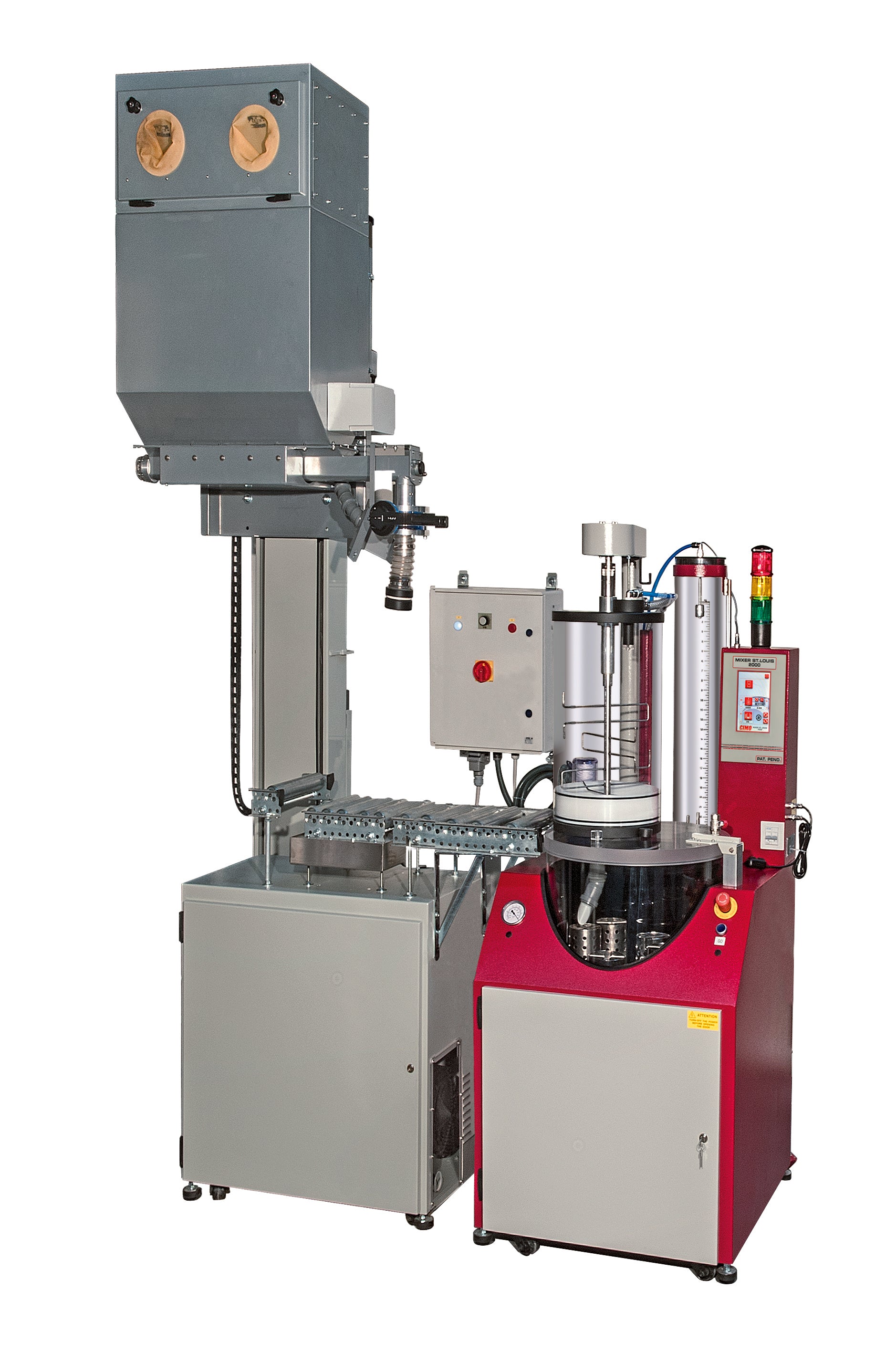

The CIMO St. Louis 2002 XXL 22 kg automatic vacuum investment mixing machine is used to mix large batches of investment material under vacuum with automatic cycle control, producing uniform, air-free slurries for mold preparation in high-volume casting environments. Its automatic operation and heavy-duty design support consistent results with reduced operator intervention.
Documents (Manuals & SDS)
Product Brochure
| Model | Powder Load | Flask # | Max Flask Size Plate Diameter | Max Flask Height | Vacuum Pump |
|---|---|---|---|---|---|
| St. Louis Mini Mixer SKU: 76-113-MINI | 1 kg (2.2 lbs) |
Single | 120 x 100 mm (4.7 x 4 in) |
4.5" (114 mm) |
Available (SKU: 7115A) |
| ST. LOUIS 92-4 KG SKU: 76-113-4KG-P | 4 kg (8.8 lbs.) |
Single | 200 x 150 mm (7.8 x 5.9 in) |
7.75" (197 mm) |
Available (SKU: 7117) |
| ST. LOUIS #82 SKU: 76-115 | 6 kg (13.2 lbs.) |
(4) 4" No Flange or (3) 4" With Flange |
200 x 280 mm (7.87 x 11.0 in) |
7.75" (197 mm) |
Available (SKU: 7119) |
| ST. LOUIS 82-PT SKU: 76-115-P | 6 kg / 3 kg (13.2 lbs / 6.6 lbs) |
(4) 4" Gold Flasks With No Flange (3) 4" Gold Flasks With Flange (3) 3" Platinum Solid Flasks |
200 x 280 mm (7.87 x 11.0 in) |
Gold: 7.75" (197 mm) Platinum: 3.75" (95 mm) |
Included |
| ST. LOUIS 2000 - 14XL SKU: 76-114-14XL | 14 kg (30 lbs.) |
6 | 350 x 330 mm (13.7 x 13 in) |
13" (330 mm) |
Included |
| ST. LOUIS 2002 - XXL SKU: 76-130 | 14 kg (30 lbs.) |
6 | 350 x 330 mm (13.7 x 13 in) |
13" (330 mm) |
Included |
| ST. LOUIS 2000-22 XXL SKU: 76-131 | 22 kg (48 lbs.) |
8 - 9 | 400 x 450 mm (15.7 x 17.7 in) |
15.7" (399 mm) |
Included |
