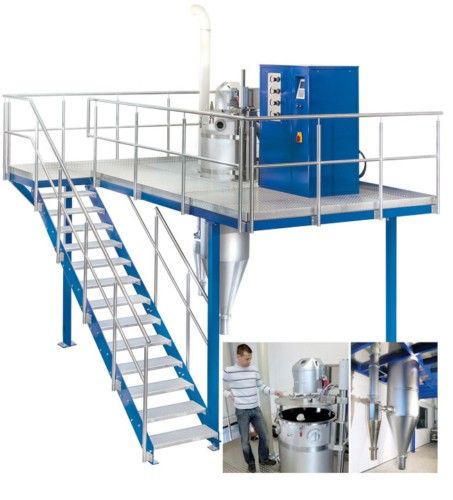

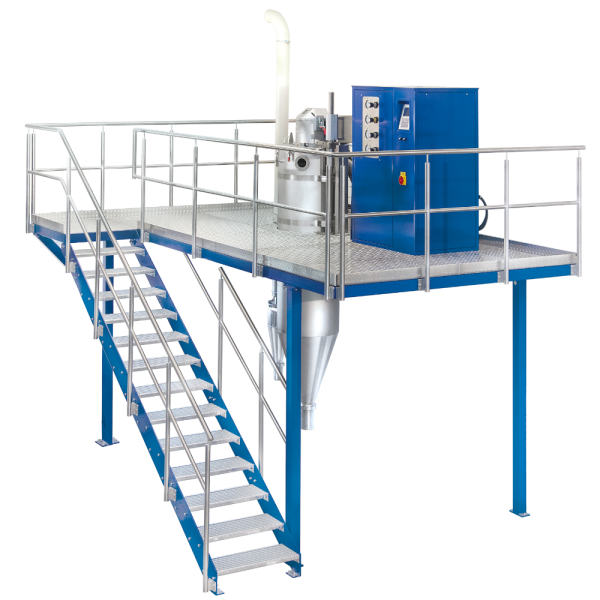

Indutherm Au Atomization Plant (Au 500, Au 1000, Au 3000, Au 12000)

For fast and economic production of small batches of metal powder...

The Indutherm Atomization plants have been particularly designed for the flexible and economic production of small-scale metal powder batches. Traditional large-scale production plants cannot provide this economic advantage.  Frequently changing alloys in production require high cleaning efforts to avoid cross-contamination. Particularly in R&D or precious metal powder applications small amounts of various kinds of powder are frequently required, often also new types of alloy powder not available on the market. Especially fast developing applications like SLM and MIM require more and more specialized metal powder.

Powder Particle Size for Every Request

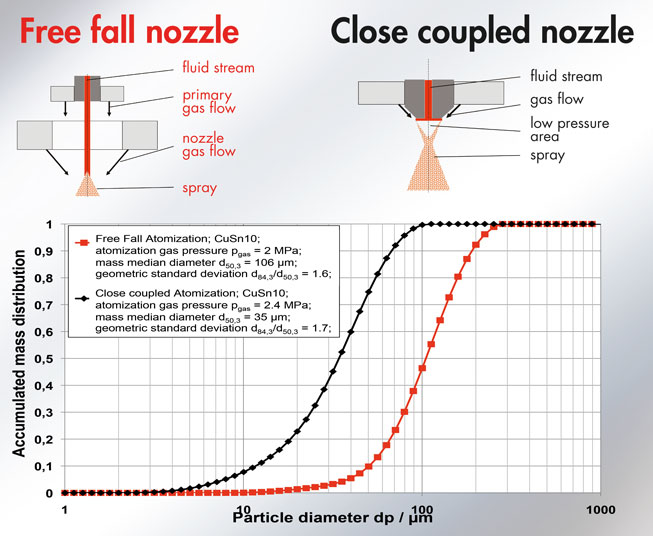

The Indutherm Atomizer is generally suitable for gas atomization of a wide spectrum of alloys; such as for example those based on Cu, Au, Ag, or Sn. The inductive heating takes place in graphite crucibles with volumes from 0.3 to 12 I. The AU machines offer the possibility of oxidization-free processing in the closed-chamber machine by means of protective gas features. To obtain specific metal powder characteristics, the AU machines work with different easy-to-change nozzle systems: free fall and close coupled atomization nozzles.

Atomizer Advantage:

• Very simple handling via LCD-Display and neatly arranged control panel.-
• Flexible and economic production of small scale / high-value metal powder batches, which is not feasible on existing, larger plants.
• Easy-to-clean concept: minimum metal loss and cross-contamination.
• High powder over a particularly wide particle size range via flexible, modular usage of different atomization nozzles and hot gas atomization.
• Particularly high process stability due to optimized nozzle systems.
• Anti-oxidation features

Indutherm MC Series

Specification	AUG 500	AUG 1000	AUG 3000	AUG 12000	AUG 25000
Generator kw	12	20	30	40-60	60+
Max Temp.	2000°C	2000°C	2000°C	1850°C	1500°C
Volume in kg bronze**	1 (optional 1.5or 4)	9	22	80	180
Volume in kg steel (HTC) **	2.5	8	22	90	On Request
Crucible Volume in l*	0.25 - 0.7	1.5-1.7	3.4-3.9	12-14	25
Single cycle time	1 - 1.5h	1.5 - 2h	3 - 4h	4 - 5h	5 - 6h

*Liquid metal up to top level of the crucible

All machine descriptions and technical data published on this site make no claim to be complete. They are subject to change and therefore they are not basis of contract.
