Indutherm Blue Power Air Classifier- AC 1000
| AC1000 | |
|---|---|
| Brand | Indutherm |
| Model | Air Classifier |
| Training | Technical Training & After Sales Support Available |
| Uncrated Weight |
127.8 lb (58kg) |
| Country of Origin | Germany |
1 or 2 Stage Air Classifier systems for the precise separation of metal powders
The AC series Air Classifiers are designed for the precise separation of metal powders into fine and coarse powder fractions especially in the range < 25 µm, where conventional sieving operations fail.
For processing of small to medium size powder batches
Due to the Easy-to-Clean concept our Air Classifiers are ideally suited for any production with the need for frequent alloy or desired particle size changes, and especially for precious and other specialty metals.

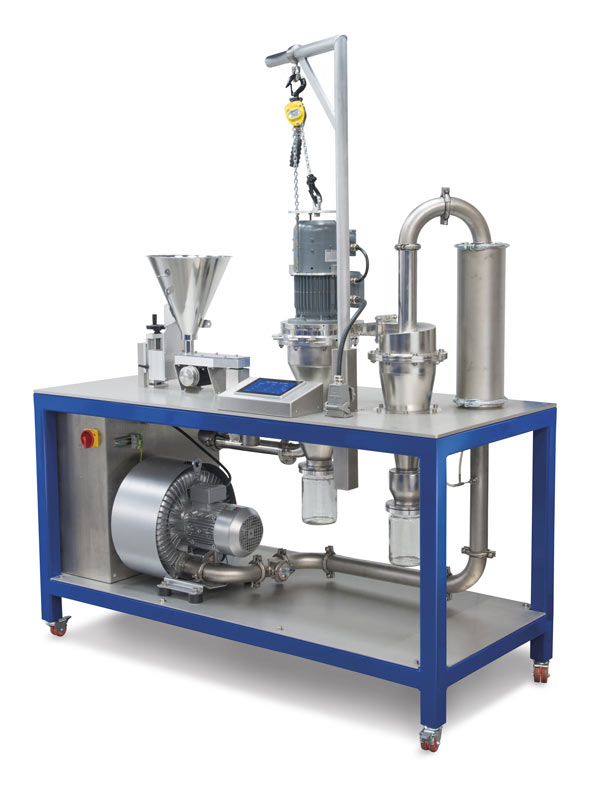

Indutherm Air Classifier AC 1000
For efficient and dependable separation of metal powders: the Air Classifier AC 1000
The Air Classifier AC 1000 offers cost-effective and versatile classification for small powder batches. It excels in separating metal powders under approximately 200 µm into fine and coarse fractions, especially in the sub-25 µm range where traditional sieving methods fall short.
Note: Without additional safety measures, the AC 1000 is not suitable for the air classification of explosive metal or alloy powders such as those containing aluminum, magnesium, zirconium, or titanium.
Blue Power Air Classifier AC 1000 G:
The "G" version includes an oxidation protection system. Processing under an inert gas atmosphere reduces the risk of oxidation.
These characteristics qualify the AC series machines for applications in research and development and also for large systems with a throughput of up to 200 kg / h (bronze or steel) and with double stage classification.
Classification under protective gas atmosphere: the G versions AC 1000 G / 3000 G
We particularly recommend the AC G-series for the separation of metals or alloys where the uptake of oxygen, moisture, or contamination from the room air must be avoided. An oxygen measuring system controls the process according to the set values. For example, a defined target O2 value can be programmed for the process start. For the classification of reactive metals, please contact us for more information
Key Features of the Blue Power Air Classifier AC 1000:
- Ideal for research, development, and small-scale production with frequent alloy changes, including precious and specialty metals.
- Minimal cleaning effort with low metal loss and reduced cross-contamination.
- High process stability.
- User-friendly handling with precise control via a touchscreen display.
- Throughput: 25 kg/h (for bronze)
Blue Power Air Classifier AC 1000 GS:
The AC 1000 GS model features additional explosion protection, making it suitable for handling explosive metal powders, such as those containing aluminum, magnesium, zirconium, or titanium.
Example Application:
Particle size distributions of a gas-atomized steel alloy can be effectively separated into coarse and fine powder fractions using the Air Classifier AC 1000.
Casting Systems Now Available with Clean Inert Gas Module. Designed for the precise separation of metal powders into fine and coarse fractions, particularly in the sub-25 μm range where traditional sieving methods are ineffective.
 |
|
|
|
|---|---|---|---|
| Specification | AC 1000 | AC 1000 G | AC 3000 G |
| SKU | AC-1000 | AC-1000G | AC-3000G |
| Throughput (steel) | 75 kg / h | 75 kg / h | 200 kg / h |
| Classifier range (steel) | 4 - 120 µm | 4 - 120 µm | 4 - 120 µm |
| Number of cut points | Single stage |
Single stage |
Single/double stage |
| Process atmosphere | Air | Inert gas | Inert gas |
| Packing Qty | Priced individually |
|---|
