Indutherm Continuous Casting Machines - CC / VCC 1000

SKU

78-4560 / 78-4560V

Skip to the beginning of the images gallery

$0.00

CC / VCC 1000
Brand:	Indutherm
Model:	CC / VCC 1000
Power:	25 kW 3 x 400 V
Max Temp	1500°C
Wire/ Tube Production	ø 40 mm / ø 65 mm (1.5 " x 2." inhces)
Sheet Production	100 x 10 mm (4" x 0.4" inches)
Training	Technical Training & After Sales Support Available
Casting Volume	4kg Al / 12kg Cu
Crated Dimensions. ( L x W x H)	1320 x 1016 x 2082mm (52 X 40 X 82" inches)
Crated Weight	503.5 kg (1110 lb )
Uncrated Dimensions (L x W x H)	1066 x 762 x 2030 mm ( 42 X 30 X 80" Inches)
Uncrated Weight	453.5 kg (1000 lb)
Country of Origin	Germany

Priced individually

Categories: Casting Equipment, Indutherm, CC/VCC Continuous Casting Machines

Details

More flexibility, lower costs...

Indutherm continuous casting machines help you reduce production costs. With only one machine, you can produce your own alloys or semi-finished products in different shapes and sizes in the shortest time, for example:

Wires or bars in every diameter you need, up to ø 40mm (CC 3000).
Sheets and strips, e.g. ring production, for stamping and pressing.
Tubes, perfect as basic material for cutting in sections for wedding ring production.
Granulates.

As the desired molds and alloys can be produced within minutes, you can reduce your investment for material in storage. Your processes will get faster, more flexible, and more efficient.

The main advantages of the Indutherm CC machines...

Short change-over times for various casting sizes.
Additional accessories are available.
E.g. diffusion bonding set (“sintering”) and granulation tank.
Induction generators with a low-frequency tuning for thorough mixing of the metal.
Automated inert gas.
High metal quality, minimal porosity.

Optional Quattro Drive...

The CC versions 1000 and 3000 are optionally available with “QUATTRO DRIVE”. That’s the name of the new drawing unit with four motor-driven feed rolls instead of only two, which transport the material such as wire, sheet, or tube down from the melting chamber. Thanks to the smooth transport with reduced pressure, the sheeting, and tubes produced by this way show nearly no marks of transportation. The need for intense post-processing such as polishing is dramatically reduced.

All continuous casting machines also available as VCC-versions with vacuum function (pat. pend.) With the VCC-versions, melting can take place under vacuum or inert gas. This is ideal for alloys containing copper such as red gold or silver since these materials tend to oxidize easily. Degasification under vacuum results in substantially improved results – because of the absence of oxidization.

*Note: These items are heavy, and require a freight truck to be delivered. A customer service representative will contact you about your order.

More flexibility, lower costs

With an Indutherm continuous casting machine, you can quickly produce your own alloys or semi-finished products in various shapes and sizes.

Wires or bars up to ø 90 mm
Sheet and strips, e.g. ring production, for stamping and pressing
Tubes, perfect as basic material for cutting in sections for wedding ring production
Granules and flakes

Using a continuous casting machine can significantly reduce your material storage investment. Your processes will become faster, more flexible, and more efficient. Our continuous casting machines feature unique innovations that greatly enhance the quality of semi-finished materials, such as the exclusive vacuum system and the QUATTRO DRIVE drawing system. For more details, see the next page. Additionally, a wide range of optional equipment further enhances the versatility of these machines.

Unique vacuum system

For highest quality of semi-finished material:

To minimize the risk of oxidation during melting and drawing, we prioritize preventing oxygen exposure and rapidly reducing the temperature of the drawn material.

Features for fast temperature reduction:

Cooling water temperature measurement and automatic flow control
Optical temperature measurement in the center of the die
Die cooler
Additional secondary cooling system at the outlet

Features to avoid oxygen contact:

Vacuum system for the melting chamber – uniquely available for Indutherm continuous casting machines (VCC versions)
Feeding system for re-charging without oxygen contact and with constant vacuum in the melting chamber
Inert gas system for the melting chamber
Inert gas flushing at the die
Optical die temperature measurement

These measures are particularly beneficial for copper-containing alloys like red gold or silver, as these materials are prone to oxidation.

Granulation tank and flake kit

The easy-to-install granulation tank and flake kit enhance the versatility of every CC machine.

Sintering kit

Sintering and diffusion bonding are ideal processes for creating multi-colored rings, commonly used as wedding bands, or bracelets. These metals are processed under pressure and at temperatures below their solidification point. The pressure is applied pneumatically rather than mechanically via a threaded spindle, eliminating the risk of graphite parts breaking due to heat expansion. The fusion between layers is as durable as the metal itself. The sintering kit is perfect for occasional diffusion bonding tasks and smaller series production.

Bar casting kit

The bar casting kit is designed to cast precise quantities of your alloy into ingot molds or other molds. The program control recognizes the installed equipment and automatically provides the appropriate parameter settings on the display.

Quattro Drive System

In each of our continuous casting machines, the material is drawn off by motor-driven and pneumatically pressed feed rolls. A bar end control sensor automatically stops the process when the molten material is depleted.

The optional Quattro Drive drawing unit, featuring four motor-driven feed rolls instead of two, produces smoother tubes and sheets with fewer transportation marks.

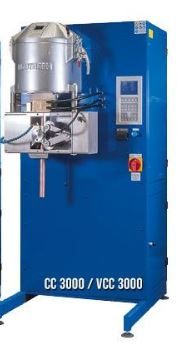

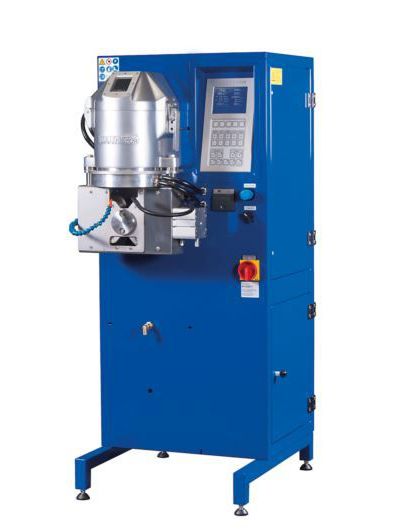

Specification	CC400 /VCC 400	CC100/ VCC 1000	CC 3000/ VCC3000
Part #	78-6600/78-4550	78-4560	78-6800 / 78-4570
Power Max./ Electrical Connection	15 kW 3 x 400V / 3 x 208V	25 kW 3 x 400V	30 kW 3 x 400V
Maximum Temp	1500°C	1500°C	1500°C
Crucible Volume	3.6 kg Au 18ct/ 2kg Cu Opt.5.8kg Au 18ct/3.3g Cu Opt.10.5kg Au 18ct/6kg Cu	1500 ccm = 22 kg Au 18 ct	3400 ccm = 51 kg Au 18 ct
Wire Production Up To	Ø 20mm / Ø 45mm	Ø 30 mm	Ø 40 mm
Sheet Production Up To	50 mm x 8 mm () Opt. 60 mm x 8 mm ()	100 mm x 10 mm	130 mm x 12 mm
Vacuum or Over-pressure after	-1 to +2 bar	-1 to +3 bar	-1 to +2 bar
100 Programs	by LCD-Display, Full test readout	by LCD-Display, Full test readout	by LCD-Display, Full test readout
Vacuum/ Inert Gas Overpressure	VCC400 Only	VCC1000 Only	VCC3000 Only
Neutral Inert Gas Atmosphere	Standard	Standard	Standard
Optical Die Temp. Reading	Standard	Standard	Standard
Die Cooler With Protective gas Fluhsing	Standard	Standard	Standard
Secondary Cooler/ Water Collection Systems	Standard/ Optional	Standard/ Optional	Standard/ Optional
End Bar Sensor	Standard	Standard	Standard
R2 232, Diagnostic System	Standard	Standard	Standard
Date Printer	Standard	Standard	Standard
GSM Modem For Remote Service	Optional	Optional	Optional
DMS/ Indutherm Cloud/ iThermControl	Standard/Optional/Optional	Standard/Optional/Optional	Standard/Optional/Optional
Quattro Drive Drawing unit	Optional	Optional	Optional
Sintering/ Diffusion Bonding Kit	Optional	n/a	n/a
Granuation Tank / Flake Option	Optional/Optional	Optional/Optional	Optional/Optional
Bending-unit/ Coliling Equip.	Optional/NA	Optional/Optional	Optional/Optional
Simultaneous Casting of several wires	N/A	Optional 3 wires	Optional 5 wires
Flying saw/ pneumatic cutter	Optional/Optional	Optional/Optional	Optional/Optional
Water Chiller, Vacuum Pump	Optional	Optional	Optional
