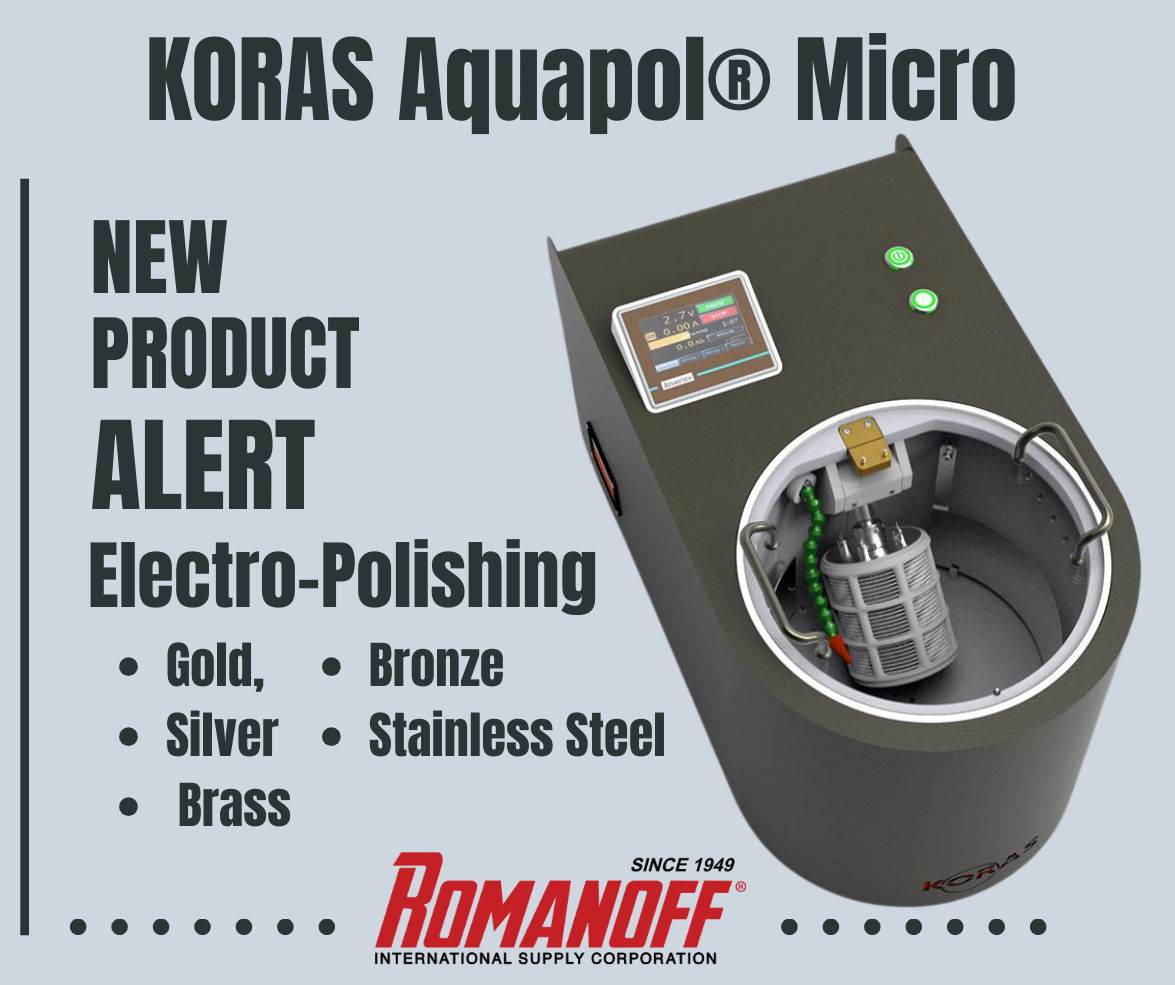

KORAS Aquapol® Micro: Basket Jewelry Electro-Polishing Unit

Aquapol® Micro: Efficient Electro-Polishing for Jewelry Production

Electro-polishing is the most gentle and cleanest way to give jewelry pieces a smooth, ultra-pure surface in an industrial production process.

Its ingenious space-saving design, featuring internal running rotors, ensures optimal performance and foot print, making it the perfect solution for high-quality jewelry finishing with space or limited work space.

The Electrolyte Difference

Superior Quality and Performance.
KORAS® electrolyte solutions offers significant advantages over traditional processing liquids, including exceptional purity, optimal mixing ratios, enhanced effectiveness, and a notably long service life.
Experience the measurable benefits of KORAS® for all your Jewelry & Precious metal electro-polishing processing needs.

Applications:

Particularly Suitable for small parts without hanger or loop

• Bulk volume 100 – 300 ml per process in different baskets.
• Process jewelry and medical pieces made of gold, silver, and other precious metals
• Polishing final cast, 3D-printed pieces
• Polishing filigree parts without changing the shape
• Cleaning of tarnished pieces

Product details and technical data:

• Automated process control
• Adjustable parameters (i.e rotation, treatment time, current density)
• Emergency Stop
• Motor Rotation Power Transmission
• Power supply: 230 V/ 50-60 Hz
• Overall dimensions in mm: 738 x 395 x 447 (LxWxH)
• Empty weight: approx. 30 kg
• Rectifier: 20A DC/ 30 V
• Capacity Volume: approx. 250 – 300 ml
• Bath volume approx. 15 l

Advantages over competitors:

• Efficient Processing: The electro-polishing process takes approximately 15-20 minutes for 250-300 ml of bulk material, depending on size and consistency.
• Specially Designed for Small Parts: Developed for small parts without suspension, processed as bulk material.
• Ideal for very small parts without hangers or loops.
• One liquid/one step process for both gold and silver polish
• Bulk volume of 100-300 ml per batch.
• One machine for both gold and silver polishing.
• A single liquid for gold 8-21kt, covering yellow, red, and white gold.
• Processing time of 15-20 minutes.
• 100% recovery of precious metals.
• Harmless liquids (non-hazardous goods)
