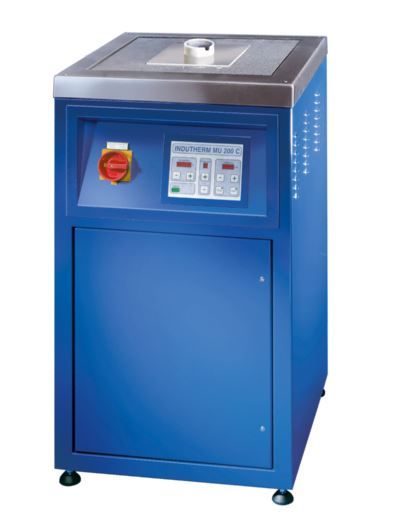

Indutherm MU 200C Platinum Induction Melter

SKU
78-1200C
Link Copied to Clipboard
main product photo
$0.00
MU 200C
Brand Indutherm
Model MU Melting Machines
Melting Power 3.5kW 230V or
6kW 3x400V
Temperature Max (Melting): 1200° C or
1500° C
( with Type S Thermocouple)
Training Technical Training & After Sales Support Available
Cooling water supply 2.5 - 6 bar/at least 200 l/h
Cooling water recoil Without pressure
Cooling water entry temperature 15 – 25°C
Machine Dimensions
(L x W X H)
 500 x500 x 900mm
(19.6" x 19.6" x 35.4" inches)
Uncrated Weight
 127.8 lb (58kg)

Link Copied to Clipboard
Priced individually
Notify me when this product is in stock
Categories: Casting Equipment, Indutherm, Melting Machines, Melters, Furnaces, & Accessories, Melters, Induction Melters

The Melting Machine MU 200C

The MU 200C has sufficient crucible capacity to generate custom alloys for example or use them on a regular basis for melting down product residues from platinum or palladium processing. For use as a casting machine we recommend the MUV versions with one or two vacuum containers.

Major Benefits

  • Easy to handle

  • Quick change of crucibles

  • Compact design

  • Very b mixing of metal

The MU as vacuum Melting machine

The MU melting systems are also available as high-temperature melting systems with ceramic crucibles.

Major Applications

  • Quick melting of metal in small or bigger quantities

  • Melting of pellets for metal analysis

  • Melting of platinum blanks for rolling processes

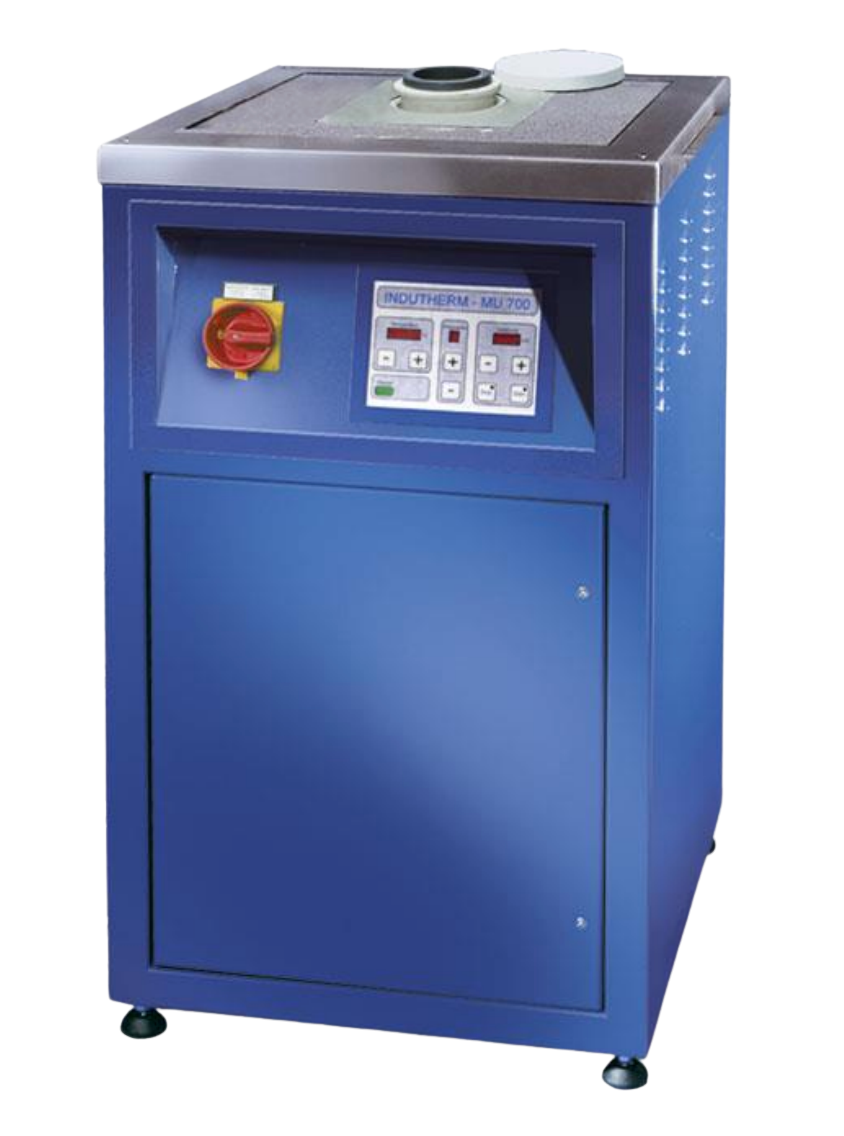

Melting Units MU Series

Flexible melting furnaces designed to melt gold and silver alloys and as well as aluminium, bronze, brass a.s.o. Due to the b induction generator up to 15 kW and the low induction frequency the stirring effect of the metal is excellent.

indutherm Blue Power Logo Indutherm Melter & Casting Machine MUV 400 Indutherm Melter & Casting Machine MUV 400 Indutherm Melter & Casting Machine MUV 400 Indutherm Melter & Casting Machine MUV 400 Indutherm Melter & Casting Machine MUV 400
Specification MU 200 MU 400 MU 700 MU 900 MU 1200
SKU # 78-1200C 78-1400 78-1700 78-1025 78-1035
Temp max. 1200° C or
1500° C ( with Type S Thermocouple)		 max. 1500 °C with type S thermocouple
Power max. / electrical connection 3.5kW 230V or
6kW 3x400V		 10 kW / 3x400V 12 kW / 3x400V 15 kW / 3x400V 15 kW / 3x400V
Crucible Volume 2.3 kg Au 18 ct 6.0 kg Au 18 ct 9 kg Au 18ct 13 kg Au 18 ct 18 kg Au 18ct
Useable capacity
 75% of maximum volume
Cooling water supply 2.5 - 6 bar/at least 200 l/h 2.5 - 6 bar/at least 200 l/h
Cooling water recoil Without Pressure
Cooling water entry temperature 15 – 25°C
Room temperature 10 – 35°C
Relative atmospheric humidity 20 – 80%
Weight approx. 58 kg
Dimensions width x depth x height 500 mm * 500 mm * 900 mm
Packing Qty Priced individually
OEM Parts Yes
