Romanoff RCS LITE 4 kW Platinum & Gold Centrifugal Casting Machine

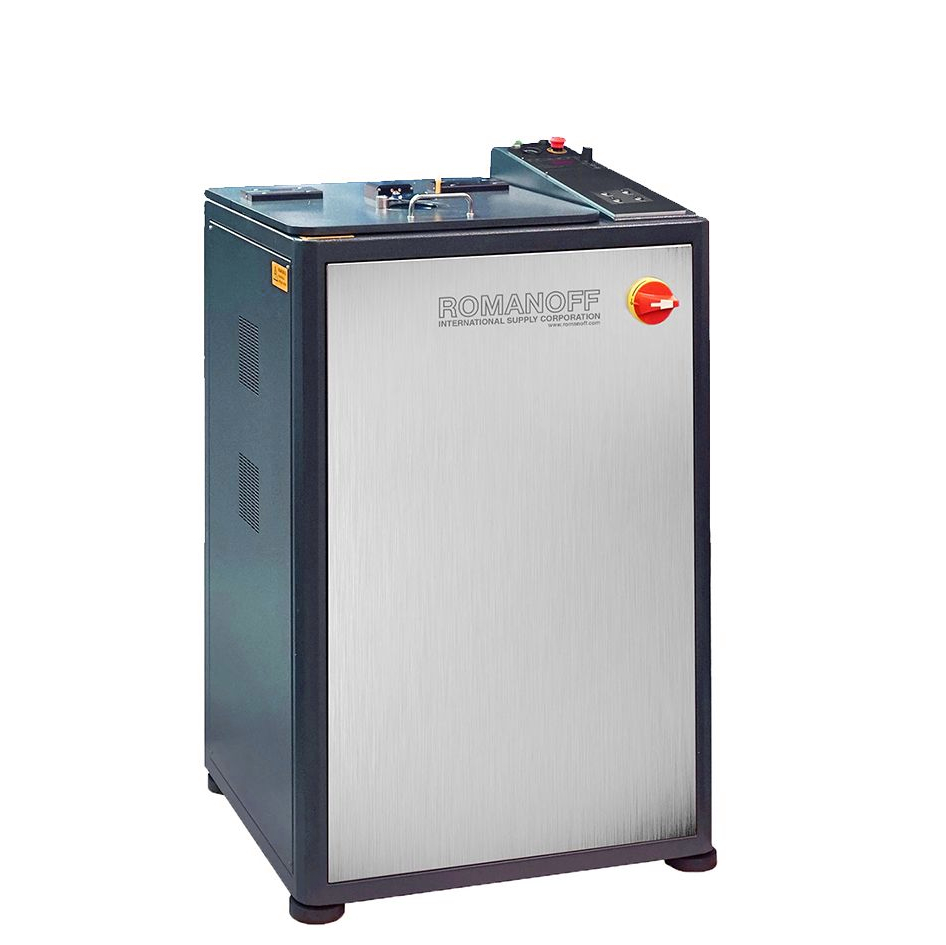

Romanoff RCS 4kw Centrifugal Casting Machine

Key Features:

Rotating Coil System (RCS): The patented RCS ensures excellent casting results by keeping the metal under consistent heat while transitioning from the crucible to the flasks. This prevents rapid metal cool down and ensures casting at the lowest temperature possible, reducing the risk of hot metal mold reactions and surface porosity.

High Melting Efficiency and Speed: Capable of casting up to 12 samples per hour, the RCS system is designed for high productivity and superior quality.

Advanced Temperature Control: The fully automatic model (79-700) features an optional Dual Color Infrared Pyrometer (79-700-DP) that compensates for emissivity variations, ensuring precise casting temperature control for metals with fluctuating emissivity.

Digital Controls: Modern digital controls with self-diagnostic features, multiple user programs, and programmable parameters such as power level, rotation speed, acceleration, melting temperature, and holding time.

Vacuum and Inert Gas Atmosphere: The machine backfills with a protective inert gas after vacuuming, ensuring a controlled environment during the melting process.

Optical Pyrometer: Provides accurate temperature readings for precise control.

Versatile Casting Capabilities: Suitable for low-temperature metals like gold and silver, and high-temperature metals like platinum and stainless steel, with a maximum temperature of up to 2000°C. Special programs are available for titanium casting.

Integrated Cooling System: Includes a built-in fresh water cooling system and vacuum pump, with an optional external chiller for continuous operation.

Benefits:

• Energy Efficiency: Enhanced energy efficiency compared to traditional resistance or flame heating methods.
• High Quality and Repeatability: The RCS system ensures consistent quality results with optimal mixing of the melt provided by the induction heating field.
• Increased Productivity: Rapid melting and sample casting capabilities improve overall productivity.
• Easy Operation and Maintenance: The compact, reliable system is CE certified with integrated safety features, making it easy to install, operate, and maintain.
• Safety: Designed for safe operation at increased temperatures, the system includes self-diagnostic warnings for water pressure, power levels, and crucible replacement needs.
• The Romanoff RCS 4kw Centrifugal Casting Machine is an excellent choice for research, recycling, foundry, or metallurgical facilities, providing exceptional casting performance with advanced features and user-friendly operation.

Specs.	Romanoff RCS LITE 5 kW Platinum & Gold	RCS 4kW (Rotating Coil System)	CCM D1 100 & CCM (Centrifugal Casting Machine)	CCM D2 200 (Centrifugal Casting Machine)
Sku #	79-700	79-7100	79-500-D1	79-500-D2
Power (max)	5.0 kW	4.0 kW	7.5 kW	7.5 kW
AC Line, (50/60Hz) 1 Phase	230 ±10%	230 ±10%	400 V ±10% 230 V ±10% (optional)	400 V ±10% 230 V ±10% (optional)
Melting Temp.(max)	2000 °C	2000 °C	2000 °C	2000 °C
Crucible Capacity	200g Platinum (50g Pt Min) 170g Gold	200g Platinum (50g Pt Min) 170g Gold	350g Pt (90g Pt min) 290g Au	750g Pt (190g Pt min) 650g Au
Crucible Volume	Gold: 44 mm (SKU: 79-702) Platinum: 44 mm (SKU: 79-701-LG)	Gold: 44 mm (SKU: 79-702) Platinum: 44 mm (SKU: 79-701-LG)	Gold: 51 mm (SKU:79-452) Platinum: 51 mm (SKU:78-0060)	Customizable
Flask Size (max), DxH	3.1 x 2.95" (80mm x 75mm)	3.1 x 2.95" (80mm x 75mm)	3.9 x 4.7" (100mm x 120mm)	4.7" x  6.2" (120mm x 160mm)
Water Cooling System	included	included	included	included
Vacuum Pump	included	included	NO	NO
Auto-Cast Programs	included	No	Yes	Yes
Titanium casting program	Yes	No	Yes	Yes
LCD touch control panel	Yes	No	Yes	Yes
Weight	342 lbs (155 kg)	385.8 lbs (174.9kg)	551.1 lbs (249.9 kg)	683.4 (309.9 kg)
Machine Size LxWxH	25.2” x 26.4” x 41.3” (640mm x 670mm x 1050mm)	25.2” x 26.4” x 41.3” (640mm x 670mm x 1050mm)	27.6” x 30” x 43.5” (701mm x 762mm x 1105mm)	35.8” x 40.6” x 43.5” (910mm x 1030mm x 1105mm)
