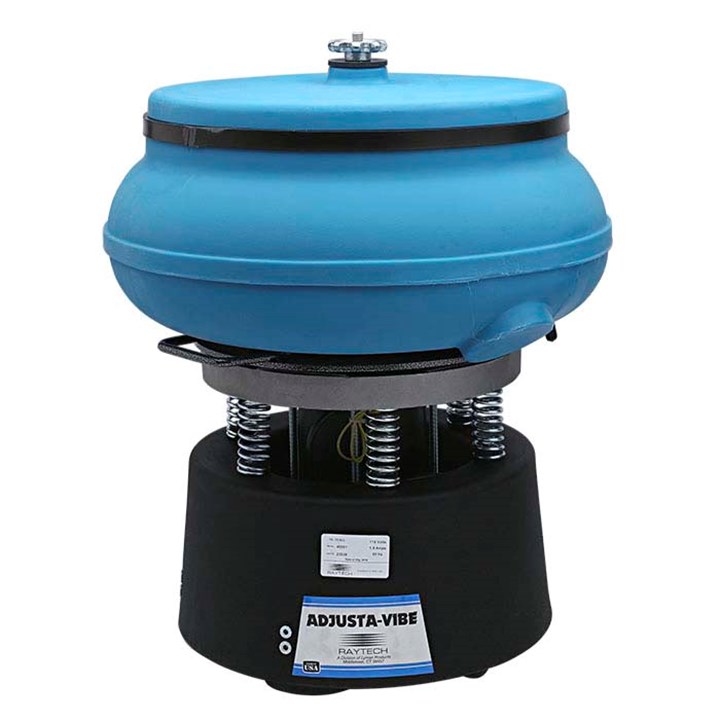

Raytech TD-75 Vibratory Finisher
SKU
82-101
Link Copied to Clipboard
$1,865.00
- Dimensions: 28"H x 21" dia.
- Voltage: 110 volts
- Amperage: 2.5 amps
- Frequency: 60Hz
- Capacity: 12 cups (approx. 400 rings)
- Brand: Raytech
- Shipping Weight: 80.3 lbs (36.423kg)
- Country Of Origin: United States
Priced individually
Categories: Polishing & Finishing, Polishing Equipment
Bowl capacity: 0.75 cu. ft.
Media capacity - 0.75 cu. ft. (6 gallons, approx); use about 70% media to 30% workpieces:
– 66 lbs. ceramic media
– 50 lbs. plastic media
– 43 lbs. shell media
– 22 lbs. hardwood media
Base: Stationary with adjustable amplitude (1.8 amps)
Noise level: 82dB (The in-situ decibel level you experience will depend on your individual set-up, the materials you're working with, and the number and size(s) of the workpieces being finished.
Motor: 0.38hp
Media capacity - 0.75 cu. ft. (6 gallons, approx); use about 70% media to 30% workpieces:
– 66 lbs. ceramic media
– 50 lbs. plastic media
– 43 lbs. shell media
– 22 lbs. hardwood media
Base: Stationary with adjustable amplitude (1.8 amps)
Noise level: 82dB (The in-situ decibel level you experience will depend on your individual set-up, the materials you're working with, and the number and size(s) of the workpieces being finished.
Motor: 0.38hp
| Packing Qty | Priced individually |
|---|
