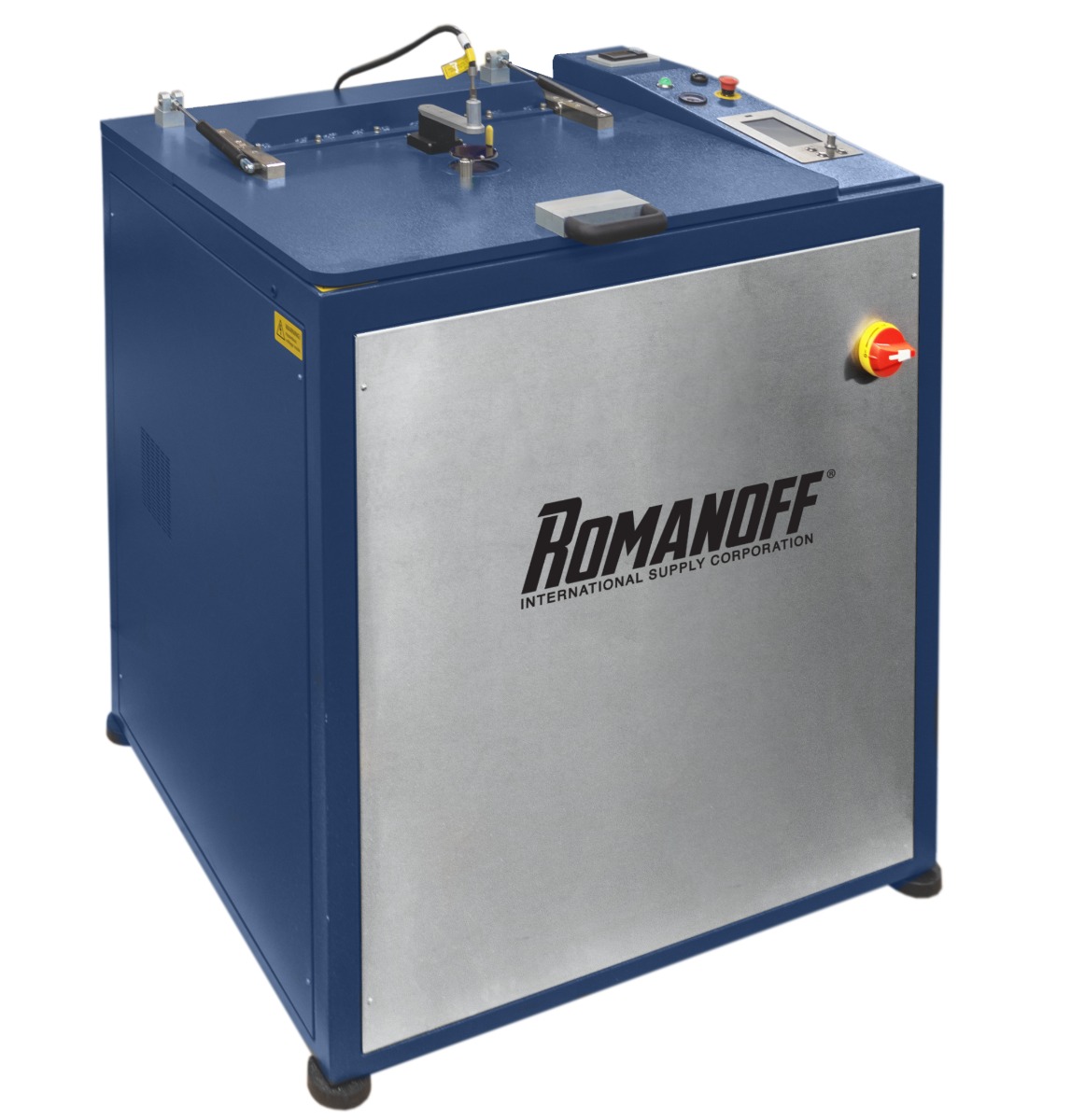

Romanoff CCM Large Centrifugal Platinum & Gold Casting Machines

SKU

79-500-D1 / 79-500-D2

Skip to the beginning of the images gallery

$0.00

RCS 5kW (Rotating Coil System)
Brand:	Romanoff
Model:	CCM/D1 100 & CCM/D2 200 (Centrifugal Casting Machine)
Power:	D1-7.5 kW D2-7.5 kW
Voltage	400 V ±10% 230 V ±10% (optional)
Amperage	24-Amps
Temperature Max (Melting):	2000°C
Crucible Capacity:	350g Pt (90g Pt min) 290g Au -------------------------- 750g Pt (190g Pt min) 650g Au
Max. Flask Capacity D1:	100mm x 120mm (3.93 x 4.7")
Max. Flask Capacity D2:	120 x 160mm (4.7 x 6.2")

**Automatic Temperature Control

*FULLY AUTOMATIC CASTING MACHINE

Categories: Casting Equipment, Centrifugal & Vacuum Casting, Casting Machines, Platinum & Stainless Steel Casting Machines, Gold & Silver Casting Machines, Gold, Silver & Platinum Casting Machines

Details

Excellent Casting Results with Romanoff CCM Centrifugal Casting Machines

The Romanoff line of casting machines have unique features, such as: Melting in a vacuum controlled atmosphere, built-in Micro-Processor Computer to ensure consistent quality castings, control of initial acceleration and final RPM, (16 automatic casting programs, 9 parameters per program) optical pyrometer, a built-in heavy-duty Vacuum Pump, Self Diagnostic warning system to notify operators if water pressure or power is low or crucible needs to be changed.

Main benefits

New heavy-duty melting generator
Easy to use digital Control Panel
20 user programs with 10 programmable parameters each
Built-in 20 m3 vacuum pump and Argon Gas circuit
Metal emissivity regulation
Accurate temperature reader with advanced thermoregulator
Excellent heating cycle control
Casting with precious stones
Vacuum-Argon washing cycle
Advanced diagnostic features and error messages

“PID” (Proportional-Integral-Derivative) This is a continuous feedback loop that keeps the process flowing normally by taking corrective action whenever there is any deviation from the desired value (set point) of the process variable (rate of flow, temperature, voltage, etc.)

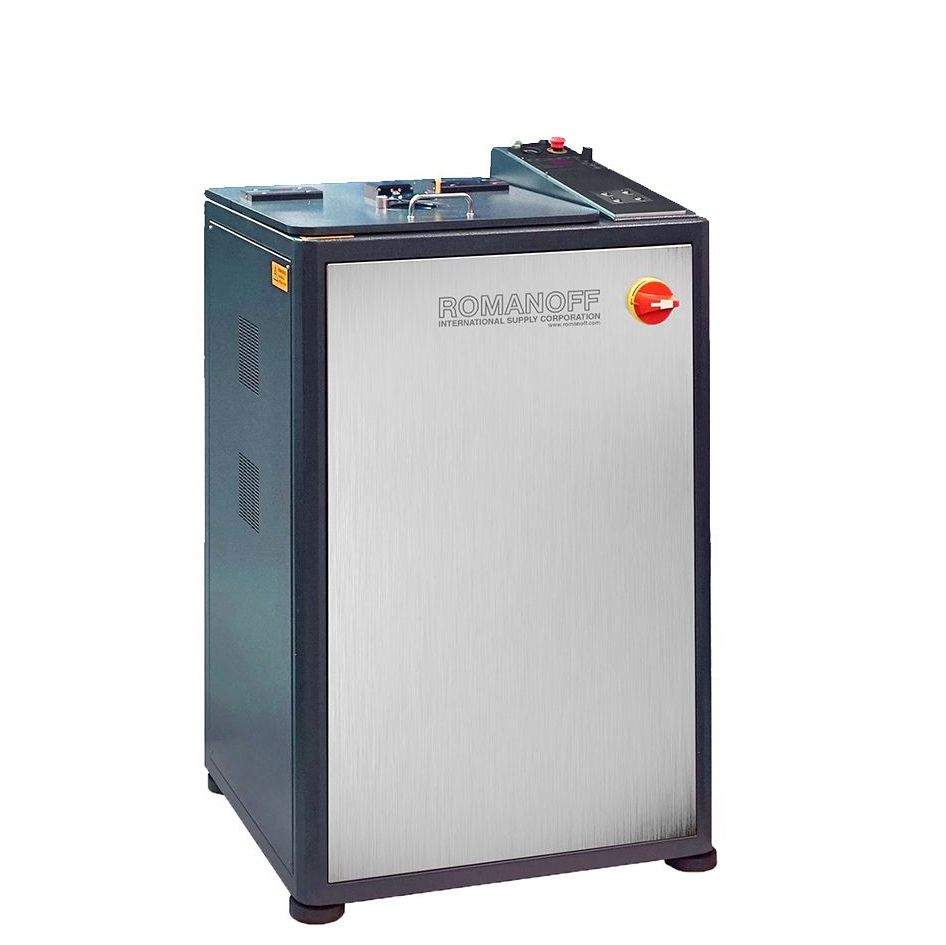

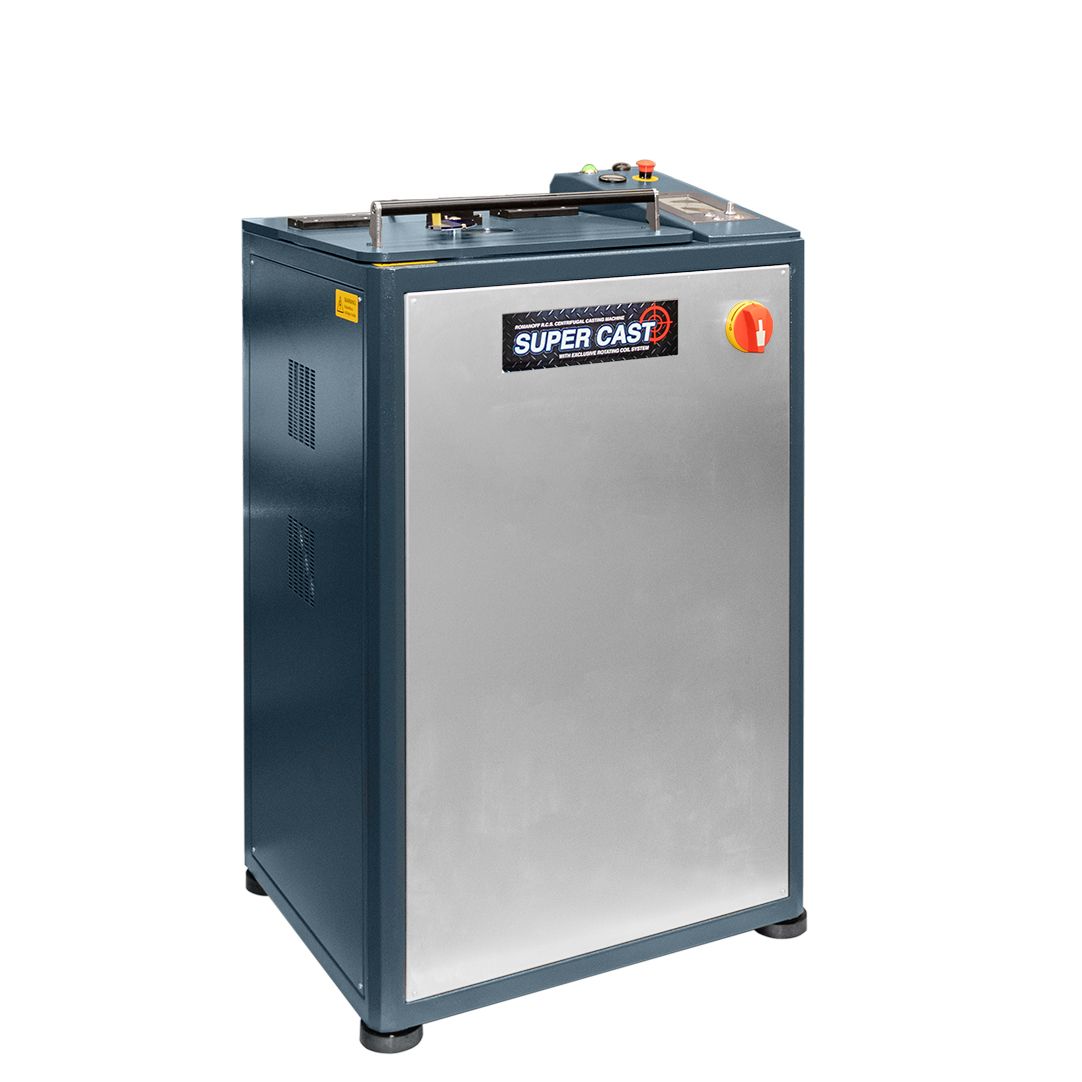

Specs.	Romanoff RCS LITE 5 kW Platinum & Gold	RCS 4kW (Rotating Coil System)	CCM D1 100 & CCM (Centrifugal Casting Machine)	CCM D2 200 (Centrifugal Casting Machine)
Sku #	79-700	79-7100	79-500-D1	79-500-D2
Power (max)	5.0 kW	4.0 kW	7.5 kW	7.5 kW
AC Line, (50/60Hz) 1 Phase	230 ±10%	230 ±10%	400 V ±10% 230 V ±10% (optional)	400 V ±10% 230 V ±10% (optional)
Melting Temp.(max)	2000 °C	2000 °C	2000 °C	2000 °C
Crucible Capacity	200g Platinum (50g Pt Min) 170g Gold	200g Platinum (50g Pt Min) 170g Gold	350g Pt (90g Pt min) 290g Au	750g Pt (190g Pt min) 650g Au
Crucible Volume	Gold: 44 mm (SKU: 79-702) Platinum: 44 mm (SKU: 79-701-LG)	Gold: 44 mm (SKU: 79-702) Platinum: 44 mm (SKU: 79-701-LG)	Gold: 51 mm (SKU:79-452) Platinum: 51 mm (SKU:78-0060)	Customizable
Flask Size (max), DxH	3.1 x 2.95" (80mm x 75mm)	3.1 x 2.95" (80mm x 75mm)	3.9 x 4.7" (100mm x 120mm)	4.7" x 6.2" (120mm x 160mm)
Water Cooling System	included	included	included	included
Vacuum Pump	included	included	NO	NO
Auto-Cast Programs	included	No	Yes	Yes
Titanium casting program	Yes	No	Yes	Yes
LCD touch control panel	Yes	No	Yes	Yes
Weight	342 lbs (155 kg)	385.8 lbs (174.9kg)	551.1 lbs (249.9 kg)	683.4 (309.9 kg)
Machine Size LxWxH	25.2” x 26.4” x 41.3” (640mm x 670mm x 1050mm)	25.2” x 26.4” x 41.3” (640mm x 670mm x 1050mm)	27.6” x 30” x 43.5” (701mm x 762mm x 1105mm)	35.8” x 40.6” x 43.5” (910mm x 1030mm x 1105mm)
