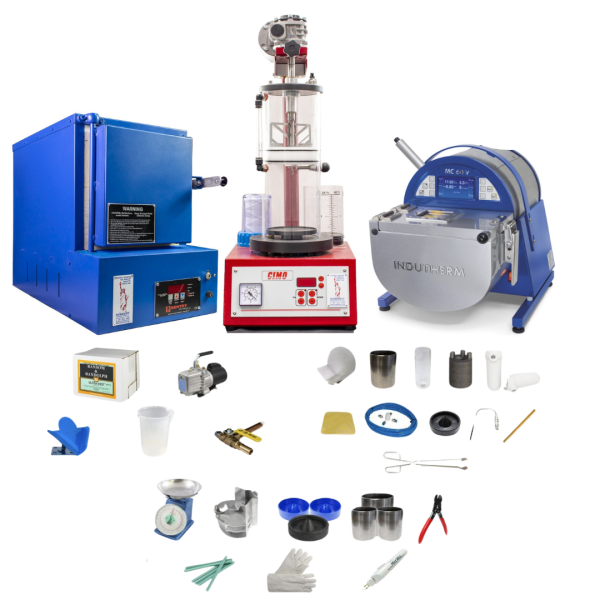

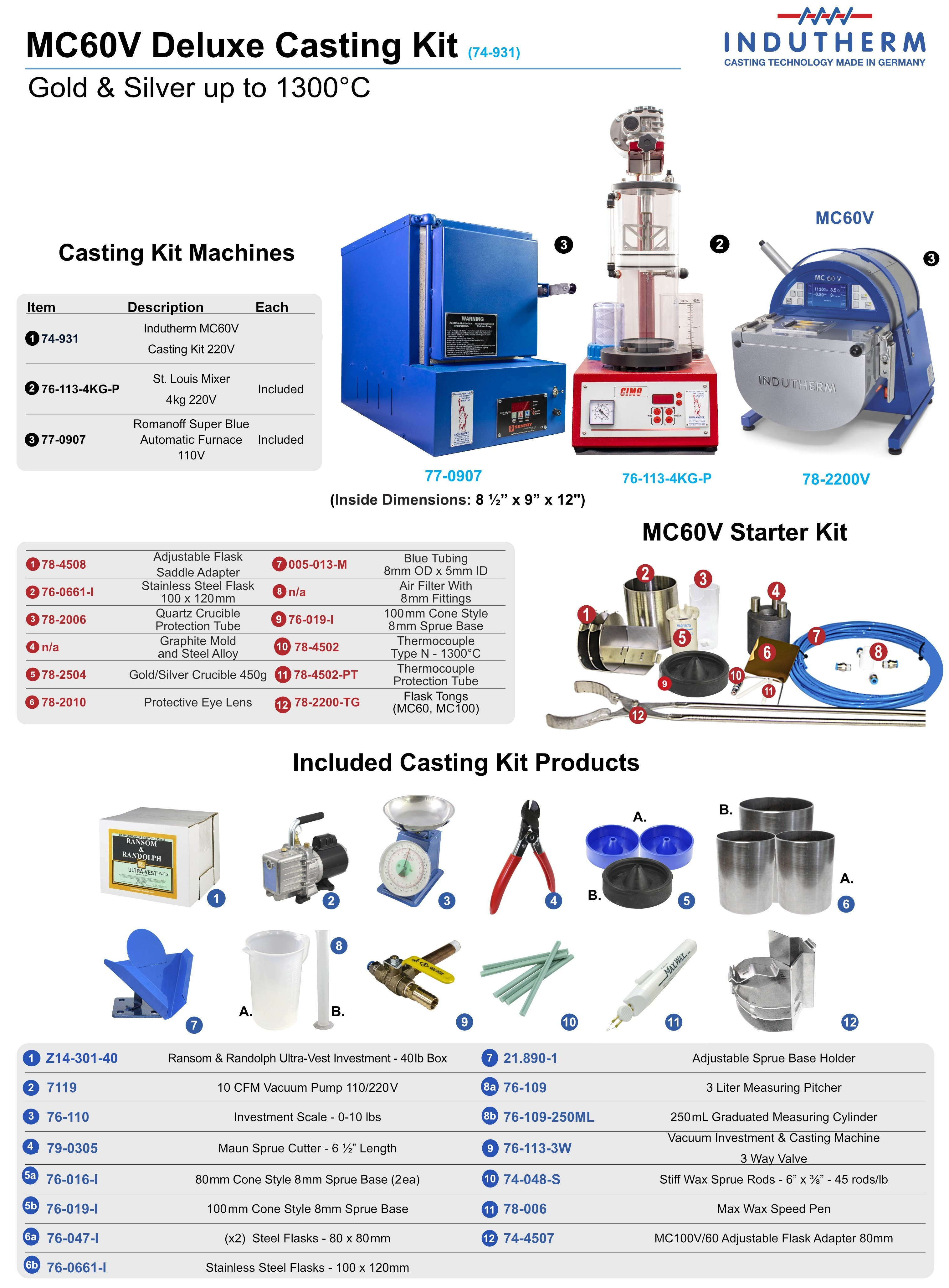

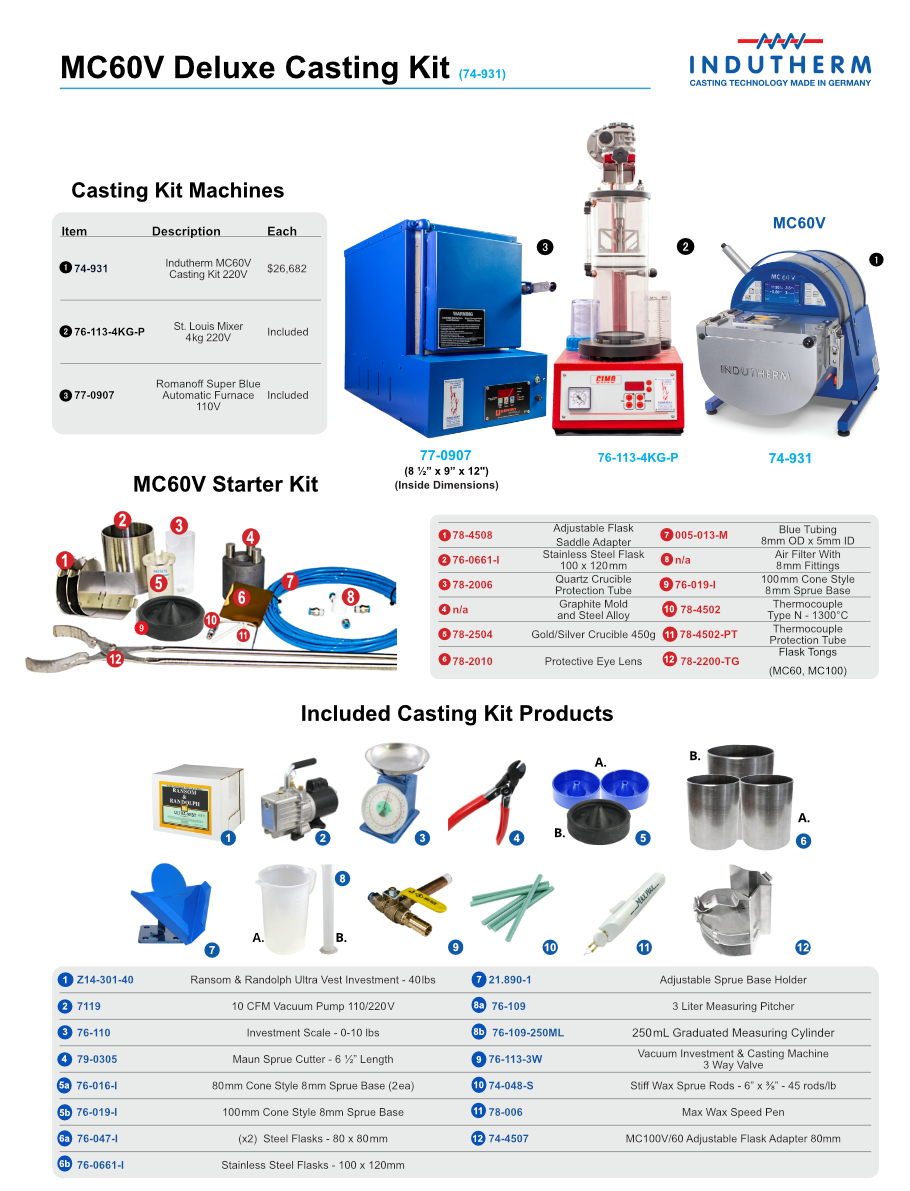

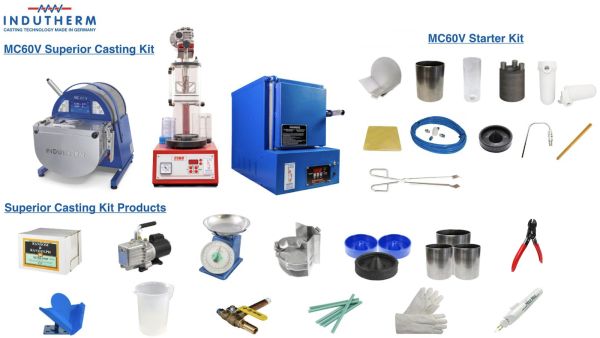

Indutherm MC 60V Casting Kit

The Indutherm MC60 V has been developed with the user in mind for whom the MC 16 is too small but a simple machine from the large VC series (e.g. the VC 400) is too big or requires too much manual operation. This small-medium high-performance casting machine is ideal for jewelry alloys such as gold, silver, copper, and bronze, as well as for alloys of brass and aluminum. Thanks to the vacuum and overpressure functions as well as the many automatic control features, the machine provides first-class castings with very little work. The use of the included vibration technology when casting ensures better form filling, creating casts with greater, more consistent densities, higher elasticity, and greatly reduced porosity.

* Due to the size and/or weight of this item, it must be delivered by freight truck. Upon completing your order, a customer service agent will call you to arrange delivery. Hazmat Items may not be combined for International Shipping (ask for details).

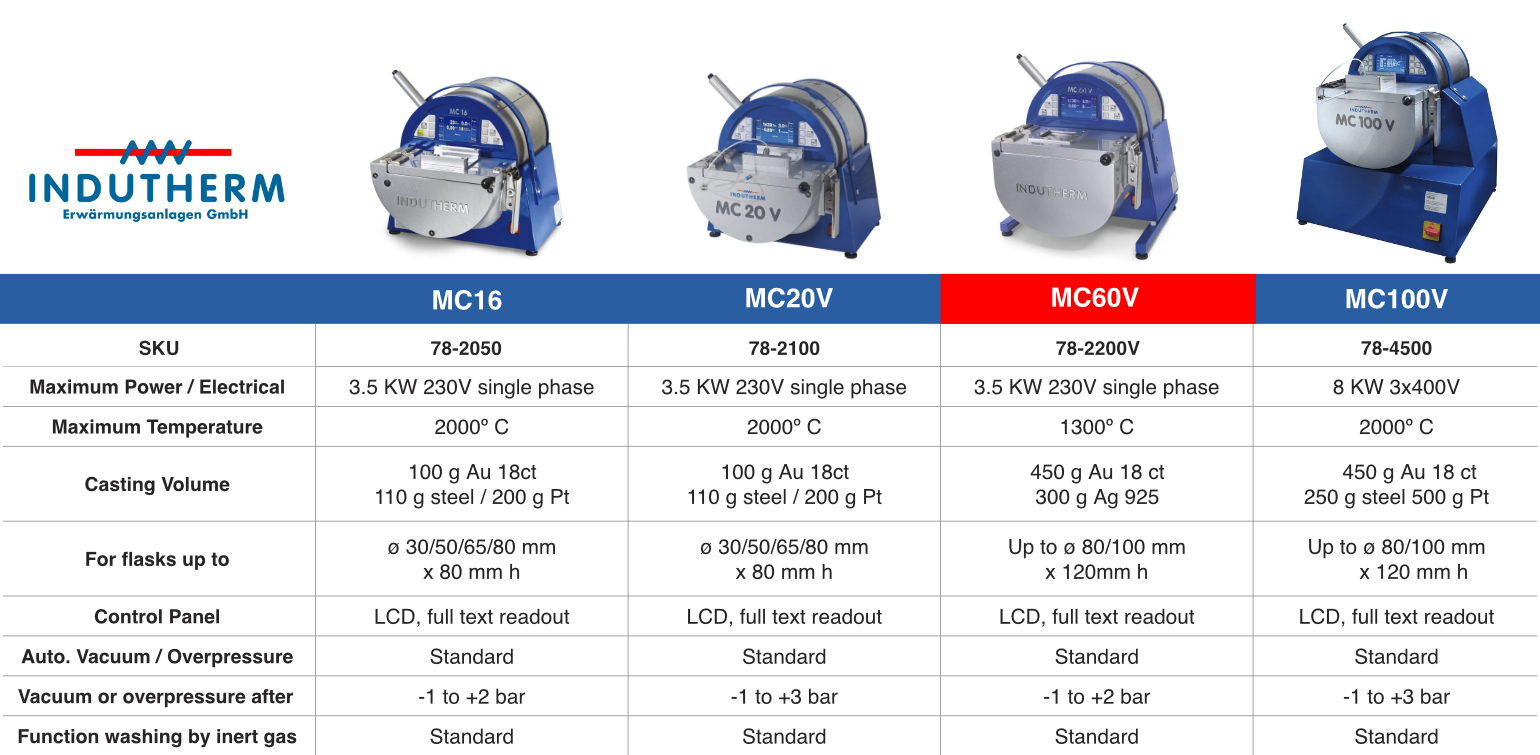

Indutherm MC Series

Specification	MC16	MC20V	MC60V	MC100V
SKU	78-2050	78-2100	78-2200V	78-4500
Maximum Power/Electrical	3.5 KW 230V Single Phase	3.5 KW 230V Single Phase	3.5 KW 230V Single Phase	8 KW 3x400V
Maximum Temp	2000°C	2000°C	1300°C	2000°C
For Flasks Up To	Ø 30/50/65/80 mm x 80mm h	Ø 30/50/65/80 mm x 80mm h	Up to Ø 80/100  mm x 120mm h	Up to Ø 80/100 mm x 120mm h
Casting Volume	100 g Au 18ct  110g steel/200 g Pt	100 g Au 18ct  110g steel/200 g Pt	450 g Au 18ct 300 g Ag 925	450 g Au 18ct 250 g Steel  500 g Pt
Control Panel	LCD, Full Text Readout	LCD, Full Text Readout	LCD, Full Text Readout	LCD, Full Text Readout
Auto Vacuum/Over-Pressure	Standard	Standard	Standard	Standard
Vacuum or Over-pressure after	-1 to +2 bar	-1 to +3 bar	-1 to +2 bar	-1 to +3 bar
Function Washing by Inert Gas	Standard	Standard	Standard	Standard
