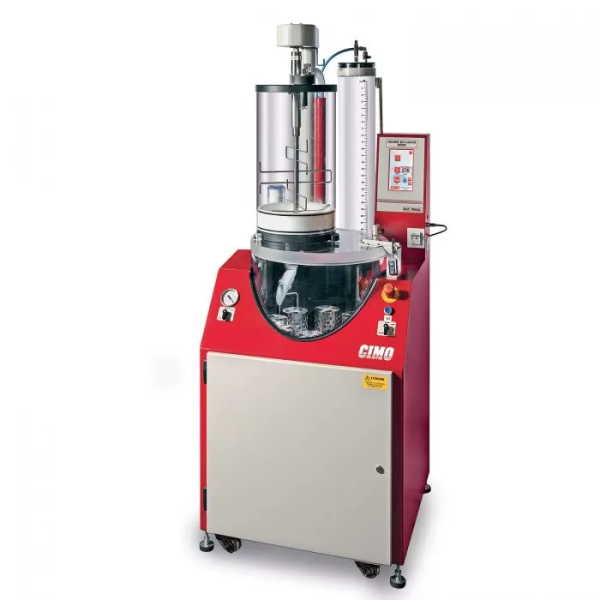

St. Louis 2000 XXL - 22 Kg Investment Mixer

The most important feature of this unit is that you are mixing and pouring investment under a controlled vacuum environment.

Now you can automatically mix and pour your gold investment under vacuum with the St. Louis Investment Mixer. This is a real time saver as you will not have separate mixing, pouring and vacuuming operations. Since it is user friendly, anyone can be trained in a few minutes to operate this unit.

This industrial machine is for heavy duty use capable of preparing 22kg of investment powder for each single investing process. Due to a heavy weight of the mixing container filled with powder, the unit is supplied with a side metal cabinet with rollers and digital scale for the easy transfer of the mixing container in it's working position. Optional 100 cbm/h vacuum pump supplied, voltage: 380V 3 Phase. This fabulous unit will reduce casting rejects and produce bubble free castings

Main Benefits

• The only patented system to blend investment for fusion, eliminating any presence of gas
• This mixer blends the investment under vacuum, shortens working time and is user friendly
• The machine guarantees a better environment both for the operator and others working in the same area
• The sealed system eliminates toxic dust from the atmosphere
• Complete de-gassing of the investment
• Various mixer speeds suitable for every type of investment
• Memorization of mixing time

• Place your flasks in the enclosed flask chamber under the investment mixing chamber
• Using the built in digital scale, fill up a bowl or bucket of how much investment you will need for the quantity of flasks you wish to invest
• Then type in the investment powder weight into the computer
• Program into the St. Louis 2000 XXL's computer the mixing ratio of powder to water the investment manufacturer recommends for the type of investment you are using
• Then manually operate the fill up water valve
• You can control the mixing process such as vacuum pressure, vibration strength, mixing times, mixing speeds, blade rotation and more
• Then load the powder into the mixing chamber and the machine then add the correct amount of water needed based on the mix ratio
• During the mixing process, turn on the vacuum
• After the mixing cycle is completed, the operator will manually pour the investment slurry into each flask while under vacuum with vibration
• After the flasks have been removed, the unit will perform a cleaning cycle of the investment

SKU#	76-113-MINI	76-113-4KG-P	76-115	76-115-P	76-114-14XL	76-130	76-131
Name	St. Louis Mini Mixer	ST. LOUIS 92-4 KG.	ST. LOUIS #82	ST. LOUIS 82-PT	ST. LOUIS 2000 - 14XL	ST. LOUIS 2002 - XXL	ST. LOUIS 2000-22 XXL
Powder Load	1 Kg (2.2 lbs)	4 kg (8.8 lbs.)	6 kg (13.2 lbs.)	6 Kg Au / 3 Kg Pt (13.2 lbs/6.6 lbs)	14 kg  (30 lbs.)	14 kg (30 lbs.)	22 kg. (8.5 lbs.)
Flask #	Single	Single	Multi.	Multi.	Multi.	Multi.	Multi.
Flask Size  Height & Diam.	120 mm (H) x 100 mm (Diam.) (4.7" x 4") in	200mm (H) x 150mm (Diam) (7.8" X 5.9") in.	200 mm (H)x 280 mm (Diam) (7.87" x 11.0") in.	200 mm (H) x 280 mm (Diam.) (7.87" x 11.0") in	350 mm (H) x 330 mm (Diam.) (13.7" X 13") in	350 mm (H) x 330 mm (Diam.) (13.7" X 13") in.	400 mm(H) x 450 mm (Diam.) (15.7" x 17.7") in.
Voltage	220V 1 Phase	220V 1 Phase	220V 1 Phase	220V	220V	220V	220+ 380 V
Power	300W	300W	700w	2000w	2200W	2200W	2500+ 1000P
Motor Power	50W	90W	280w	280w	n/a	n/a	220/ 380 W
Vacuum Pump	No	No	No	Yes	Yes	Yes	Yes
Advise Pump	6/10m3  3/7 CFM	6/10m3  8CFM	6/10m3 10CFM	18m3 10CFM	40/50m3 21CFM	40/50m3 21CFM	100m3 21CFM
Unit size Uncrated L x W x H	30 x 35x 72 cm (11.8"" x 13.7" x 28.3") inches	30 x 35 x 85 cm (11.8" x 13.7" x 33.4") inches	42 x42 x 105cm (16.5"x 16.5" x 41.3") inches	42x 42x 175 cm (16.5" x6.5" x 68.8") inches	62 x 66 x 172 cm (24.4" x26"x 67.7") inches	62x 66x 172 cm (24.4" x26"x 67.7") inches	72x 80x 175 cm 28.3"x 31.4"x 68.8 ") inches
Uncrated Weight	17 kg 37.47 lbs	22 kg 48.5 lbs.	24 kg 52.9 lbs.	98 kg  216.0 lbs.	210 kg  463 lbs.	220 kg 485 lbs.	150 kg. 330.6 lbs.
Unit Size Crated L x W x H	38 x 38 x 85h cm (15" x 15" x 33.5" inches)	38 x 38 x 105 cm  (15" x 15" x 41.3" inches)	52 x 52 x 132 cm (20.4" x 20.4" x 52" inches)	56 x 96 x 124 cm (22"x 37.7" x 48.8" inches)	82 x 82 x 190 cm (32.2" x 32.2" X 74.8" inches)	82 x 82 x 190 cm (32.2" x 32.2" X 74.8" inches)	90 x 90 x 200 cm (35.4" x 35.4" x 78.7" inches)
Crated Unit Weight	20kg (44 lbs)	24 kg  (53lbs)	61 kg (134.4 lbs.)	125 kg (275.5 lbs.)	267 kg (588.6 lbs.)	280 kg (617.2 lbs.)	205 kg (452 lbs.)
