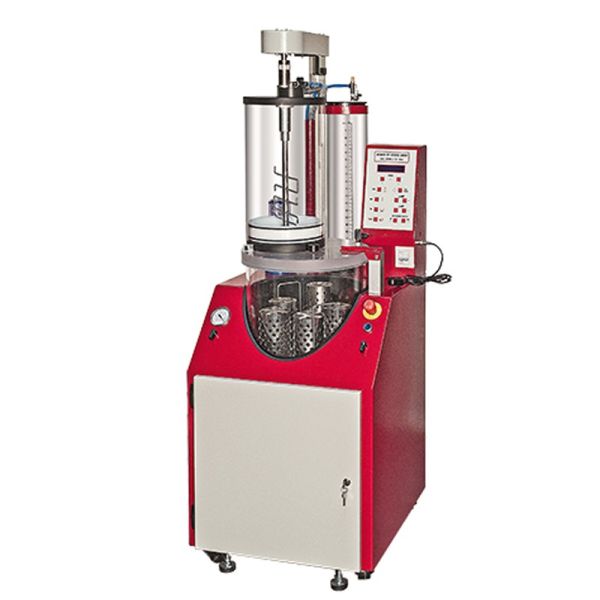

St. Louis CIMO 2000XL 14-Kg Vacuum Investment Mixing Machine

The most important feature of this unit is that you are mixing and pouring investment under a controlled vacuum environment.

Now you can automatically mix and pour your gold investment under vacuum with the St. Louis Investment Mixer. This is a real-time saver as you will not have separate mixing, pouring, and vacuuming operations. Since it is user-friendly, anyone can be trained in a few minutes to operate this unit. Simply place your flasks in the enclosed flask chamber under the investment mixing chamber. Measure the correct amount of investment and water, then close the mixing chamber and start the vacuum pump (not included). When you have achieved vacuum, turn on the adjustable speed mixing unit and set your timer.

These units will reduce casting rejects and produce bubble-free castings! Now you are ready to pour your flask. Position your flask under the valve, apply vacuum to the lower chamber and open the valve. As the investment fills the flasks, turn on the adjustable vibration table under the flasks, and you are done!

On Special Request: Available version for 250mm flask height.

Complete heavy-duty unit for multiple flasks filling in each single investment preparation process up to 14Kg max powder capacity.

Main Benefits

• The only patented system to blend investment for fusion, eliminating any presence of gas
• This mixer blends the investment under vacuum, shortens the working time, and is user friendly
• The machine guarantees a better environment both for the operator and others working in the same area
• The sealed system eliminates toxic dust from the atmosphere
• Complete de-gassing of the investment
• Various mixer speeds suitable for every type of investment
• Memorization of mixing time

SKU#	76-113-MINI	76-113-4KG-P	76-115	76-115-P	76-114-14XL	76-130	76-131
Name	St. Louis Mini Mixer	ST. LOUIS 92-4 KG.	ST. LOUIS #82	ST. LOUIS 82-PT	ST. LOUIS 2000 - 14XL	ST. LOUIS 2002 - XXL	ST. LOUIS 2000-22 XXL
Powder Load	1 Kg (2.2 lbs)	4 kg (8.8 lbs.)	6 kg (13.2 lbs.)	6 Kg Au / 3 Kg Pt (13.2 lbs/6.6 lbs)	14 kg  (30 lbs.)	14 kg (30 lbs.)	22 kg. (8.5 lbs.)
Flask #	Single	Single	Multi.	Multi.	Multi.	Multi.	Multi.
Flask Size  Height & Diam.	120 mm (H) x 100 mm (Diam.) (4.7" x 4") in	200mm (H) x 150mm (Diam) (7.8" X 5.9") in.	200 mm (H)x 280 mm (Diam) (7.87" x 11.0") in.	200 mm (H) x 280 mm (Diam.) (7.87" x 11.0") in	350 mm (H) x 330 mm (Diam.) (13.7" X 13") in	350 mm (H) x 330 mm (Diam.) (13.7" X 13") in.	400 mm(H) x 450 mm (Diam.) (15.7" x 17.7") in.
Voltage	220V 1 Phase	220V 1 Phase	220V 1 Phase	220V	220V	220V	220+ 380 V
Power	300W	300W	700w	2000w	2200W	2200W	2500+ 1000P
Motor Power	50W	90W	280w	280w	n/a	n/a	220/ 380 W
Vacuum Pump	No	No	No	Yes	Yes	Yes	Yes
Advise Pump	6/10m3  3/7 CFM	6/10m3  8CFM	6/10m3 10CFM	18m3 10CFM	40/50m3 21CFM	40/50m3 21CFM	100m3 21CFM
Unit size Uncrated L x W x H	30 x 35x 72 cm (11.8"" x 13.7" x 28.3") inches	30 x 35 x 85 cm (11.8" x 13.7" x 33.4") inches	42 x42 x 105cm (16.5"x 16.5" x 41.3") inches	42x 42x 175 cm (16.5" x6.5" x 68.8") inches	62 x 66 x 172 cm (24.4" x26"x 67.7") inches	62x 66x 172 cm (24.4" x26"x 67.7") inches	72x 80x 175 cm 28.3"x 31.4"x 68.8 ") inches
Uncrated Weight	17 kg 37.47 lbs	22 kg 48.5 lbs.	24 kg 52.9 lbs.	98 kg  216.0 lbs.	210 kg  463 lbs.	220 kg 485 lbs.	150 kg. 330.6 lbs.
Unit Size Crated L x W x H	38 x 38 x 85h cm (15" x 15" x 33.5" inches)	38 x 38 x 105 cm  (15" x 15" x 41.3" inches)	52 x 52 x 132 cm (20.4" x 20.4" x 52" inches)	56 x 96 x 124 cm (22"x 37.7" x 48.8" inches)	82 x 82 x 190 cm (32.2" x 32.2" X 74.8" inches)	82 x 82 x 190 cm (32.2" x 32.2" X 74.8" inches)	90 x 90 x 200 cm (35.4" x 35.4" x 78.7" inches)
Crated Unit Weight	20kg (44 lbs)	24 kg  (53lbs)	61 kg (134.4 lbs.)	125 kg (275.5 lbs.)	267 kg (588.6 lbs.)	280 kg (617.2 lbs.)	175 kg (385.8 lbs.)
