Yasui K2 NEXT 10KW Gold Casting Machine

SKU

79-300-K210KW

Skip to the beginning of the images gallery

$0.00

K2 NEXT 10KW
Brand	Yasui
Model	K2 NEXT 10KW
Power	380V +/-10%, 50/60Hz 3 phase, 6.5KVA (5KW) or 380V +/-10%
Temperature Max	1200°C
Thermocouple Max Temperature	K-Type up to 1200°C R-Type up to 1450°C
Training	Technical Training & After Sales Support Available
Casting Volume	150cc (1.5kg 18kt) Crucible P/n 79-303-K3
Compatile Flasks (D X H)	Standard: 125mm dia.x 230mm (H) (5"dia. x 9"(h) inches) (Optional): 125mm dia. x 300mm(H) (5"dia. x 11.8"(h) inches)
Machine Dimensions	721(W) x 753 (D) x 1,201 (H) mm (29" L x 30" W x 48" H)
Crated Weight	250kg (551.1lbs.)
Country of Origin	Japan

*** Requires Step Up Transformer if 380V is not available: 79-300-K3UPX

Priced individually

Notify me when this product is in stock

Categories: Yasui, Casting Machines

Details

Save Time and Gold:

Engenireed to provide a complte vacuum atmosphere the K2 NEXT 10K vacuum pressure casting machines aaccomdate large gold flash capacities, have an after mode with out oxidation and variabel heat for gold loss.

Advantages of Yasui K2 NEXT 10KW - Gold Casting Machine

NEXT vacuum pressure machine by YASUI is your next machine to create quality.

Extra mixing for perfect homogenous fold alloys.
Exceptional melting speed
De-Gas with good filling pieces
PRecise double-neddle guage with improved pressure sensing
De-Gas – with good filling pieces
Easy to maintain
Accurate pressure timing
Self-diagnosis – P.I.D auto-tuning
Memory of parameter for best casting

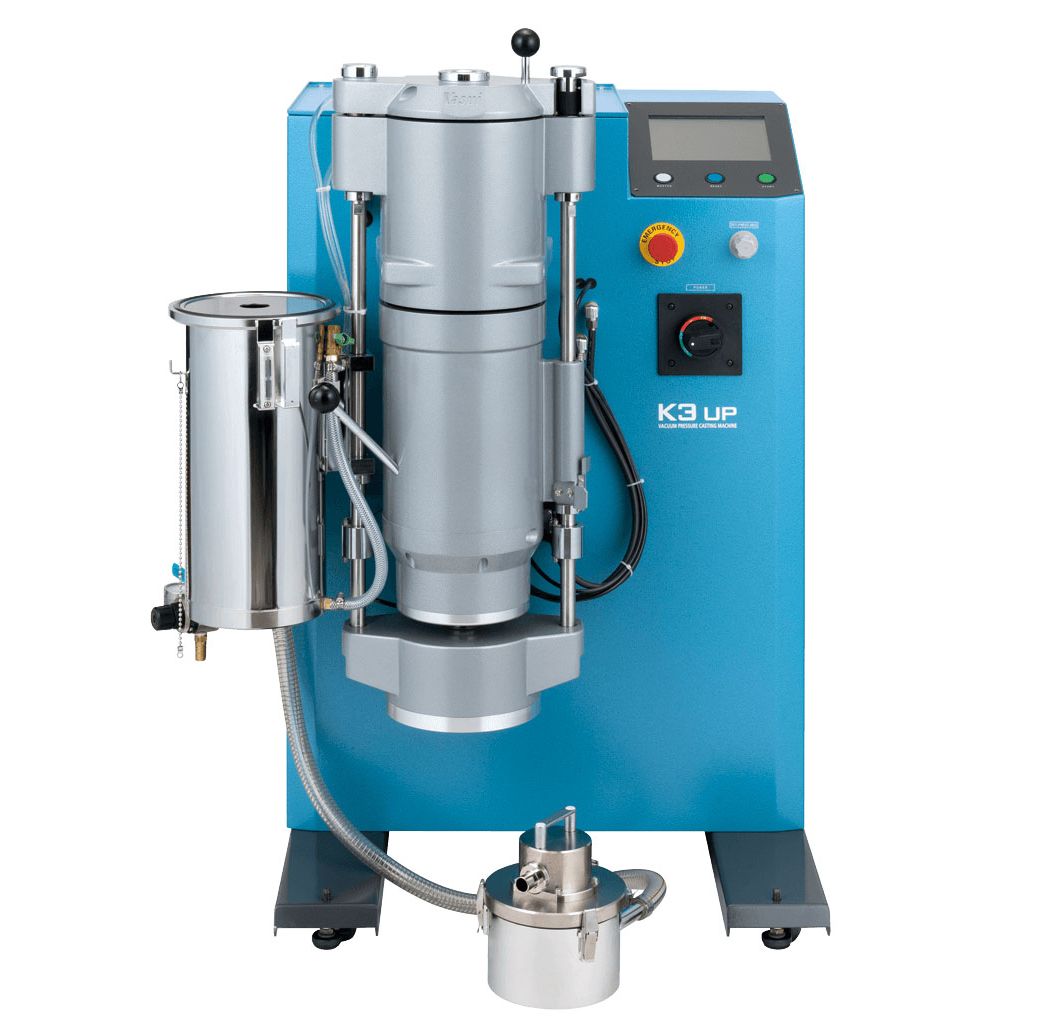

Specification	K3 UP	K2 NEXT 10KW
SKU#	79-300-K3UP	79-300-K210KW
Power Source	380 VAC +/- 10%, 50/60hZ 3-Phase, 5.5 KVA	380V +/-10%, 50/60Hz 3 phase, 6.5KVA (5KW) or 380V +/-10%
Oscillation Power	4kw	10kw
Uncrated Weight	185kg (407 lbs.)	190 kg (420 lbs.)
Uncrated Dimenions	29" L x 30" W x 48" H	29" L x 30" W x 48" H
Max Flask Size	Standard 125mm dia. x 230 mm(H) (5" dia. x 9" (H) inches)	Standard: 125mm dia.x 230mm (H) (5"dia. x 9"(h) inches) (Optional): 125mm dia. x 300mm(H) (5"dia. x 11.8"(h) inches)
Crucible Volume	90cc (0.9kg 18kt) Crucible P/n 79-303-K3	90cc (0.9kg 18kt) Crucible P/n 79-303-K3
Max Casting Amount	60cc (0.6kg 18kt)	150cc (1.5kg 18kt)
Standard Temperature	Standard 1200°C Optional R-Type 1450°C	Standard 1300°C R TYpe 1450 °C K Type 1200 °C
Max Pressure	0.3 MPa	0.3 MPa
Replacing Gas	Argon Gas 0.7MPa / Over 120 Liters per min.	Argon Gas 0.7MPa / Over 120 Liters per min.
Program Memory	100 Memories
Cooling Water	Tap water direct cooling system more than 3L/min, Average 50-60PSI and water Temp. 70-75°F	Tap water direct cooling system more than 3L/min, Average 50-60PSI and water Temp. 70-75°F
Casting Systems	Vacuum Pressure	Casting System
Alarm	Digital induction Auto diagnosis	Digital induction Auto diagnosis
Vacuum Pump	Minimum 11cfm/ minute	Minimum 11cfm/ minute
