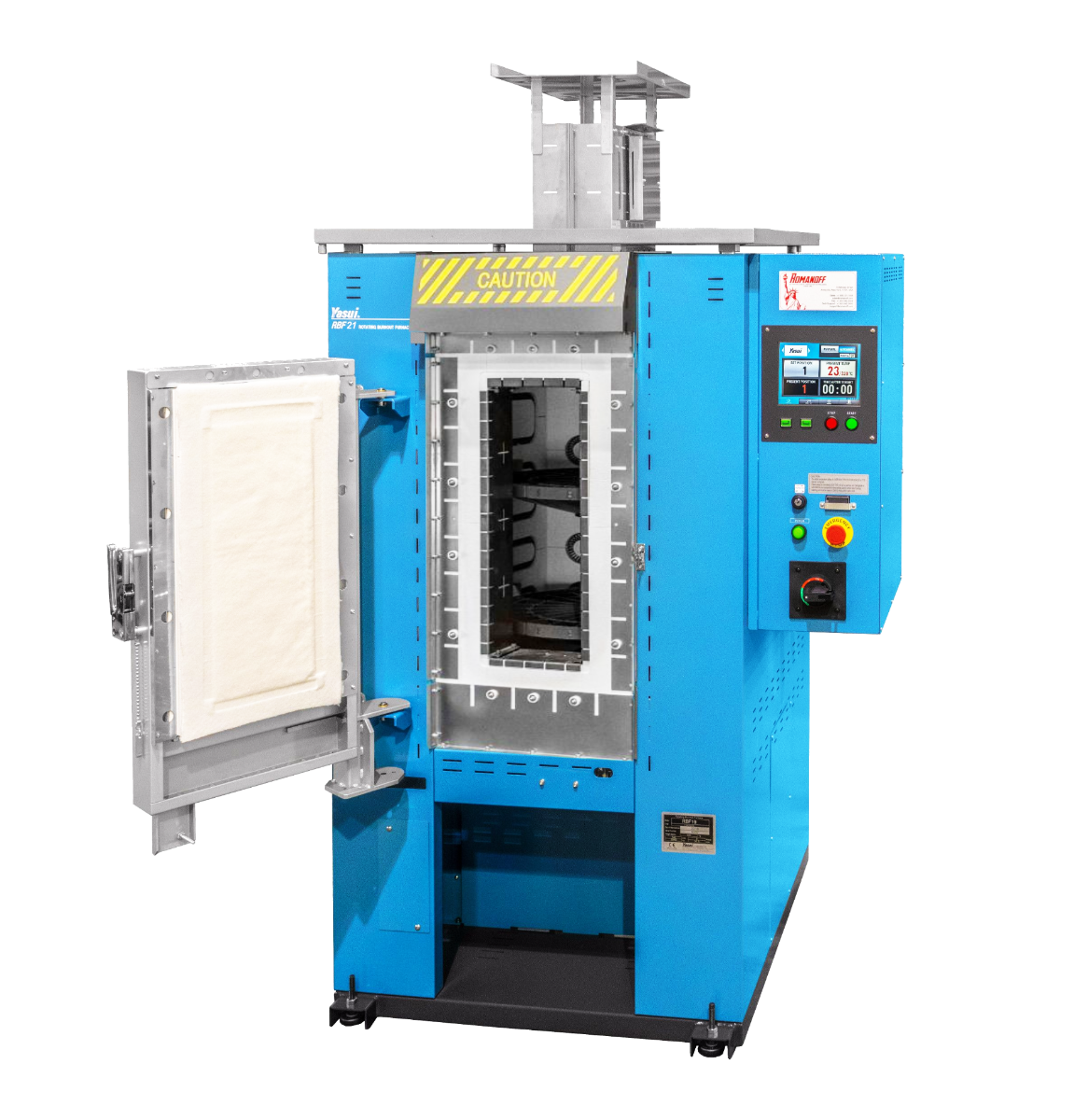

Yasui Rotating Burnout Furnace RBF21

Clean Burnout, Precise Control, Reliable Results

Yasui’s RBF Rotating Burnout Furnaces offer uniform heat transfer due to the upward convection of precise temperature-controlled air through its rotating shelves where the flasks are seated, resulting in a safe and clean burn-out.

Their Variable Power Heating System automatically maintains set temperatures throughout their burnout cycles with the utmost precision. Unlimited program slots with multiple ramps and holds, Yasui RBF’s allow you to create tailored burnout cycles for each of your casting application.

Key Features

• After Burner System: Virtually eliminates noxious smells and fumes associated with antiquated gas and tabletop electric furnaces, reaching up to temperatures above 2000 degrees Fahrenheit.

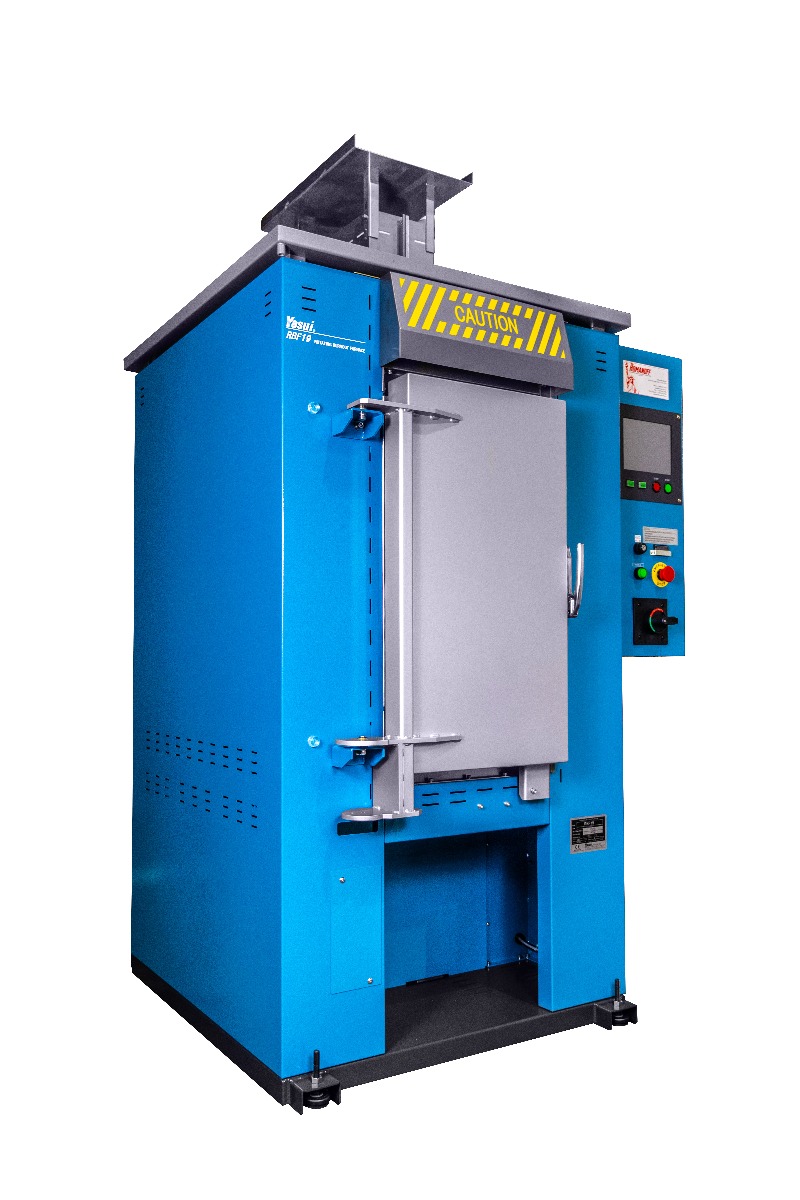

• Flask Recall System: Automatically bring forward the required flask that is typed into the control panel. Having a narrow door design will significantly reduce heat loss while the furnace door is open.

• Advanced Insulation System: Contains the heat associated with burnout cycles and still maintains an exterior surface temperature that is cool to the touch.

• Built-In Dewaxing Feature: Removes injection wax prior to ramping up the furnace temperatures.

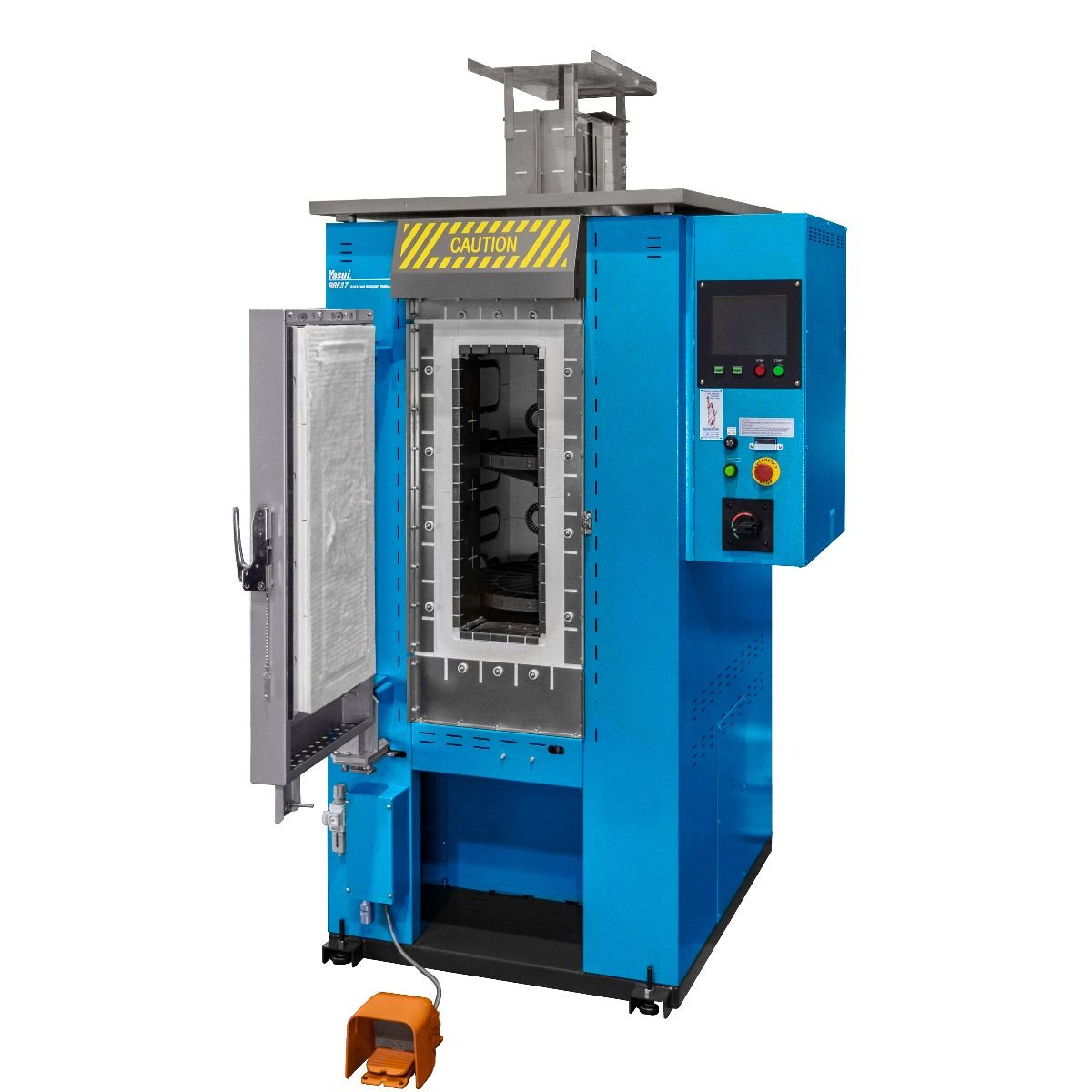

Specification	RBF 32/21	RBF37+
SKU #	77-021	77-014
Flasks Capacity (Without Flange)	21 ( 100 mm / Dia. 3.9") 32 (89 mm / Dia. 3.5") 41 (76 mm / Dia. 2.9")	37 (100mm / Dia. 3.9") 45 (89mm / Dia. 3.5")
Max Flask Height	300 mm (Upper table) (11.8" inches) 230 mm (Lower table) (9" inches)	230 mm (9"inches)
Power	220V, 50/60Hz, Three Phase 18 kVA	380V, 50/60Hz, Three Phase 25.6 kVA
Burnout Temp.	Max. 950°C (200°C - 950°C 19 minutes)	Max. 850°C
Thermo sensor display accuracy	Within±5 degrees Celsius in the range of 100 - 950 degrees Celsius	within +/-10 deg.C for 0 to 1000 deg.C
Temperature control of afterburner accuracy	Within±3 degrees Celsius (at stable condition of setting temp.650c)	Within 650 +/- 3 deg.C (at stable condition)
Temperature control of main furnace accuracy	Within±3 degrees Celsius (at stable condition in the range of 100 - 950 degrees Celsius)	within set temperature +/- 2 deg.C(at stable condition in the range of 100 to 850 deg.C)
Turntable Dia	15.8" x 2 Tables	21.8" x 2 Tables
Step numbers	8 steps (S1 - S8)	8 steps (MAX)
Memory numbers	20 memories	20 memories
Power failure detecting time	Over 5 minutes (shorter time than this will be handled as a 'short break’)	Over 5 minutes (shorter time than this will be handled as a 'short break’)
Dimensions: (With After Burner & Control Box) Wx D x H	960 x 872x 2048mm (37.7" L x 34.3" W x 80.6" H inches )	1125 x 1073 x 2176 mm (44.2 x 44.2 x 85.6" inches)
Uncrated Machine Weight	310kg ( 683 lbs)	460kg ( 1014 lbs)
Applications	Gold, Platinum & Stainless Steel	Gold
