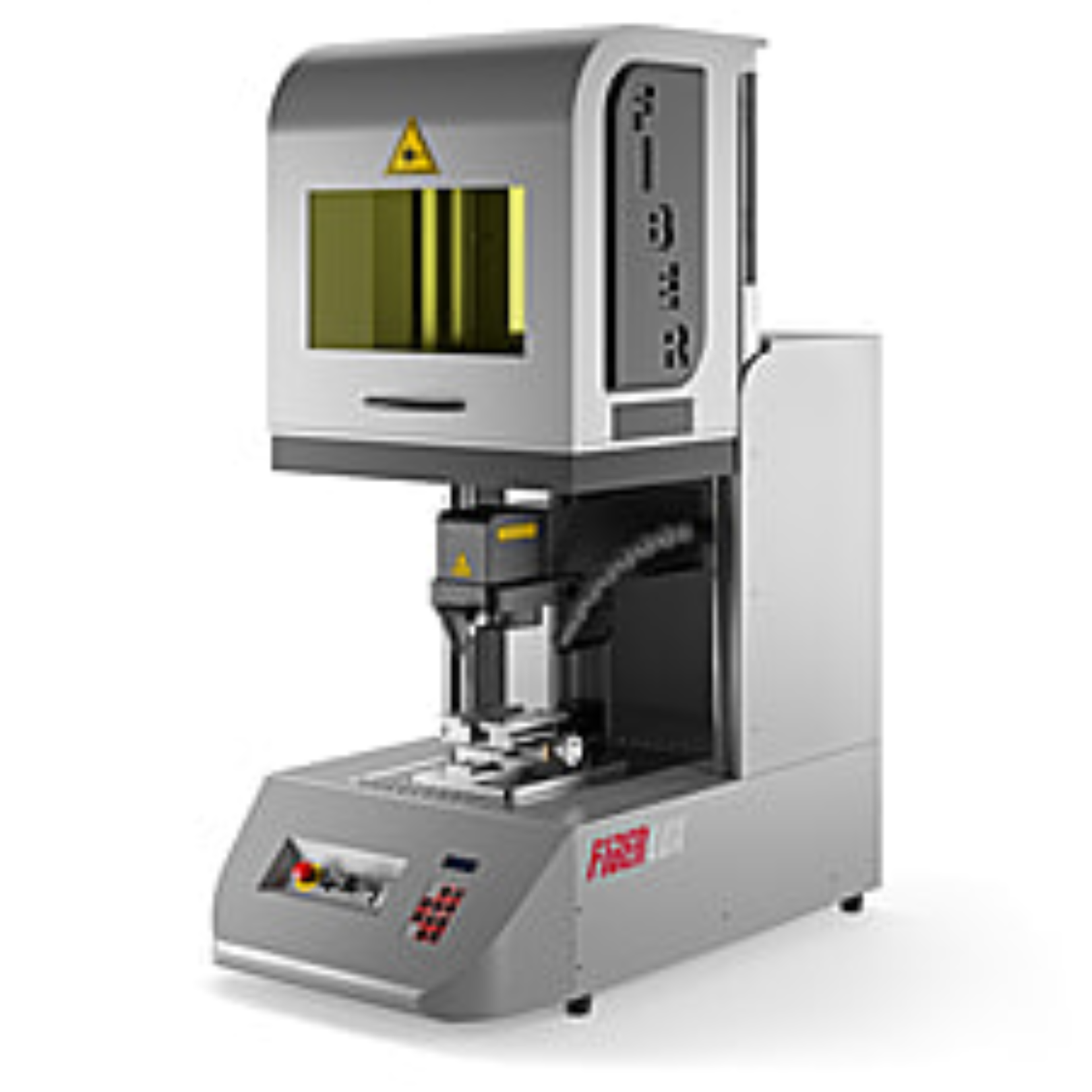

ElettroLaser FiberLux Pro Laser Engraver

Our commitment to improving and studying Laser technology has allowed us to put on the market one of the best engraving and laser cutting machine.

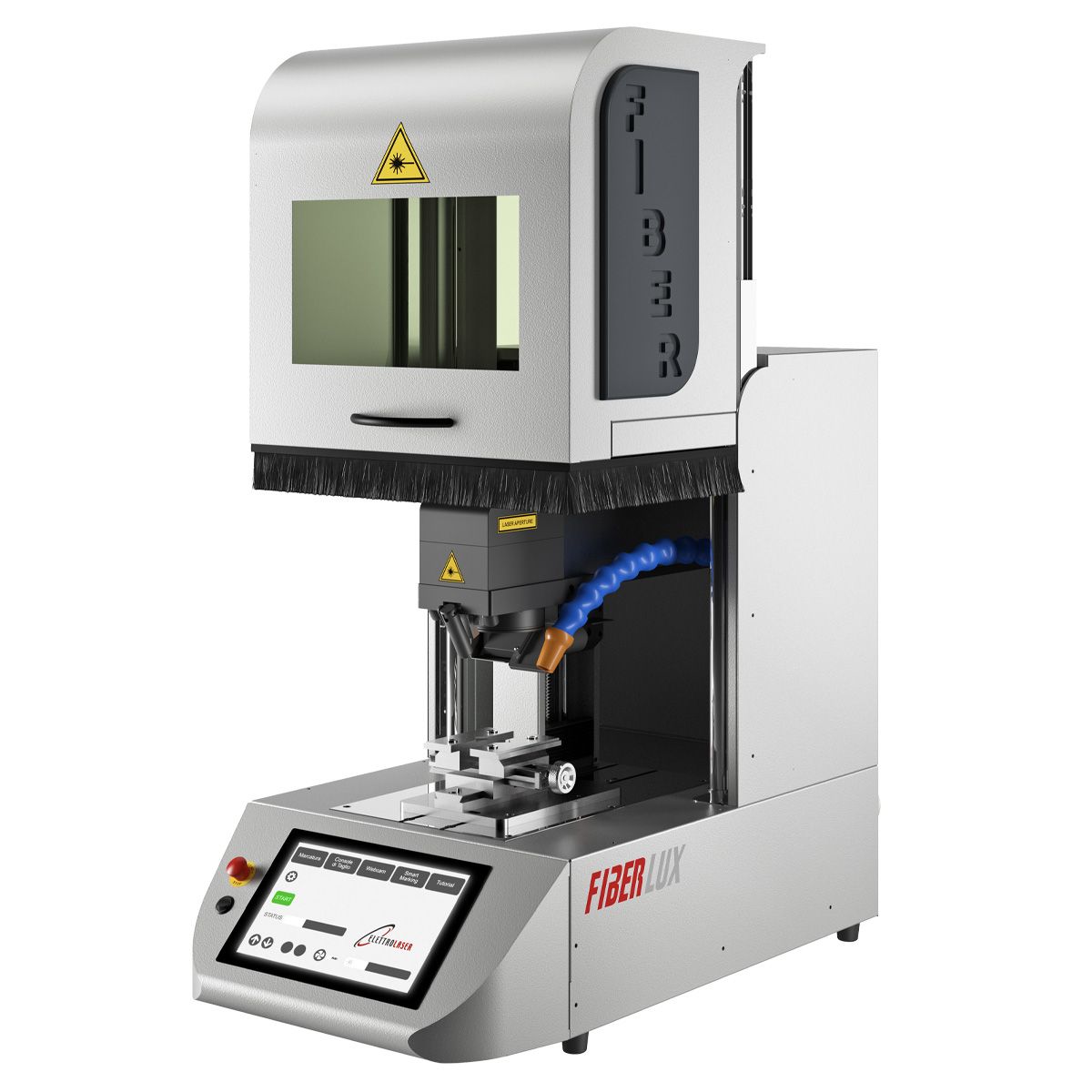

The FiberLUX PRO, is the top of the Elettrolaser range in terms of processing quality, speed and cutting force. It integrates all the advanced features of the FiberLUX line, offering today a range of powers, from 20 W to 100 W, able to cover all production and industrial needs, even the most intense, from the gold industry to the modern industrial sector.

It allows to engrave objects of any metal (gold, silver, steel etc.), in particular logos, brands, photo-engraving, texts, graphic designs, 3D bas-reliefs and, using the high precision rotary axis system, the inside and the outside of rings (this one provided as an accessory).
With a maximum marking area of 160x160 mm and with resolutions up to 20 μm.

It is equipped with the innovative "user-friendly" focusing system with overlapping pointers, through the motorized adjustment of the "Z" axis, moreover with this model you have the possibility to install the "automatic drag and clamp" and a camera inside the Laser chamber for the working area, this for an optimization of the processing or for any remote assistance.

This version also features a novelty, the dual management of the machine via PC and the touch screen console on the front, which allows the use of the marker without the use of the computer.

The machine is supplied complete with SOFTWARE, easy and intuitive, capable of importing files from the most well-known computer-design programs currently in existence (svg, dxf, bmp, plt, jpg, dwg, etc.).

The PRO line is provided with included the software for trademarks with which it is possible to affix the title based on the new reference protocol for the laser marking of precious metals and proceed to electronic punching through a simple USB token.

• X & Y clamp, for fixing and positioning the pieces;
• Rotary axis system (for engraving inside and outside the rings and more);
• Internal camera;
• Automatic drag & clam (for production in series);
• Dust aspirator, to optimize the cleaning of the machine and the work area (available in 2 models, one ideal for small production and one ideal for intensive production);
• NEWS 2019: The new advanced auto-detection system of the parts to be marked can be integrated as an option. Thanks to an advanced multidimensional scanner, the exact positions of the pieces will be acquired in the space, allowing the marking software to realize the work without the necessary orientation of the same in the working area.

MADE IN ITALY.

Jewelry Laser Welder

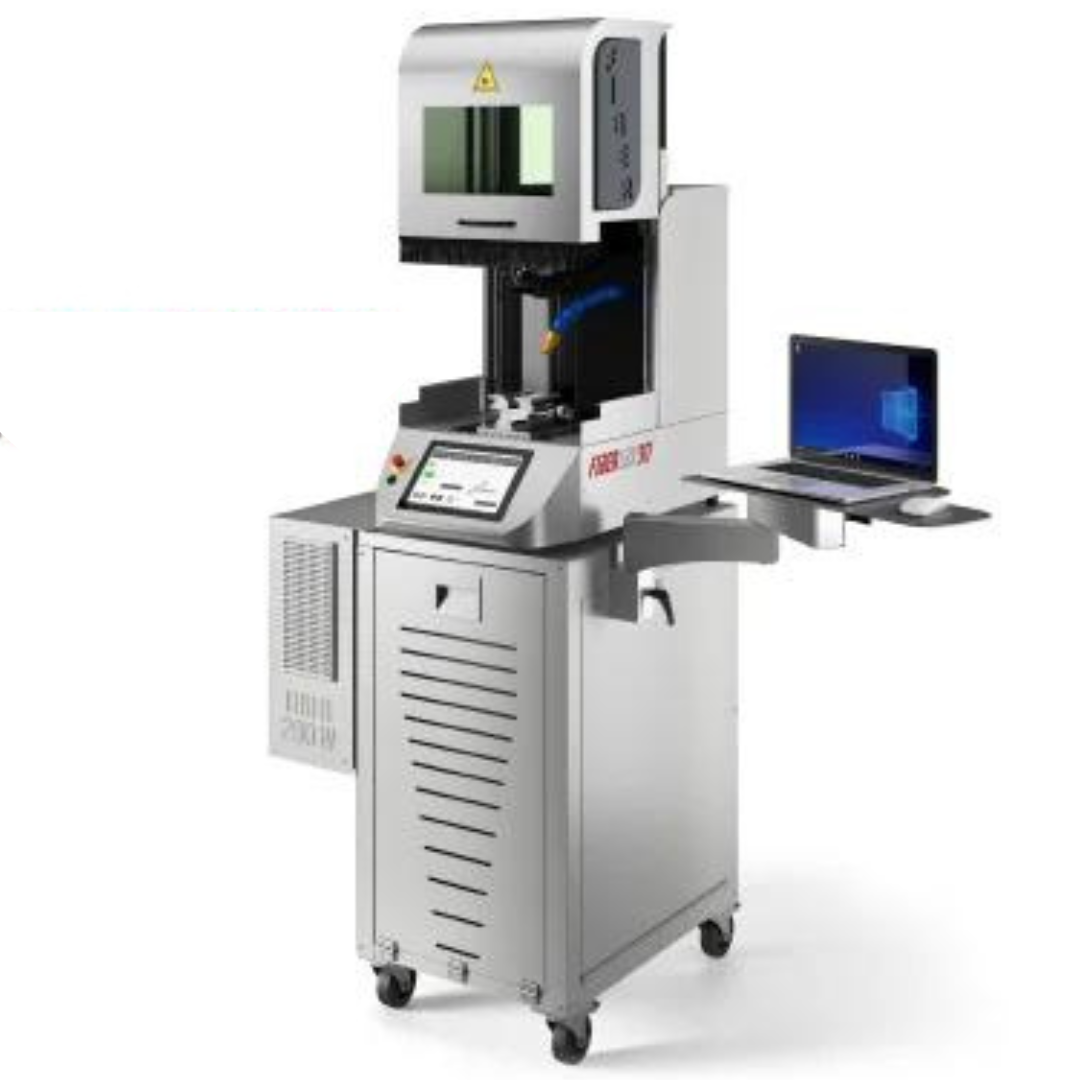

	Fiberlux Nano	Fiberlux EL (Demo)	Fiberlux Pro	Fiberlux Pro 200	FiberLUX 3D
SKU #	RE-3000	RE-1050	PRO-LASER-ENGRAVER	RE-4200	3D-LASER-ENGRAVER
OUTPUT POWER	30W	50W	70W, 100W & 200W	200W	20-100W
WAVE LENGHT	1064 nm	1064 nm	1064 nm		1064 nm
M2	< 1.8		< 1.6	< 1.4	< 1.6
POWER SUPPLY	230 V 50/60 Hz (opt. 110 on request) - 1 kW
WORK SPACE DIM. (LXDXH)	250x250x350 mm (9.8" x 9.8" x 12.2"inches)
WEIGHT	35 kg (77 lbs.)	55 kg (121 lbs.)	55-60kg (121-132 lbs.)	130 kg (286 lbs.)	55-60kg (121-132 lbs.)
FOCAL 100: AREA / SPOT	60x60 mm / 16 um
FOCAL 160: AREA / SPOT	100x100 mm / 26 um		110x110 mm / 26 um
FOCAL 210: MARKING AREA / SPOT	N/A		160x160 mm / 34 um		N/A
SPEED OF GALVO HEAD	5000 mm/s	7000 mm/s	up to 7000 m/s		6000 mm/s
MAX PULSE ENERGY	up to 1 mJ		up to 1.5 mJ
MAX FREQUENCY	60 kHz	100 kHz	1000 kHz	400 kHz	1000 kHz
COOLING SYSTEM	Air Cooled
PULSE DURATION	100 ns at 20 kHz	120 ns at 20 kHz	10 to 200 ns	30 to 100 ns	10 to 200 ns
LASER CLASS	IV	IV / I (no for lite version)		IV / I
FOCUS RANGE IN Z-XIS WITH 100 MM FOCAL LENSE	N/A				10 mm
FOCUS RANGE IN Z-XIS WITH 160 MM FOCAL LENSE	N/A				35 mm

MADE IN ITALY.
