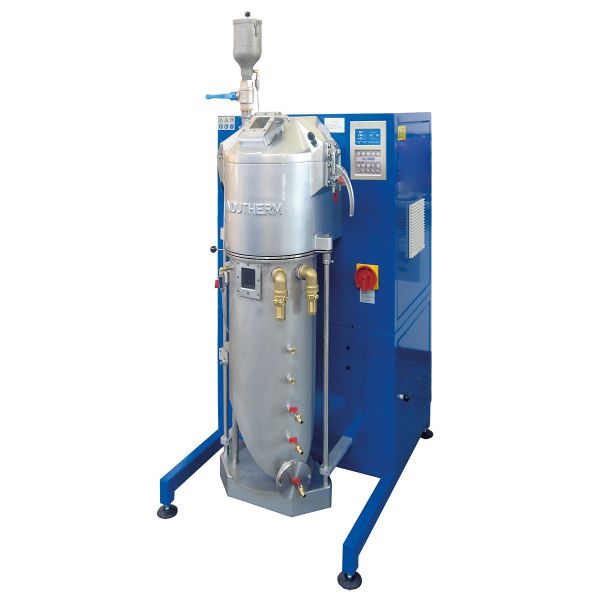

Indutherm GU-500 Series Granulating Machine - VC
SKU
78-4600
Link Copied to Clipboard
$0.00
| GU500 | |
|---|---|
|
Brand |
Indutherm |
| Power : |
10 kW / 3x400V 50A, 50/60Hz |
| Temp Max : | 1600°C |
| Crucible Volume : |
245-386ccm ~ 3.6-5.7kg Gold |
| Machine Dimension (WxDxH) |
500mm x 1400mm x 820mm |
| Machine Net Weight : | 220kg |
Priced individually
Categories: Casting Equipment, Indutherm, Granulating Machines, Granulators
Solutions for Granulation
- For frequent or permanent production of granules, our GU series shotmakers will be the first choice
- If you only want to produce granules occasionally, the addition of vacuum pressure or a continuous casting machine with a granulating tank is a good alternative
- For the production of micro granules, we recommend our GU500 micro
The Granulating Machines - GU500, GU1000, GU3000, and GU12000
These shotmakers are developed especially for granulating bullions, sheet metal, or casting residues into proper grains. The granulating tanks are very easy to remove for cleaning. The GU machines are available with crucible sizes from 245ccm, up to 12,000ccm.Major applications
- Preparation of alloys out of gold and master alloy
- Preparation of alloy components
- Preparation of alloys from components
- Cleaning up of already casted metal
The Micro Shot Systems GU500 micro, GU1000 micro, and GU5000 micro
The GU micro-series was developed for the production of micro granules with a grain size of between 0.1mm and 1mm. The systems are based on the Indutherm granulation units, but all key components, particularly the jet system, are special developments. The main areas of application for the micro-granules are in metal laser sintering processes, in jewelry surface design, and in soldering technology.The Granulating Tank for casting machines in the VC and CC series
The optional equipment of vacuum pressure or a continuous casting machine with a granulating tank is a suitable solution for occasional granulating. Granulating tanks are available for all machines in the VC series from VC400 up to the VC12000 and all CC machines.The main advantages of the new generations of shotmaker
- Easy installation of the granulating tank
- Fast-changing between casting process and granulating
- Ergonomically and perfectly balanced design for safe and easy handling
- Optimized streaming behavior of the cooling water
- Reliable separation of water and granules
* This item requires shipment by freight truck. A customer service representative will contact you about your order. *
 |
 |
|
|
|
|---|---|---|---|---|
| Specification | GU500 | GU1000 | GU3000 | GU12000 |
| Temp max. | 1600° C | 1600° C | 1500° C | 1600° C |
| Power max. / electrical connection | 10 kW / 3x400V 50A, 50/60Hz | 25 kW / 3x400V 32A, 50/60Hz | 25 kW / 3x400V 32A, 50/60Hz | 40 kW / 3x400V 63A, 50/60Hz |
| Temp Measurement |
Up to 1300°C N Type or 1600°C S Type Thermocouple | Up to 1200°C N Type or 1600°C S Type Thermocouple | Up to 1300°C N Type or 1500°C S Type Thermocouple | Up to 1600°C B Type Thermocouple |
| Crucible Volume | 245-386ccm ~ 3.6-5.7kg Gold | 1500ccm = 22kg Gold 18ct | 3400ccm = 51kg Gold 18ct, 30kg Silver | 12000ccm = 180kg Gold 18ct |
| Flask | Max. Dia. 130mm / 260mm H | - - - | - - - | - - - |
| Supply: Inert Gas Argon or Nitrogen | Yes - At 1.5 to 2.0 Bar Pressure | Yes - At 3.0 Bar Pressure | Yes - At 3.0 Bar Pressure | Yes - At 3.0 Bar Pressure |
| Cooling Water Supply | 2.5-6 Bar/ At Least 200l/h | 2.5-6 Bar/ At Least 300l/h | 2.5-6 Bar/ At Least 300l/h | 2.5-6 Bar/ At Least 300l/h |
| Vacuum (Optional) | 0-20 Mbar Max., At Least 21m³/h | 0-20 Mbar Absolute, At Least 21m³/h | 0-20 Mbar Absolute, At Least 21m³/h | 0-20 Mbar Absolute, At Least 21m³/h |
| Net Machine Weight | 120kg | 220kg | 300kg | 590kg |
| Machine Dimension(WxDxH) | 500mm x 1400mm x 820mm | 700mm x 1000mm x 1450mm | 800mm x 1100mm x 1450mm | 1250mm x 1000mm x 1450mm |
| Packing Qty | Priced individually |
|---|---|
| OEM Parts | Yes |
