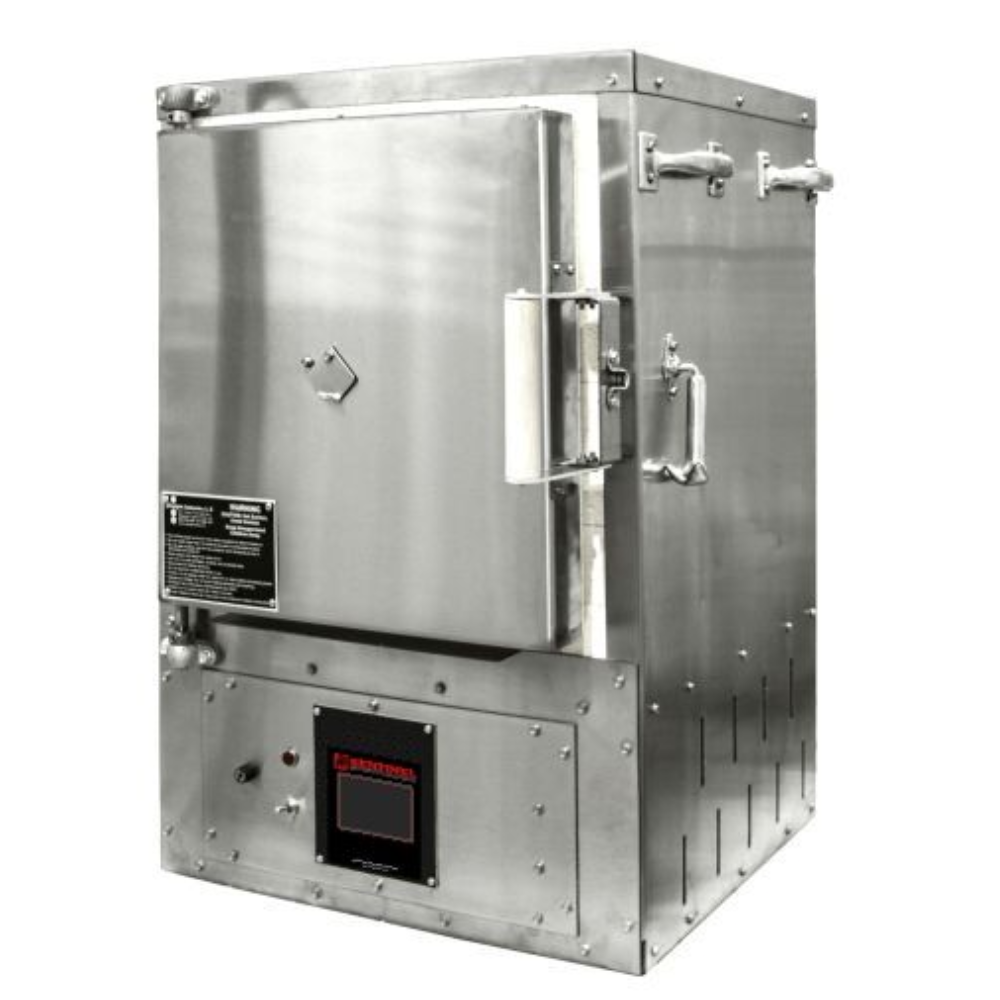

Large-scale, programmable oven used to remove wax from molds and cure investment material.
Product Manual
This heavy-duty burnout furnace features a 14 inch interior dimension, providing ample space for several medium-sized flasks or one very large production flask. It is equipped with a sophisticated digital controller that allows for the programming of multi-stage burnout cycles, ensuring the gradual and complete removal of wax and moisture. The high-quality heating elements and thick insulation provide excellent thermal stability and energy efficiency, which are critical for preventing flask shock and ensuring high-quality casting surfaces. This furnace is a workhorse for any professional jewelry studio that values precision and reliability in their burnout process.
| Specifications | |
|---|---|
| Brand | Paragon |
| Country of Origin | USA |
| Voltage | 220 V, Single-Phase |
| Max Temperature | 2000°F (1093°C) |
| Amps | 17 |
| Flask Capacity | 8 ea (4 x 6 in Perforated Flasks w. Ring) |
| Watts | 3430 W |
| Outside Dimensions | 19" x 22" x 27" |
| Inside Dimensions | 14" x 14" x 14" |
| Machine Weight | 215 lbs |
| Shipping Weight | 236.5 lbs |
| Shipping Dimensions (L x W x H) | 42 x 48 x 36 " pallet |
