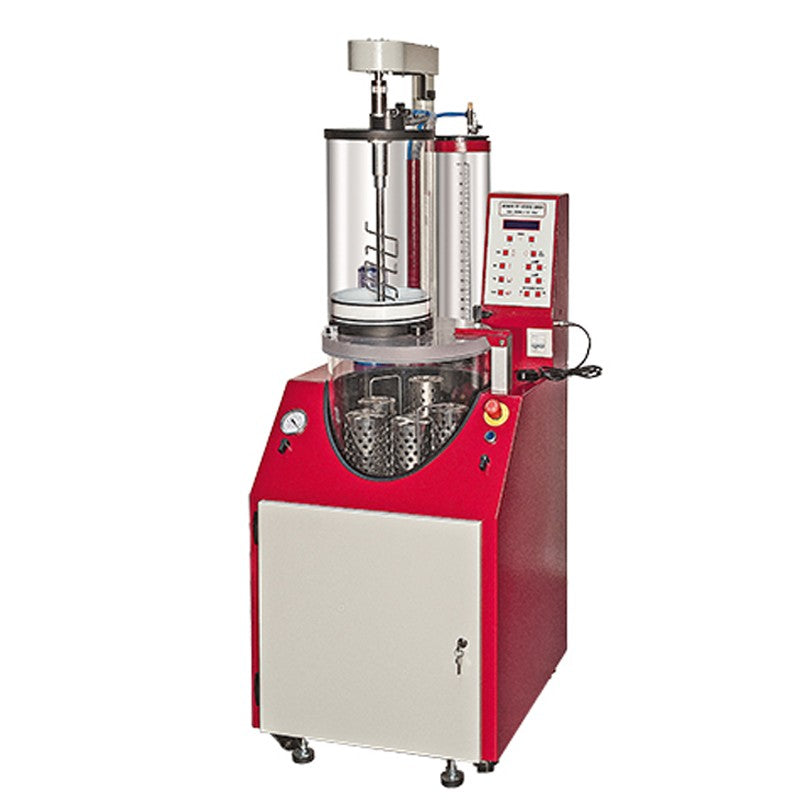

The CIMO St. Louis 2000 XL 14 kg vacuum investment mixing machine is used to mix large batches of investment material under vacuum, producing uniform, air-free slurries for mold preparation. Its high-capacity design supports demanding production environments where consistent investment quality and reduced defects are mission-critical.
Product Brochure
| Model | Powder Load | Flask # | Flask Size (H x D) | Vacuum Pump |
|---|---|---|---|---|
| St. Louis Mini Mixer SKU: 76-113-MINI | 1 Kg (2.2 lbs) |
Single | 120 x 100 mm (4.7 x 4 in) |
No |
| ST. LOUIS 92-4 KG SKU: 76-113-4KG-P | 4 kg (8.8 lbs.) |
Single | 200 x 150 mm (7.8 x 5.9 in) |
No |
| ST. LOUIS #82 SKU: 76-115 | 6 kg (13.2 lbs.) |
Multiple | 200 x 280 mm (7.87 x 11.0 in) |
No |
| ST. LOUIS 82-PT SKU: 76-115-P | 6 Kg Au / 3 Kg Pt (13.2 lbs/6.6 lbs) |
Multiple | 200 x 280 mm (7.87 x 11.0 in) |
Yes |
| ST. LOUIS 2000 - 14XL SKU: 76-114-14XL | 14 kg (30 lbs.) |
Multiple | 350 x 330 mm (13.7 x 13 in) |
Yes |
| ST. LOUIS 2002 - XXL SKU: 76-130 | 14 kg (30 lbs.) |
Multiple | 350 x 330 mm (13.7 x 13 in) |
Yes |
| ST. LOUIS 2000-22 XXL SKU: 76-131 | 22 kg (8.5 lbs.) |
Multiple | 400 x 450 mm (15.7 x 17.7 in) |
Yes |
St. Louis 2000 XL: 14 kg High-Capacity Semi-Automatic Mixer
The St. Louis 2000 XL is a high-capacity investment mixer engineered for industrial production environments that demand uniformity and speed. With a 14 kg powder limit, this system is designed to process large numbers of flasks in a single cycle while maintaining the highest metallurgical standards. By integrating mixing and pouring within a controlled vacuum environment, the 2000 XL eliminates the need for separate vacuuming operations, acting as a massive real-time saver and significantly reducing casting rejects.
Patented Vacuum Blending
The core of the St. Louis system is its ability to blend investment for fusion while completely eliminating the presence of gas and air bubbles.
- Complete De-Gassing: The only patented system that ensures 100% de-gassing of the investment slurry before it ever reaches the flask.
- Adjustable Speed Mixing: Features a variable speed motor, allowing you to select the optimal rotational speed for any type of investment compound.
- Timer Memorization: Program and save your specific mixing times to ensure consistent results across every production batch.
- Simultaneous Vibration: An adjustable vibration table under the flasks ensures a high-density fill, capturing every fine detail of the model.
Safe & Productive Workspace
This heavy-duty unit is designed to protect both the operator and the environment while streamlining the casting floor.
- Sealed Dust Protection: The fully enclosed system prevents toxic silica dust from entering the atmosphere, creating a safer environment for the entire staff.
- Multi-Flask Efficiency: Designed to fill multiple flasks in each single preparation process, maximizing your hourly throughput.
- Customizable Height: On special request, a version is available to accommodate flask heights up to 250 mm.
- User-Friendly Interface: Despite its industrial capacity, any operator can be trained for full production in just a few minutes.
The 2000 XL Workflow
Operation is intuitive: place your flasks in the enclosed lower chamber and measure your investment and water into the mixing chamber. Once the mixing chamber is closed and vacuum is achieved, start the adjustable speed mixer and set your timer. To pour, simply position the flask under the valve, apply vacuum to the lower chamber, and open the flow. With the vibration table active, you ensure a bubble-free, professional-grade investment every time.
Coast to Coast Support: Backed by Romanoff International’s extensive technical network, ensuring your high-production casting line remains operational with expert service and training across the country.
| Specifications | |
|---|---|
| Brand | CIMO |
| Country of Origin | Italy |
| Name | ST. LOUIS |
| Model | 2000 - 14XL |
| Powder Capacity | 14 kg (30 lbs.) |
| Investing Flask | Multiple |
| Voltage | 220 V |
| Flask Size (H x D) Height & Diam. | 350 x 330 mm (13.7 x 13 in) |
| Machine Power | 2200 W |
| Uncrated Size | 62 x 66 x 172 cm (24.4 x 26 x 67.7) inches |
| Weight | 267 kg (588.6 lbs) [Crated] 210 kg (463 lbs) [Uncrated] |
