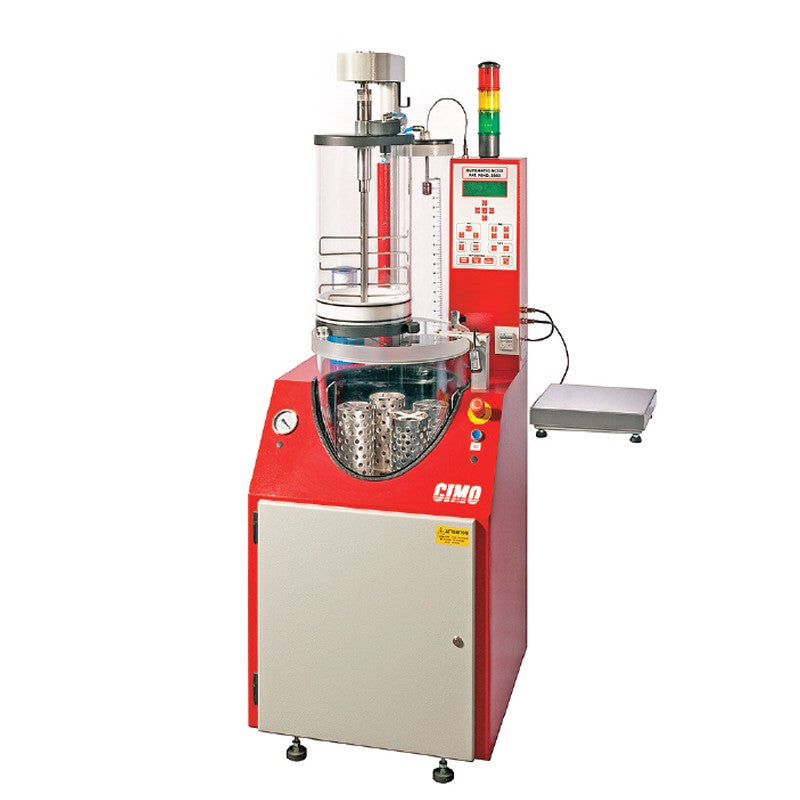

The CIMO St. Louis 2002 XXL 14 kg automatic vacuum investment mixing machine is used to mix large batches of investment material under vacuum with automatic cycle control, producing uniform, air-free slurries for mold preparation in high-volume casting environments. Its automatic operation and heavy-duty design support consistent results with reduced operator intervention.
Product Brochure
| Model | Powder Load | Flask # | Flask Size (H x D) | Vacuum Pump |
|---|---|---|---|---|
| St. Louis Mini Mixer SKU: 76-113-MINI | 1 Kg (2.2 lbs) |
Single | 120 x 100 mm (4.7 x 4 in) |
No |
| ST. LOUIS 92-4 KG SKU: 76-113-4KG-P | 4 kg (8.8 lbs.) |
Single | 200 x 150 mm (7.8 x 5.9 in) |
No |
| ST. LOUIS #82 SKU: 76-115 | 6 kg (13.2 lbs.) |
Multiple | 200 x 280 mm (7.87 x 11.0 in) |
No |
| ST. LOUIS 82-PT SKU: 76-115-P | 6 Kg Au / 3 Kg Pt (13.2 lbs/6.6 lbs) |
Multiple | 200 x 280 mm (7.87 x 11.0 in) |
Yes |
| ST. LOUIS 2000 - 14XL SKU: 76-114-14XL | 14 kg (30 lbs.) |
Multiple | 350 x 330 mm (13.7 x 13 in) |
Yes |
| ST. LOUIS 2002 - XXL SKU: 76-130 | 14 kg (30 lbs.) |
Multiple | 350 x 330 mm (13.7 x 13 in) |
Yes |
| ST. LOUIS 2000-22 XXL SKU: 76-131 | 22 kg (8.5 lbs.) |
Multiple | 400 x 450 mm (15.7 x 17.7 in) |
Yes |
St. Louis 2002 XXL: Fully Automatic 14 kg Industrial Mixer
The St. Louis 2002 XXL represents the pinnacle of automated investment mixing, engineered to eliminate the manual variables that lead to casting rejects. This fully automatic 14 kg investment mixer manages the entire mixing cycle, significantly reducing labor and ensuring perfect investment every time. By consolidating mixing, pouring, and vacuuming into a single, user-friendly operation, the 2002 XXL acts as a high-performance solution for high-volume production environments, producing consistently bubble-free, high-density castings.
8-Step Programmable Precision
Take total control of your investing cycle with a computer-driven process that ensures every batch meets your exact specifications.
- Automatic Ratio Management: The built-in digital scale automatically inputs powder weight into the computer, which then calculates and adds the precise amount of water needed.
- Temperature-Controlled Water: The internal water tank fills automatically and maintains the optimal temperature for consistent chemical reactions and setting times.
- 8 Programmable Stages: Customize every detail of the 8-step process, including vacuum pressure, vibration intensity, mixing speeds, and blade rotation.
- User-Friendly Operation: Designed for rapid implementation, allowing staff to be fully trained on the automated interface in just a few minutes.
Advanced Patented Technology
Built for heavy-duty daily use, the St. Louis system focuses on metallurgical integrity and a clean-room workshop atmosphere.
- Complete De-Gassing: Our patented vacuum blending system eliminates gas presence and ensures 100% de-gassing of the investment slurry for perfect fusion.
- Sealed Dust Protection: The enclosed system prevents the release of toxic silica dust into the atmosphere, protecting the health of the operator and surrounding staff.
- Automatic Cleaning: After the flasks are removed, the unit executes a dedicated cleaning cycle to ensure the mixing chamber remains clear of hardened slurry.
- Heavy-Duty Reliability: Capable of filling multiple flasks simultaneously under constant vacuum pressure and vibration.
The Fully Automatic Workflow
The St. Louis 2002 XXL streamlines the most critical part of the casting process. After placing flasks in the enclosed lower chamber, the machine handles the weight measurement, water addition, and mixing cycle automatically based on your programmed settings. During the mixing phase, an automatic vacuum maintains consistent pressure for a flawless slurry. Once the cycle is complete, the operator manually pours the slurry into each flask while the machine provides simultaneous vacuum and vibration. This process ensures the highest quality results with a minimum of labor and oversight.
Coast to Coast Support: Backed by Romanoff International’s extensive technical network, ensuring your high-production casting line remains operational with expert service and training across the country.
| Specifications | |
|---|---|
| Brand | CIMO |
| Country of Origin | Italy |
| Name | ST. LOUIS |
| Model | 2002 -XXL |
| Powder Capacity | 14 kg (30 lbs) |
| Investing Flask | Multiple |
| Voltage | 220 V |
| Flask Size(H x ) | 350 x 330 mm (13.7 x 13 in) |
| Machine Power | 2200 W |
| Uncrated Size | 62 x 66 x 172 cm (24.4 x 26 x 67.7 in) |
| Crated Unit Weight | 267 kg (588.6 lbs) |
| Uncrated Weight | 210 kg (463 lbs) |
