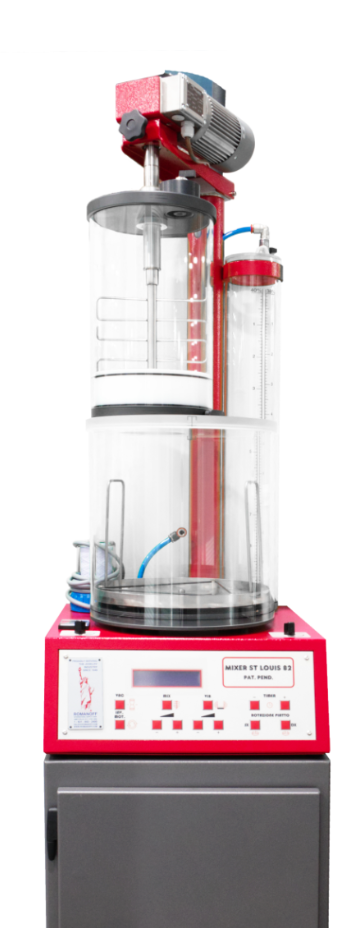

The CIMO St. Louis #82 6 kg vacuum investment mixing machine is used to mix and pour investment material under vacuum, producing uniform, air-free mixes for mold preparation. Its 6 kg capacity and robust construction support larger batches and demanding casting workflows.
Product Manual
| Model | Powder Load | Flask # | Flask Size (H x D) | Vacuum Pump |
|---|---|---|---|---|
| St. Louis Mini Mixer SKU: 76-113-MINI | 1 Kg (2.2 lbs) |
Single | 120 x 100 mm (4.7 x 4 in) |
No |
| ST. LOUIS 92-4 KG SKU: 76-113-4KG-P | 4 kg (8.8 lbs.) |
Single | 200 x 150 mm (7.8 x 5.9 in) |
No |
| ST. LOUIS #82 SKU: 76-115 | 6 kg (13.2 lbs.) |
Multiple | 200 x 280 mm (7.87 x 11.0 in) |
No |
| ST. LOUIS 82-PT SKU: 76-115-P | 6 Kg Au / 3 Kg Pt (13.2 lbs/6.6 lbs) |
Multiple | 200 x 280 mm (7.87 x 11.0 in) |
Yes |
| ST. LOUIS 2000 - 14XL SKU: 76-114-14XL | 14 kg (30 lbs.) |
Multiple | 350 x 330 mm (13.7 x 13 in) |
Yes |
| ST. LOUIS 2002 - XXL SKU: 76-130 | 14 kg (30 lbs.) |
Multiple | 350 x 330 mm (13.7 x 13 in) |
Yes |
| ST. LOUIS 2000-22 XXL SKU: 76-131 | 22 kg (8.5 lbs.) |
Multiple | 400 x 450 mm (15.7 x 17.7 in) |
Yes |
St. Louis #82: Professional Vacuum Investing System
The St. Louis #82 is a professional-grade vacuum investment system designed for the high-detail requirements of gold casting. This Italian-made unit is engineered to eliminate the manual variables that cause surface defects, allowing you to mix and pour up to 18 flasks per hour within a fully controlled vacuum environment. By consolidating mixing, pouring, and de-gassing into a single workstation, the #82 acts as a high-performance solution for busy studios, producing consistently bubble-free, high-density castings.
Controlled Vacuum Performance
The core advantage of the St. Louis system is the ability to maintain a deep vacuum throughout the entire cycle, preventing air entrapment before the slurry even hits the flask.
- Integrated Vacuum Pump: This unit comes equipped with a high-performance vacuum pump, specifically calibrated to reach deep vacuum levels instantly for optimal de-gassing.
- Two-Speed Mixing: Features a versatile two-speed motor and integrated timer to ensure the perfect slurry consistency for every batch of gold investment.
- Simultaneous Vibration: An integrated vibration table under the flasks ensures the investment settles perfectly into every fine detail of your models.
- Reduced Reject Rates: By eliminating air exposure during the pour, you virtually eliminate the surface porosity and bubbles common in separate operations.
Streamlined Workflow
Designed for simplicity, the user-friendly interface allows any operator to be trained for professional production in just a few minutes.
- All-in-One Operation: Eliminates the need for separate mixing bowls, pouring stations, and vacuum chambers, saving significant bench space and labor.
- Enclosed Drum Design: Flasks are positioned in a secure, enclosed drum directly beneath the mixing blades for a direct-pour vacuum seal.
- Electronic Alignment: Easily rotate the internal table to align each flask perfectly under the pouring valve for rapid, multi-flask processing.
- Visual Monitoring: The enclosed see-through mixing chamber allows for total quality control and surveillance of the investment slurry.
Technical Specifications
Coast to Coast Support: Backed by Romanoff International’s extensive technical network, ensuring your high-production casting line remains operational with expert service and training across the country.
| Specifications | |
|---|---|
| Brand | CIMO |
| Country of Origin | Italy |
| Name | ST. LOUIS 82-PT |
| Model | 92 Platinum and Gold Investment |
| Powder Capacity | 6 Kg Au / 3 Kg Pt (13.2 lbs / 6.6 lbs) |
| Investing Flask | Multiple |
| Voltage | 220V |
| Flask Size Height & Diam. | 200 mm (H) x 280 mm (Diam.) (7.87" x 11.0") |
| Motor Power | 280w |
| Uncrated Size | 42 x 42 x 175 cm (16.5" x 6.5" x 68.8") |
| Crated Unit Weight | 125 kg (275.5 lbs.) |
| Uncrated Weight | 98 kg 216.0 lbs. |
