This high-power welding station combines raw force with the surgical accuracy of a premium Leica lens system. By pairing a 0.1 mm smooth spot with world-class optics, you gain total control over the smallest prongs and the most delicate filigree. Comes equipped with advanced laser welder with 3D vision support.
Product Manual
Product Brochure
| Model | MS 3.5 | MASTER 4.0 | MEGA 6.0 | MEGA 9.0 | ||
|---|---|---|---|---|---|---|
| SKU | LZ-1030 | LZ-1035 | LZ-10135 | LZ-10130 | LZ-6015 | LZ-6020 |
| Max Energy | 35 J | 80 J | 165 J | 225 J | 255 J | 300 J |
| Lens Type | Standard | Premium Leica | ||||
| Impulse Time | 0.1 to 12 ms | 0.1 to 25 ms | 0.1 to 20 ms | |||
| Spot Diameter | 0.2 to 2 mm | 0.1 to 2 mm (0.05 or 0.1 optional) | 0.2 to 2 mm | |||
| Laser / Wavelength | Nd:Ce:YAG 1064 nm | Nd:Ce:YAG 1064 nm 2 Lamps |
||||
| Average Power | 30 W | 100 W | 150 W | |||
| Peak Power | 3 kwp | 6.5 kwp | 11 kwp | 15 kwp | ||
| Cooling System | Single Cooling | Double Cooling | Integrated Pedestal | |||
| Power Source | 110/230 V AC, 50/60 Hz, 2.2 kW | 110/230 V AC, 50/60 Hz, 4.4 kW | ||||
| Origin | Italy | |||||

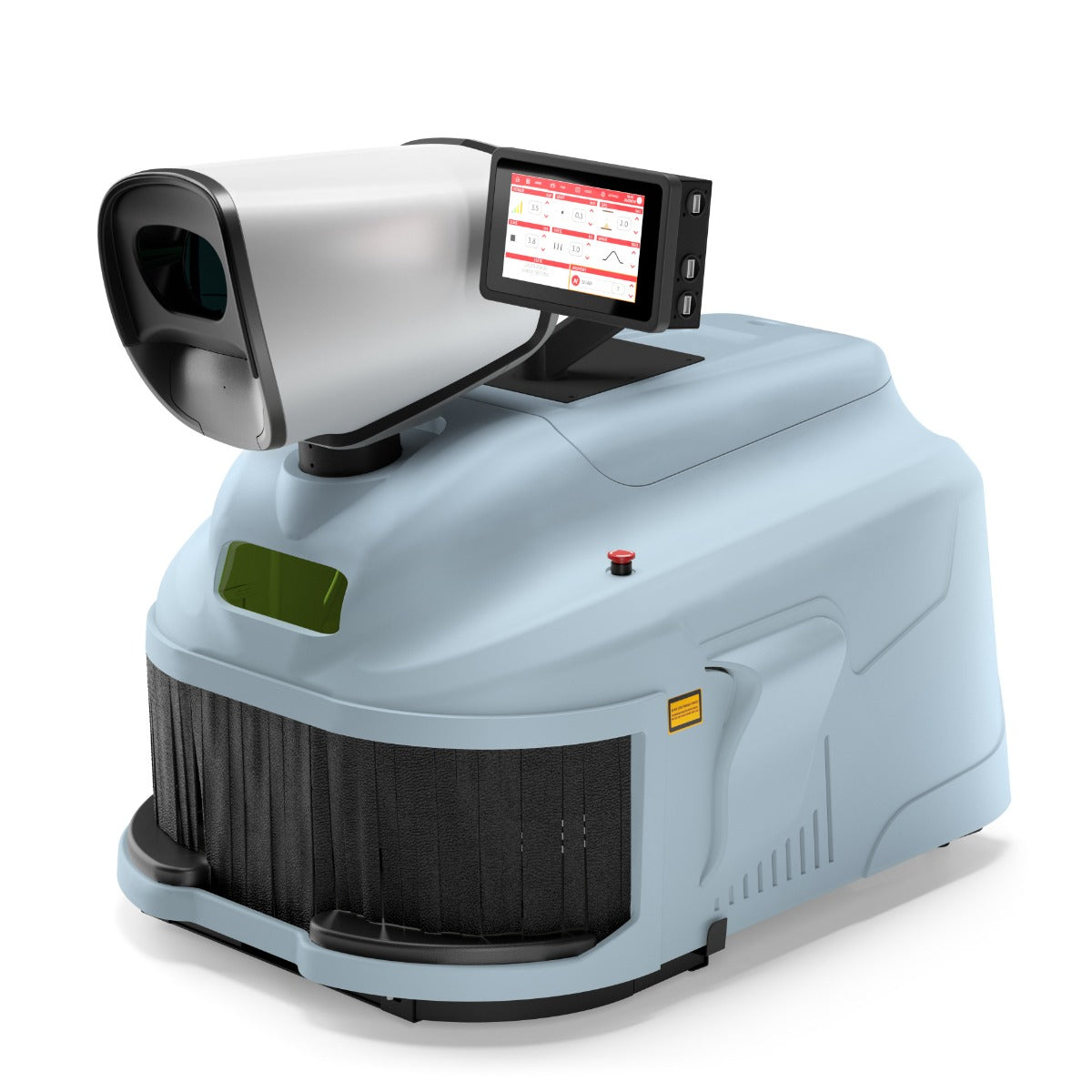

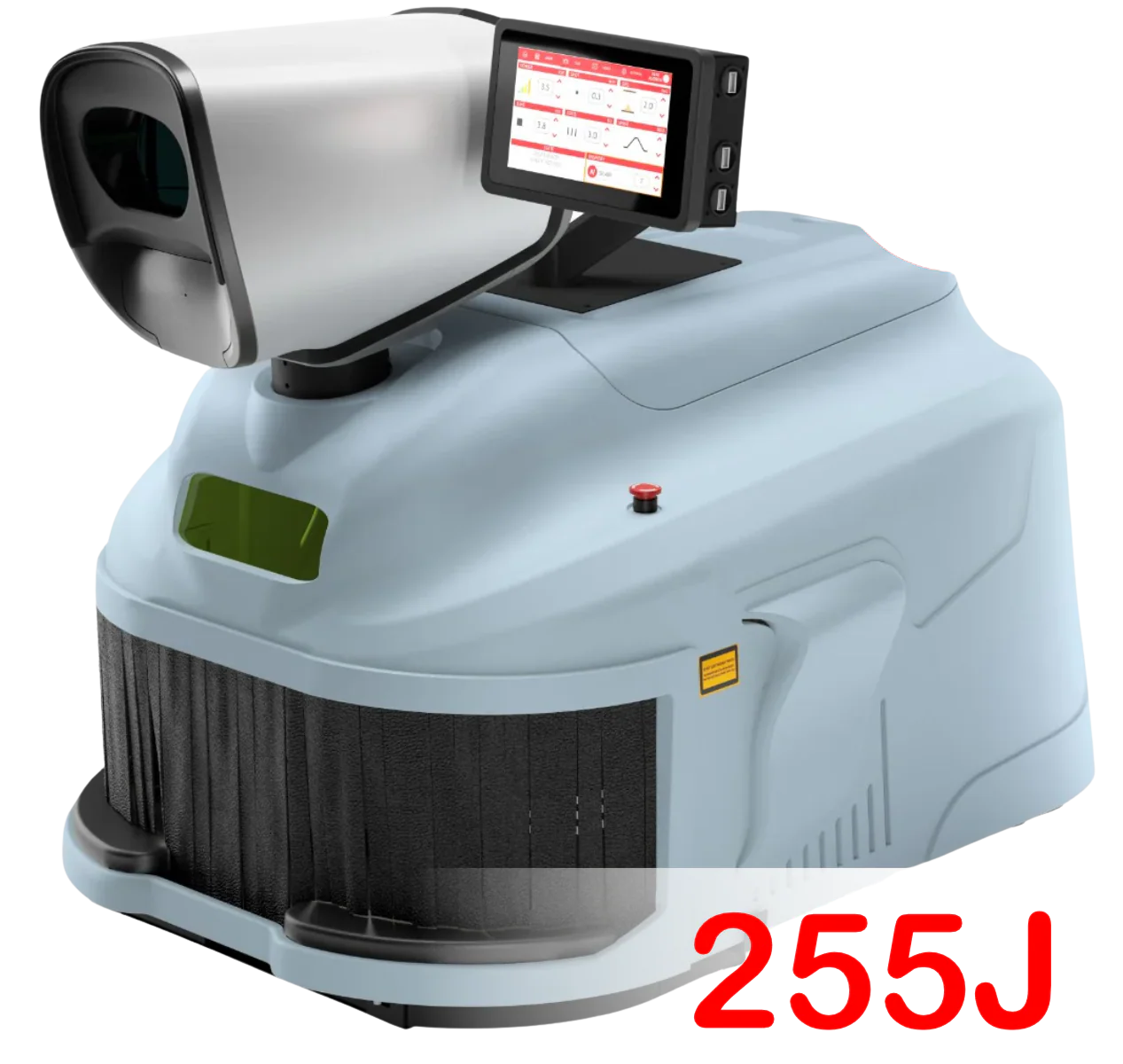

Elettrolaser Mega 6.0 3D: The Future of Stereoscopic Laser Welding
The Elettrolaser Mega 6.0 3D is the latest evolution in the renowned Mega series, specifically engineered to eliminate the ergonomic constraints of traditional laser welding. Delivering an industrial-leading 255 Joules of effective energy, this system replaces standard oculars with an advanced 3D Vision stereomicroscope. It provides a real-time, high-definition 3D view of the work area, making it the premier tool for continuous, heavy-duty production and complex structural repairs on large frameworks where precision and power are non-negotiable.
Next-Gen 3D Vision System
The ocular-free design revolutionizes the operator's workflow, providing a wide-angle, stereoscopic view that enhances depth perception and comfort.
- Ocular-Free Operation: Allows for complete freedom of head and eye movement, significantly reducing neck strain and eye fatigue during long sessions.
- Rapid Operator Transitions: Eliminates the need to adjust for interpupillary distance, allowing multiple technicians to share the machine instantly.
- Glasses-Friendly Workspace: The open 3D display allows operators to weld comfortably while wearing prescription eyewear or safety glasses.
- Stereoscopic Depth: High-fidelity real 3D imaging provides superior clarity for complex geometries and deep undercuts.
High-Output 255J Resonator
Under the hood, the Mega 6.0 3D features a re-engineered resonator for superior beam homogeneity and massive energy reserves.
- 255 Joules of Power: Delivers the high-energy output required for heavy-duty silver welding and structural repairs on large dental or jewelry frameworks.
- Uniform Beam Quality: The renewed Elettrolaser resonator produces a homogeneous beam for consistent results across platinum, titanium, and gold.
- Double Cooling System: Integrated high-capacity liquid and air cooling prevents overheating during extended, high-volume production shifts.
- Oversized Welding Chamber: The expanded internal chamber offers unparalleled versatility for large-scale pieces and complex jigs.
Technical Performance Specs
| Industry Application | Key Capability | Primary Advantage |
|---|---|---|
| Reflective Precious Metals | Silver, Gold, Platinum | Homogeneous beam for uniform penetration. |
| Dental & Lab Work | Structural Frameworks & Bridges | 255J power for heavy structural repairs. |
| Jewelry Restoration | Antique Settings & Porosity | Weld near stones with 3D precision view. |
Coast to Coast Support: Backed by Romanoff International’s extensive technical network, ensuring your high-production casting line remains operational with expert service and training across the country.
| Specifications | |
|---|---|
| Brand | ElettroLaser |
| Country of Origin | Italy |
| Laser Type | Nd:Ce: YAG 1064 nm |
| Pulse Energy (Joules) | 255 J |
| Pulse Length | 0.1 to 25 ms |
| Peak Power | 11 kW |
| Power Source | 110 V or in 230 V AC, 50/60 Hz |
| Spot Diameter | 0.3 to 2.0mm |
| Average Power | 100 W |
| Dimensions (L x W x H) | [Uncrated] 33.5 x 20 x 20 in (850.9 x 508 x 508 mm) |
