Unleash the ultimate in manufacturing capability. This ultra-high energy laser welder is engineered for high-volume industrial jewelry production, where raw power is nothing without absolute clarity. By integrating premium Leica optics, this station transforms heavy-duty welding into a high-definition experience. You don't just weld; you master every micron of the metal's flow.
Product Brochure
| Model | MS 3.5 | MASTER 4.0 | MEGA 6.0 | MEGA 9.0 | ||
|---|---|---|---|---|---|---|
| SKU | LZ-1030 | LZ-1035 | LZ-10135 | LZ-10130 | LZ-6015 | LZ-6020 |
| Max Energy | 35 J | 80 J | 165 J | 225 J | 255 J | 300 J |
| Lens Type | Standard | Premium Leica | ||||
| Internal Joystick | No | Yes | Yes | No | ||
| Cooling Tank | Standard | Larger | Standard | |||
| Smooth Spot | No | Yes | No | |||
| Impulse Time | 0.1 to 12 ms | 0.1 to 25 ms | 0.1 to 20 ms | |||
| Spot Diameter | 0.2 to 2 mm | 0.1 to 2 mm (0.05 optional) | 0.2 to 2 mm | |||
| Laser / Wavelength | Nd:Ce:YAG 1064 nm |
Nd:Ce:YAG 1064 nm 2 Lamps |
||||
| Average Power | 30 W | 30 W | 75 W | 80 W | 100 W | 150 W |
| Peak Power | 3 kWp | 6.5 kWp | 11 kWp | 15 kWp | ||
| Cooling System | Single Cooling | Double Cooling | Integrated Pedestal | |||
| Power Source | 110/230 V AC, 50/60 Hz, 2.2 kW | 110/230 V AC, 50/60 Hz, 4.4 kW | ||||
| Origin | Italy | |||||

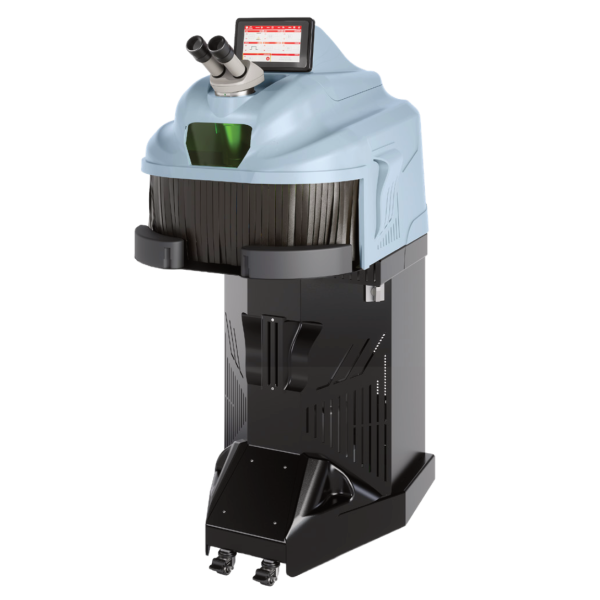

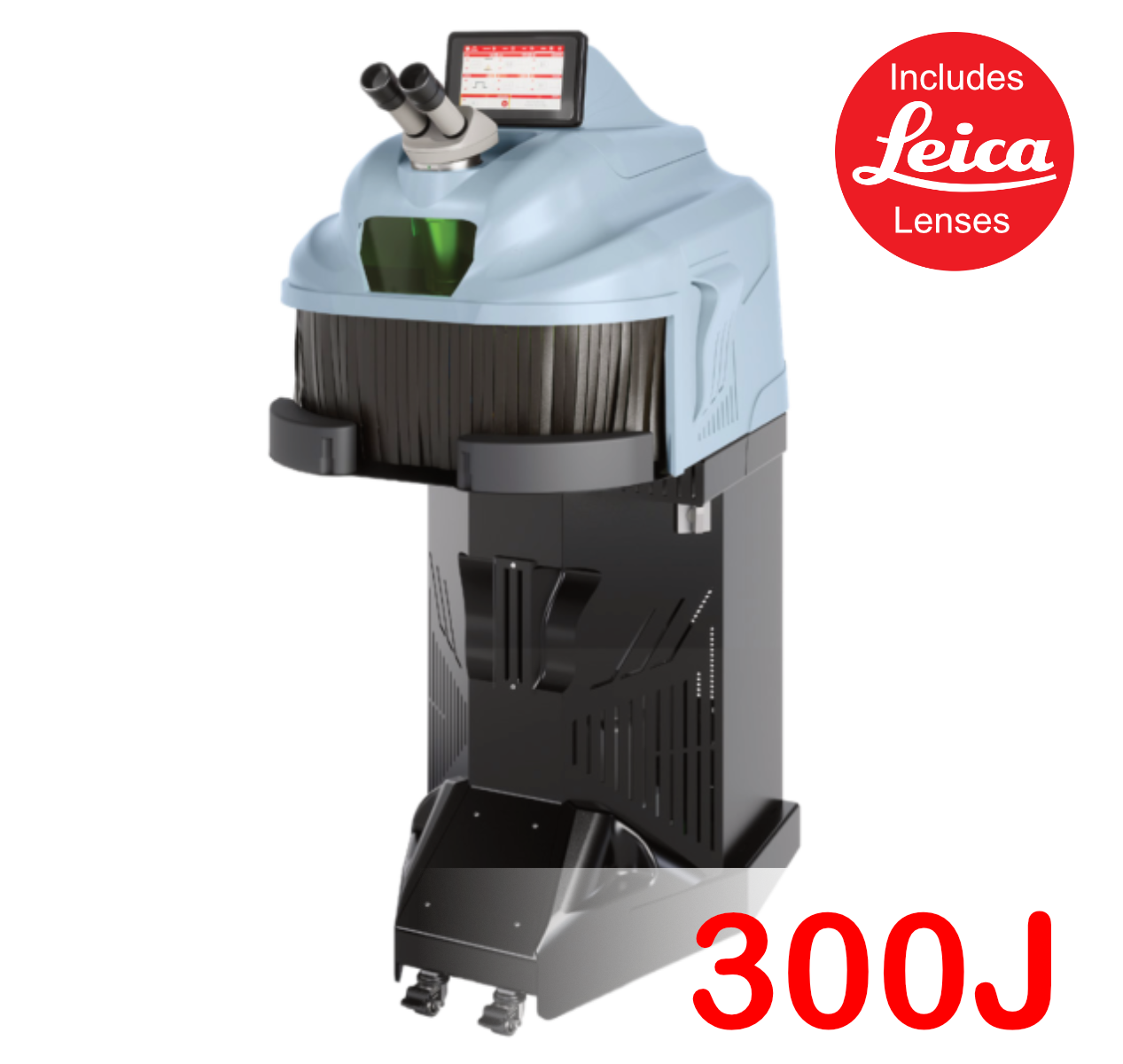

Elettrolaser Mega 9.0: 150W High-Production Industrial Welder
The Elettrolaser MEGA 9.0 is a premier laser welding system specifically engineered for the most demanding high-volume production environments. Powered by a 150W laser engine and a unique dual-lamp, single-rod architecture, the Mega 9.0 delivers high peak power and consistent shot stability even at high frequencies. This industrial workhorse is designed for intensive use, featuring a high-capacity pedestal cooling system and an expansive welding chamber to accommodate large-scale jewelry manufacturing and technical industrial applications.
Precision SMSP & Gaussian Technology
The Mega 9.0 introduces sophisticated beam management systems to ensure uniform energy distribution and superior weld aesthetics.
- SMSP & Gaussian Smooth Spot: Advanced optical technology ensures perfectly even energy distribution across the welding area for cleaner, smoother filler material flow.
- 150W Average Power: High-torque output designed for deep penetration into gold, platinum, and high-reflectivity silver alloys.
- Enhanced PFC System: The upgraded power factor correction ensures stable, stronger laser shots with optimized electrical efficiency.
- Reflective Metal Expert: Specifically calibrated to handle the thermal conductivity of silver and other difficult-to-weld precious metals.
Built for 24/7 Production
Constructed with durability and ergonomics in mind, the Mega 9.0 supports continuous operation in large-scale facilities.
- Integrated Pedestal Cooling: The supporting stand houses an oversized cooling system to maintain thermal stability during non-stop industrial shifts.
- Bulky Piece Versatility: The extra-large welding chamber features a lower opening, allowing for the easy processing of oversized or complex components.
- Digital Real-Time Monitoring: Equipped with an integrated internal camera and a 7-inch color touchscreen for precise alignment and process control.
- 3D VISION Ready: Supports optional stereoscopic 3D technology for operators requiring enhanced depth perception and microscopic precision.
Technical Performance Specs
| Industry Objective | Key Feature Advantage |
|---|---|
| High-Volume Silver Production | 150W output and Reflective Metal Expert calibration. |
| Large Framework Repair | Oversized chamber with lower opening for bulky pieces. |
| 24/7 Manufacturing | Pedestal cooling system and dual-lamp durability. |
Coast to Coast Support: Backed by Romanoff International’s extensive technical network, ensuring your high-production casting line remains operational with expert service and training across the country.
| Brand | ElettroLaser |
| Laser Type | Nd:Ce: YAG 1064 nm |
| Pulse Energy (Joules) | 300 J |
| Pulse Length | 0.1 to 20 ms |
| Peak Power | 15 kW |
| Power Source | 220V / 1ph / 50/60Hz |
| Spot Diameter | 0.2 to 2.0 mm |
| Average Power | 150 W |
| Dimensions (L x W x H) | [Uncrated] 33.8 x 22.8 x 50.8 in (860 x 580 x 1300 mm) |
| Country of Origin | Italy |
