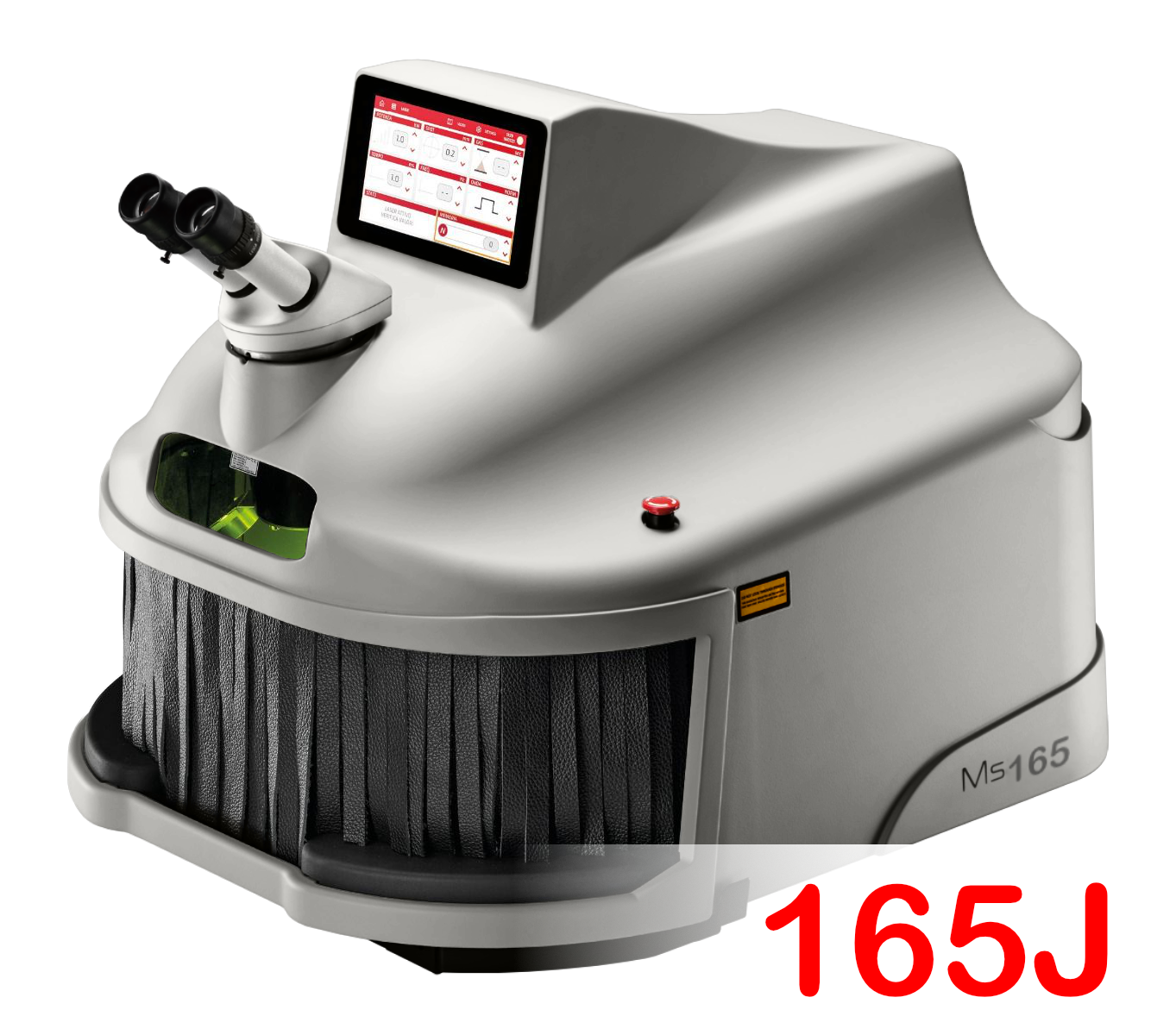

ElettroLaser MS 3.5: 165 J Dental and Jewelry Laser Welder
ElettroLaser MS 3.5: 165 J Dental and Jewelry Laser Welder
ElettroLaser MS 3.5: 165 J Dental and Jewelry Laser Welder
ElettroLaser MS 3.5: 165 J Dental and Jewelry Laser Welder
ElettroLaser MS 3.5: 165 J Dental and Jewelry Laser Welder
ElettroLaser MS 3.5: 165 J Dental and Jewelry Laser Welder

ElettroLaser MS 3.5: 165 J Dental and Jewelry Laser Welder

LZ-10135

$15,855.00
$15,855.00
Sale Sold out

Experience the gold standard in optical precision. This station integrates a genuine Leica lens system, providing the extreme depth of field and color fidelity required for jewelry and dental work.

  • American Express
  • Apple Pay
  • Bancontact
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Product Manual

Product Brochure
Model MS 3.5 MASTER 4.0 MEGA 6.0 MEGA 9.0
SKU LZ-1030 LZ-1035 LZ-10135 LZ-10130 LZ-6015 LZ-6020
Max Energy 35 J 80 J 165 J 225 J 255 J 300 J
Lens Type Standard Premium Leica
Impulse Time 0.1 to 12 ms 0.1 to 25 ms 0.1 to 20 ms
Spot Diameter 0.2 to 2 mm 0.1 to 2 mm (0.05 or 0.1 optional) 0.2 to 2 mm
Laser / Wavelength Nd:Ce:YAG 1064 nm Nd:Ce:YAG 1064 nm
2 Lamps
Average Power 30 W 100 W 150 W
Peak Power 3 kwp 6.5 kwp 11 kwp 15 kwp
Cooling System Single Cooling Double Cooling Integrated Pedestal
Power Source 110/230 V AC, 50/60 Hz, 2.2 kW 110/230 V AC, 50/60 Hz, 4.4 kW
Origin Italy

The ElettroLaser MS 3.5: 165J is a high-performance laser welding system engineered for goldsmiths and dental technicians who require maximum power and precision. Delivering an impressive 165 Joules of pulse energy and 6.5 kW of peak power, this system excels at deep penetration welding and finishing operations on all precious metals. Its compact, Italian-engineered design combines advanced Nd:YAG technology with user-friendly controls, making it a versatile powerhouse for any professional workshop.

Professional Welding Laser - MS 165

Italian Precision with 165J Pulse Energy for Advanced Metalwork.

Key Features

Maximum Power: 165 Joules of pulse energy and 6.5 kW peak power for effortless welding of silver, platinum, and steel.
Touchscreen Controls: 7” capacitive screen for managing power, frequency, and shot size with 100 programmable memory slots.
Versatile Metal Handling: Welds gold, platinum, chrome cobalt, steel, palladium, and silver with or without filler wire.
Strong Cooling System: Integrated liquid and air cooling prevents overheating during continuous, high-intensity use.
Argon Inlet: Built-in shielding gas connection prevents oxidation for cleaner, professional-grade weld joints.
Ergonomic Layout: Reinforced armrests, low noise levels, and a side pull-out tray for convenient tool access.
36-Month Warranty Included

Applications

  • Jewelry Repair and Fabrication: High-energy welding for silver and platinum. Close porosity or weld near heat-sensitive stones without removal.
  • Dental Laboratory Work: Precise welding of chrome cobalt and dental alloys with repeatable, industrial-grade accuracy.
  • Watch and Eye-wear Repair: Delicate precision for small components combined with the power needed for durable frame restoration.
Specifications
Brand ElettroLaser
Country of Origin Italy
Laser Type Nd:Ce: YAG 1064 nm
Pulse Energy (Joules) 165 J
Pulse Length 0.1 to 25 ms
Maximum Peak Power 6.5 kW
Power Source 110 V or in 230 V AC 50/60 Hz, 2.2 kW
Spot Diameter 0.2 to 2.0 mm
Average Power 75 W
Uncrated Dimensions (L x W x H) 34 x 20 x 20 in (863.6 x 508 x 508 mm)
Machine Weight (uncrated) 66 lbs (30 kg)
