Compact 35-joule laser welding system for high-precision repairs and assembly of delicate parts.
Documents (Manuals & SDS)
Product Manual
Product Brochure
| Model | MS 3.5 | MASTER 4.0 | MEGA 6.0 | MEGA 9.0 | ||
|---|---|---|---|---|---|---|
| SKU | LZ-1030 | LZ-1035 | LZ-10135 | LZ-10130 | LZ-6015 | LZ-6020 |
| Max Energy | 35 J | 80 J | 165 J | 225 J | 255 J | 300 J |
| Lens Type | Standard | Premium Leica | ||||
| Internal Joystick | No | Yes | Yes | No | ||
| Cooling Tank | Standard | Larger | Standard | |||
| Smooth Spot | No | Yes | No | |||
| Impulse Time | 0.1 to 12 ms | 0.1 to 25 ms | 0.1 to 20 ms | |||
| Spot Diameter | 0.2 to 2 mm | 0.1 to 2 mm (0.05 optional) | 0.2 to 2 mm | |||
| Laser / Wavelength | Nd:Ce:YAG 1064 nm |
Nd:Ce:YAG 1064 nm 2 Lamps |
||||
| Average Power | 30 W | 30 W | 75 W | 80 W | 100 W | 150 W |
| Peak Power | 3 kWp | 6.5 kWp | 11 kWp | 15 kWp | ||
| Cooling System | Single Cooling | Double Cooling | Integrated Pedestal | |||
| Power Source | 110/230 V AC, 50/60 Hz, 2.2 kW | 110/230 V AC, 50/60 Hz, 4.4 kW | ||||
| Origin | Italy | |||||

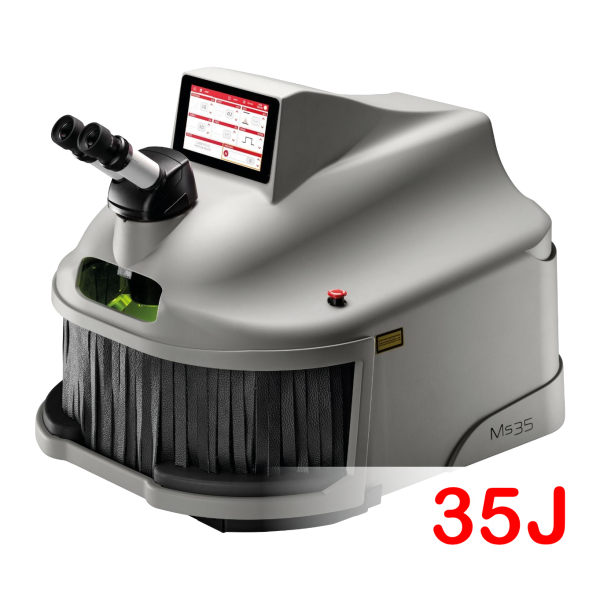

The Elettrolaser MS 3.5 is an ultra-compact benchtop laser welder designed for high-precision jewelry and dental repairs. Operating on a standard 110V power supply, this model delivers a powerful 35 Joules of energy for deep penetration into gold, platinum, silver, and steel alloys. Equipped with a 7-inch capacitive touchscreen, the MS 3.5 allows operators to execute microscopic welds with extreme accuracy and manage 100 programmable memories for various workshop tasks.
Professional Desktop Laser Welder - 35J
Precision Engineering and Leica Optics for High-Performance Metalwork.
Key Features
35J Power Output: High energy capacity ensures consistent results when welding silver and other precious metal alloys.
Touchscreen Controls: 7-inch capacitive screen for adjusting power, frequency, and shot size (0.2–2.0 mm) with 100 memory slots.
Strong Cooling System: Integrated liquid and air cooling prevents overheating during continuous high-volume sessions.
Argon Inlet: Built-in shielding gas connection prevents oxidation for cleaner, stronger weld joints.
Comfortable Design: Ergonomic reinforced armrests, low noise levels, and a side pull-out tray for tools.
36-Month Warranty Included
Applications
- Jewelry Repair and Fabrication: Perfect for gold, silver, palladium, and platinum. Close porosity or weld near heat-sensitive stones without removal.
- Dental Laboratory Work: High-precision welding of chrome cobalt and dental alloys with professional-grade repeatability.
- Watch and Eye-Wear Repair: Delicate enough for small watch components and durable eyewear frame restoration.
- General Welding Tasks: Versatile enough for industrial and creative applications, welding with or without filler material.
| Specifications | |
|---|---|
| Brand | ElettroLaser |
| Country of Origin | Italy |
| Laser Type | Nd:Ce: YAG 1064 nm |
| Pulse Energy (Joules) | 35 J |
| Pulse Length | 0.1 to 12 ms |
| Maximum Peak Power | 4 kW |
| Power Source | 110 V or in 230 V AC 50/60 Hz - 2.2 kW |
| Spot Diameter | 0.2 to 2.0 mm |
| Average Power | 30 W |
| Dimensions (L x W x H) | [Uncrated] 33.5 x 20 x 20 in (580.9 x 508 x 508 mm) |
| Machine Weight (Uncrated) | 65 lbs (29 kg) |
