High-end, fully automated vacuum pressure casting machine for professional-grade gold production.
Product Manual
| Model | Max Power / Electrical Connection | Temp Measurement | Crucible Volume | Flask Size (ø x H) |
Vacuum (Optional) |
|---|---|---|---|---|---|
| GU 500 | 10 kW / 3 x 400 V 50/60 Hz, 25 A | Up to 1300°C N-Type or 1600°C S Type Thermocouple | 0245-0386 ccm ~ 3.6-5.7 kg Gold | 130 x 260 mm | 0-20 Mbar Max., At Least 21 m³/h |
| GU 1000 | 20 kW / 3 x 400 V 50/60 Hz, 50 A | Up to 1200°C N-Type or 1600°C S Type Thermocouple | 1500 ccm = 22 kg Gold 18 ct | - - - | 0-20 Mbar Absolute, At Least 21 m³/h |
| GU 3000 | 30 kW / 3 x 400 V 50/60 Hz, 75 A | Up to 1300°C N-Type or 1500°C S Type Thermocouple | 3400 ccm = 51 kg Gold 18 ct, 30 kg Silver | - - - | 0-20 Mbar Absolute, At Least 21 m³/h |
| GU 12000 | 40-60 kW / 3 x 400 V 50/60 Hz, 150 A | Up to 1600°C B-Type Thermocouple | 12000 ccm = 180 kg Gold 18 ct | - - - | 0-20 Mbar Absolute, At Least 21 m³/h |

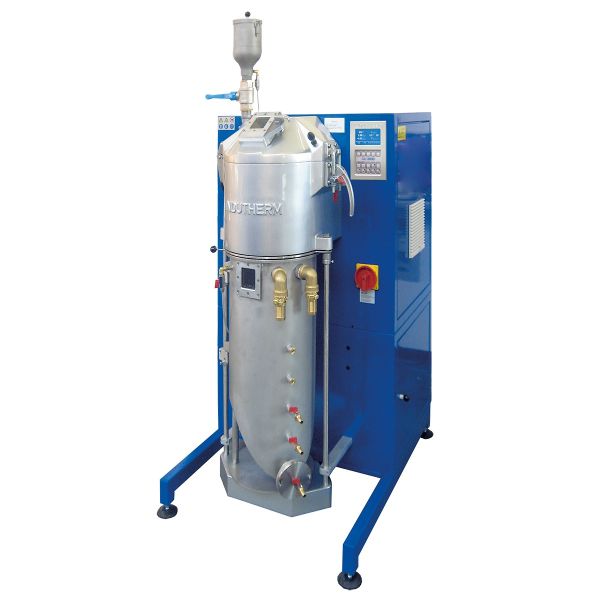

Indutherm GU Series: Professional Granulation & Shotmaking
The Indutherm GU Series represents the premier choice for frequent or permanent production of high-quality granules. Specifically developed for granulating bullions, sheet metal, and casting residues, these shotmakers ensure that your materials are converted into proper, uniform grains for future use. With crucible capacities ranging from 245 ccm to 12,000 ccm, the GU series provides the scalability required for everything from small studio refining to large-scale industrial bullion processing.
Major Applications & Efficiency
The GU Series is engineered to streamline the alloying and refining workflow with several key advantages:
- Alloy Preparation: Ideal for preparing alloys from gold and master alloy components or cleaning up already casted metal.
- Integrated Maintenance: Features easily removable granulating tanks for rapid cleaning and material changes.
- Fluid Dynamics: Optimized cooling water streaming ensures a reliable separation of water and granules.
- Rapid Conversion: Ergonomically balanced design allows for safe handling during high-volume shot production.
Micro-Shot & Hybrid Solutions
For specialized needs, the GU series extends its capabilities into micro-granule production and hybrid casting setups:
- GU Micro Series: Specifically developed to produce micro-granules between 0.1 mm and 1 mm for laser sintering (SLS), jewelry surface design, and soldering technology.
- Hybrid Functionality: Optional granulating tanks are available for all VC and CC series machines, allowing for a fast change between casting and granulating.
- Advanced Jet Technology: The Micro-Shot systems utilize specialized jet developments for precision grain sizing.
Coast to Coast Support: Backed by Romanoff International’s extensive technical network, ensuring your high-production casting line remains operational with expert service and training across the country.
