High-volume vacuum casting system designed for professional jewelry and industrial use.
| Model | Max Power | Crucible Volume | Flask Size (Ø x H) | Vibration Technology |
|---|---|---|---|---|
| VC 3000 HTC | 30 kW | 3400 ccm = 34 kg Ag, 9 kg Al | 450 x 600 mm (17.7" x 23.6") | -- |
| VC 1000 HTC | 25 kW | 1500 ccm = 15 kg Ag, 4 kg Al | 250 x 500 mm | -- |

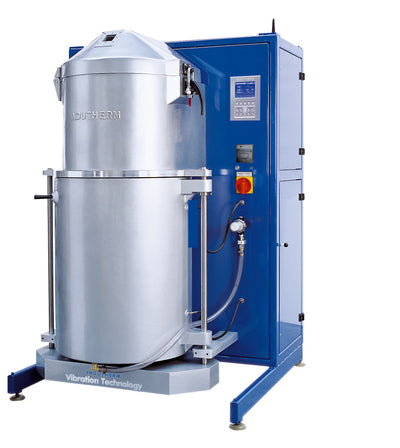

| VC 12000 HTC | 40kW | 12000 ccm = 180 kg Au 18 ct, 30 kg Al | 600 x 800 mm | -- |
| VC 650 V HTC | 12kW | 245 ccm = 3.6kg Au 18ct / 2kg Cu | Ø 130 x 240 mm | Standard equipment Sweep Mode |
| VC 680 V HTC | 12kW | 245 ccm = 3.6 kg Au 18ct / 2 kg Cu | 130 x 240 mm | Standard equipment Sweep Mode |
This top-tier model in the 3000 series includes specialized software for the remote monitoring and optimization of the casting process. It is designed for the modern "smart" factory, where precision and data-driven efficiency are paramount. The VC 3000 provides the most powerful pressure differential in its class, ensuring that even the highest-viscosity alloys are forced into the most microscopic details of a jewelry tree. This machine represents the pinnacle of vacuum pressure casting technology, providing unmatched consistency for high-value gold and platinum production.

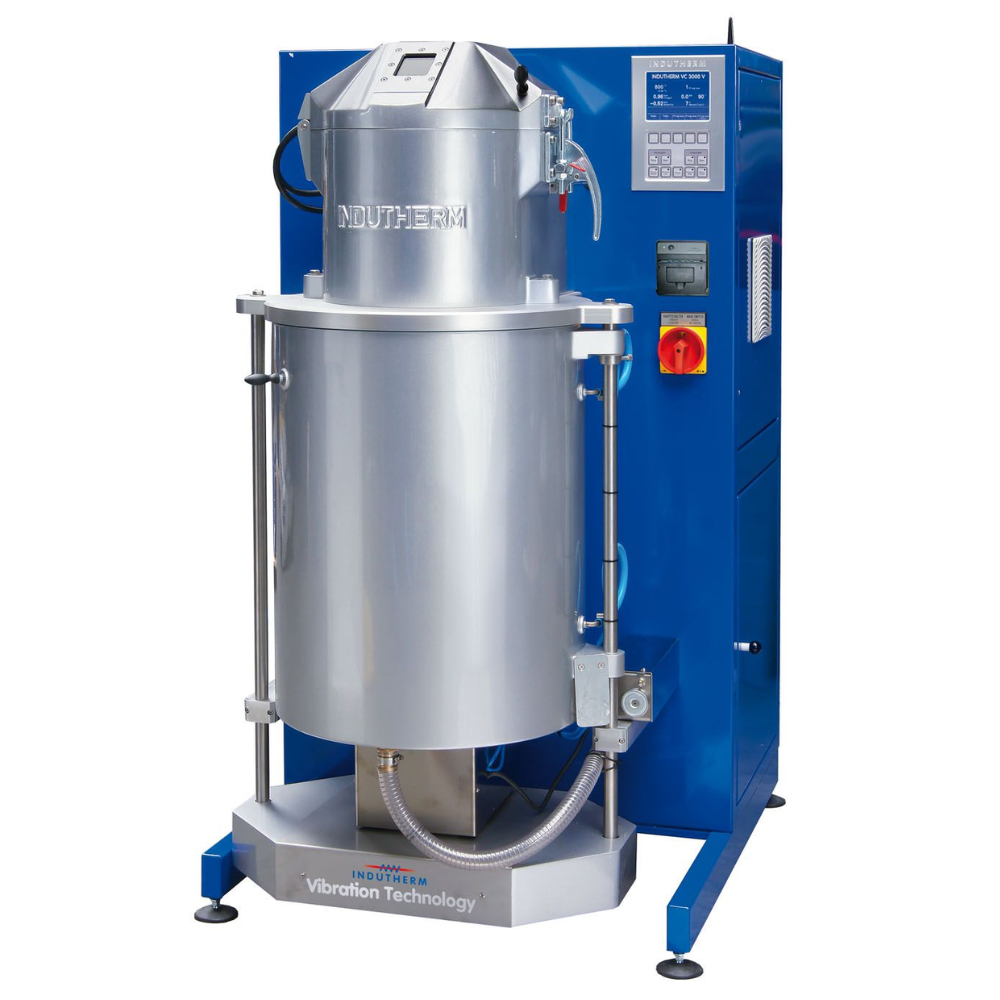

Indutherm VC 3000 V HTC: High-Capacity Precision Casting
The VC 3000 V HTC is a high-performance bridge between mid-range and heavy industrial casting. Engineered for professionals who require a significant increase in capacity without sacrificing the precision of a vacuum-pressure system, this unit is the definitive solution for certified, high-volume production of precious and specialty metals.
HTC: Extreme Thermal Performance
The "HTC" (High Temperature Control) designation represents the absolute peak of inductive heating technology, allowing for a maximum working temperature of 1850°C.
- Dual Temperature Control: Simultaneous measurement in both the crucible wall and center ensures strict adherence to your thermal range.
- High-Speed Casting (HSC): Dramatically improves surface quality on small or smooth parts and allows for stone-in-place casting at lower temperatures.
- Advanced Vacuum/Overpressure: Degasses metal to prevent oxidation while switching to intense overpressure for perfect mold filling.
Vibration & Process Stability
The integrated Indutherm vibration system fundamentally changes the grain structure of the metal during the pour:
- Superior Density: Porosity is significantly reduced, resulting in 50% smaller grain sizes and better elastic properties.
- Turbo Pressure PLUS: Achieves a precisely defined and extremely rapid pressure build-up for the most delicate jewelry and industrial parts.
- 100 Casting Presets: Pre-programmed for major alloys (AGS, Heraeus, Legor, Pandora) to ensure success from the very first flask.
- Overlapping Production: Separate locking systems allow you to heat the next batch while the previous flask is still cooling under vacuum.
Safety and Workflow Optimization
The VC 3000 V HTC is designed for a seamless, ergonomic workflow. Featuring an automatic cuvette and chamber lift, flasks are lowered and docked automatically and raised for easy removal once the cycle is complete. The Turbulence Reduction Software (TRS) ensures a consistent metal flow, protecting the plaster mold from breaking and preventing air pockets. For operators, the full-text LCD display provides real-time process logging and a Self-Diagnostic system for maximum uptime.
Industrial Productivity: By utilizing Indutherm’s vibration technology, users have reported reducing total production and post-processing time by up to 25%. Made in Germany.
| Specifications | |
|---|---|
| Brand | Indutherm |
| Country of Origin | Germany |
| Model | VC 3000VHTC |
| Power Max / Electrical Connection | 30 kW (3x400 V) |
| Temperature max. indirect inductive heating HTC | 2000° C |
| Training | Technical Remote Training & After Sales Support Included |
| Crucible Volume | 3.4 l (3.9) = 8.5 kg Al / 25 kg Cu / 25 kg steel* |
| For use of molds up to | ø 450 mm / 600 mm h |
| Maximum Pressure | 0.3 bar |
| Control System | by LCD-display, full text readout |
| Vibration Technology | standard equipment Sweep Mode |
| Programs | 100 |
| Temp. measurement by optical pyrometer | 1500° C |
