Industrial-scale vacuum casting system designed for high-volume precious metal production.
| Model | Max Power | Crucible Volume | Flask Size (Ø x H) | Vibration Technology |
|---|---|---|---|---|
| VC 3000 | 30 kW | 3400 ccm = 34 kg Ag, 9 kg Al | 450 x 600 mm (17.7" x 23.6") | -- |
| VC 1000 | 25 kW | 1500 ccm = 15 kg Ag, 4 kg Al | 250 x 500 mm | -- |
| VC 12000 | 40kW | 12000 ccm = 180 kg Au 18 ct, 30 kg Al | 600 x 800 mm | -- |
| VC 650 V HTC | 12kW | 245 ccm = 3.6kg Au 18ct / 2kg Cu | Ø 130 x 240 mm | Standard equipment Sweep Mode |
| VC 680 V HTC | 12kW | 245 ccm = 3.6 kg Au 18ct / 2 kg Cu | 130 x 240 mm | Standard equipment Sweep Mode |
Indutherm VC Series: Advanced Precision Casting
The Indutherm VC series offers a versatile range of casting systems, from semi-automatic units to fully automated industrial solutions. Designed for uncompromising quality, these systems use sophisticated functional details to optimize every cast based on its individual metallurgical properties.
Optimized Workflow & "Overlapping" Casting
Efficiency is at the core of the VC series design. By utilizing separate locking systems for the melting and cuvette chambers, the machine enables an "overlapping" pouring process:
- Simultaneous Processing: While a finished cuvette cools in the vacuum chamber, the next batch can be filled and heated immediately.
- Time Savings: Significant reduction in cycle times compared to traditional single-chamber systems.
- Pneumatic Handling: Equipped with pneumatic bell locks and automatic chamber lifts for flange-free cuvette removal and ergonomic operation.
Intelligent Program Control
Achieve certified production quality with minimal training. The VC series features a full-text LCD control panel that simplifies complex casting cycles:
| Cycle Memory | Store up to 100 unique casting programs for consistent results. |
| Alloy Presets | Pre-programmed parameters for leading alloys including Legor, Heraeus, and Pandor. |
| Data Logging | Integrated data printer and RS 232 interface for precise process documentation. |
Advanced Pressure & Oxidation Management
The VC series masters the atmospheric conditions required for a perfect cast:
- Automatic Vacuum/Overpressure: Degasses metal in the melting chamber to prevent oxidation (crucial for copper alloys) while enhancing mold filling in the cuvette chamber.
- Turbo Pressure PLUS: Delivers a rapid, precisely timed pressure build-up—perfect for delicate filigree or stone-in-place casting.
- Turbulence Reduction Software (TRS): Ensures a consistent metal flow, protecting the plaster mold from erosion and preventing inclusions.
- Oxidation Reduction: A specialized system that protects the cuvette from oxygen exposure during the critical cooling phase.
Future-Ready Integration
Equipped with advanced interface management, the VC series supports remote maintenance and service, ensuring your equipment stays updated with future industrial standards and networking capabilities.
| Specifications | |
|---|---|
| Brand | Indutherm |
| Country of Origin | Germany |

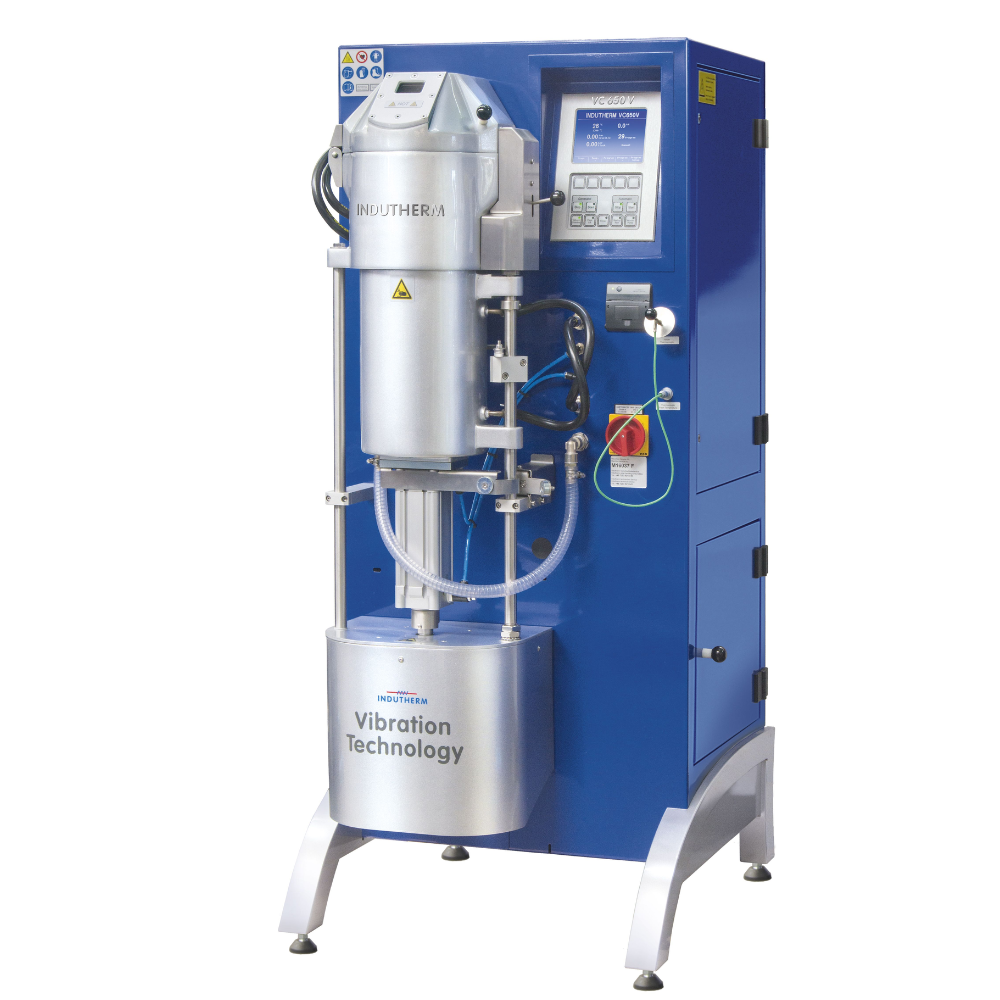

| Model | VC 650 V HTC |
| Max Power | 12 kW (3 x 400 V) |
| Temp max. indirect inductive heating HTC | 1500°C |
| Crucible Volume | 245 ccm = 3.6 kg Au 18 ct / 2 kg Cu* |
| For use of molds up to | ø 130 mm / 240 mm h |
| Dimensions | 700 x 1000 x 1450 mm |
| Maximum pressure | 3 bar |
| Control system | by LCD-display, full text readout |
| Vibration technology | Standard equipment Sweep Mode |
