This automatic sintering machine delivers high-pressure precision and thermal stability for superior bonding in jewelry and industrial applications.
| Specification | VCC400 | VCC1000 | VCC3000 |
|---|---|---|---|
| Part # | 78-4550 | 78-4560 | 78-4570 |
| Power Max. / Electrical Connection | 15 kW, 3 x 208 V | 20 kW, 3 x 400 V | 30 kW, 3 x 400 V |
| Maximum Temp | 1500°C | 1500°C | 1500°C |
| Crucible Volume |
245 ccm = 3.6 kg Au 18 ct / 2 kg Cu Optional: 386 ccm = 5.8 kg Au 18 ct / 3.3 kg Cu Optional: 700 ccm = 10.5 kg Au 18 ct / 6 kg Cu |
1.5 l = 4 kg Al / 12 kg Cu | 3.4 l = 8.5 kg Al / 25 kg Cu |
| Wire Production Up To | Ø 45 mm | Ø 65 mm | Ø 90 mm |
| Sheet Production Up To | 50 mm x 8 mm Optional: 60 mm x 8 mm |
100 mm x 10 mm | 130 mm x 40 mm |
| Vacuum or Over-pressure after | -1 to +2 bar | -1 to +3 bar | -1 to +2 bar |
| 100 Programs | by LCD-Display, Full test readout | by LCD-Display, Full test readout | by LCD-Display, Full test readout |
| Vacuum / Inert Gas Overpressure | Standard | Standard | Standard |
| Neutral Inert Gas Atmosphere | Standard | Standard | Standard |
| Optical Die Temp. Reading | Standard | Standard | Standard |
| Die Cooler With Protective Gas Flushing | Standard | Standard | Standard |
| Secondary Cooler / Water Collection Systems | Standard / Optional | Standard / Optional | Standard / Optional |
| End Bar Sensor | Standard | Standard | Standard |
| RS 232, Diagnostic System | Standard | Standard | Standard |
| Date Printer | Standard | Standard | Standard |
| GSM Modem For Remote Service | Standard | Standard | Standard |
| DMS / Indutherm Cloud / iThermControl | Standard / Optional / Optional | Standard / Optional / Optional | Standard / Optional / Optional |
| Quattro Drive Drawing Unit | Optional | Optional | Optional |
| Sintering / Diffusion Bonding Kit | Optional | n/a | n/a |
| Granulation Tank / Flake Option | Optional / Optional | Optional / Optional | Optional / Optional |
| Bending-unit / Coiling Equip. | Optional / N/A | Optional / Optional | Optional / Optional |
| Simultaneous Casting of Several Wires | N/A | Optional, 3 wires | Optional, 5 wires |
| Flying Saw / Pneumatic Cutter | Optional / Optional | Optional / Optional | Optional / Optional |
| Water Chiller, Vacuum Pump | Optional | Optional | Optional |

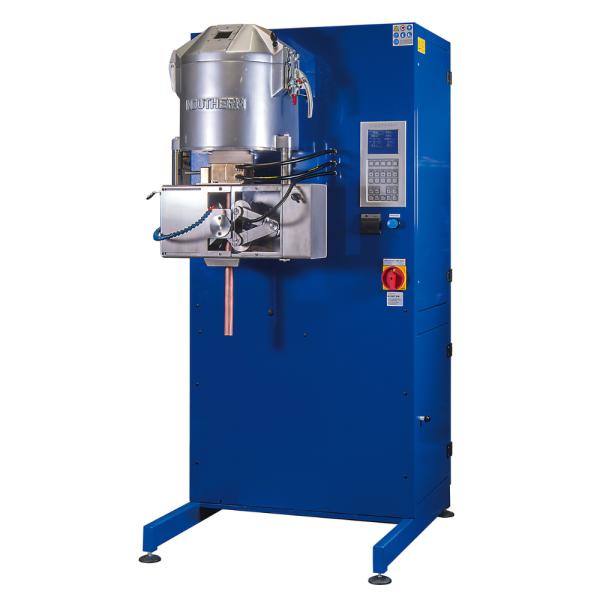

Indutherm Continuous Casting: Advanced Alloy & Semi-Finished Production
Indutherm continuous casting machines empower manufacturers to produce custom alloys and semi-finished products—including wires, bars up to 90 mm, sheets, strips, and tubes—directly in-house. By utilizing an integrated casting system, facilities can significantly reduce material storage investments while increasing operational flexibility. Featuring the exclusive QUATTRO DRIVE drawing system and specialized vacuum technology, these machines are engineered to deliver superior surface quality and metallurgical integrity for high-end jewelry and industrial applications.
Unmatched Oxidation Prevention
To ensure the highest quality of copper-containing alloys like red gold or silver, Indutherm utilizes a multi-stage system to eliminate oxygen contact.
- Exclusive Vacuum System: Available on VCC versions, providing a vacuum-sealed melting chamber to prevent oxidation at the source.
- Atmospheric Re-Charging: Specialized feeding system allows for recharging the melt without breaking the vacuum or introducing oxygen.
- Inert Gas Management: Advanced inert gas flushing at both the melting chamber and the die outlet for secondary protection.
- Precision Cooling: Features automatic flow control, die coolers, and optical temperature measurement at the center of the die for rapid, controlled solidification.
Quattro Drive & Precision Drawing
The mechanical drawing unit is the heart of the continuous casting process, determining the surface finish and dimensional accuracy of the material.
- Quattro Drive System: Features four motor-driven feed rolls (rather than the standard two) to produce smoother tubes and sheets with significantly fewer transportation marks.
- Pneumatic Roll Pressure: Motor-driven rolls are pneumatically pressed to ensure consistent grip without mechanical slippage.
- Bar End Control: Integrated sensors automatically halt the drawing process once the molten material is depleted, preventing equipment damage.
- Automated Parameter Recognition: The control system recognizes installed kits (Bar, Sintering, or Granulation) and automatically adjusts display parameters.
Versatile Manufacturing Kits
| Optional Kit | Primary Application | Technical Advantage |
|---|---|---|
| Sintering & Diffusion | Multi-color rings and bracelets. | Pneumatic pressure prevents graphite breakage during heat expansion. |
| Granulation & Flake | Production of master alloys and casting grain. | Easy-to-install tank for rapid switching between cast shapes and grain. |
| Bar Casting Kit | Ingot molds and precise alloy quantities. | Automatic parameter syncing for precise dosing into molds. |
Coast to Coast Support: Backed by Romanoff International’s extensive technical network, ensuring your high-production line remains operational with expert service and training across the country.
