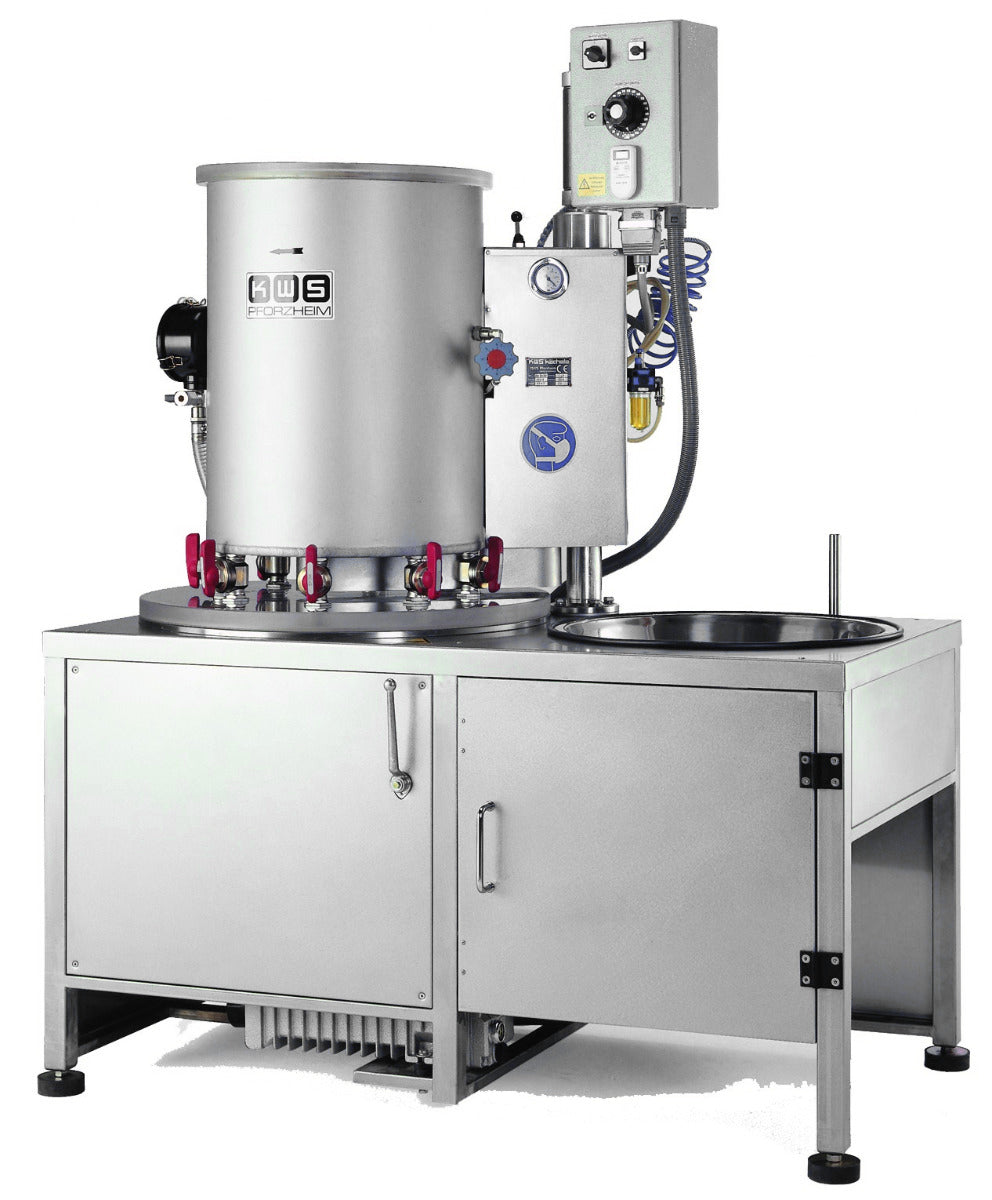

The KWS EB-10/16 investment mixing machine (220 V/3 PH/60 Hz, no vacuum) is used to blend large batches of investment material for mold preparation in casting workflows where vacuum degassing isn’t required. Its robust, high-capacity design supports efficient mixing of up to 10–16 flasks or equivalent volume, helping produce consistent, lump-free slurries for detailed molds.
| Model | EB5 | EB8 | EB10/16S | EB-10/16 | EB 20/30 |
|---|---|---|---|---|---|
| SKU | 76-3001A | 76-3002 | 76-3005 | 76-3003 | 76-3006 |
| Max Flasks | 3 flanged flasks, 120 to 140 mm max diameter | 5 flanged flasks, 140 mm max diameter each | 6 flanged flasks, 140 mm max diameter | 6 flanged flasks, 140 mm max diameter | 8 flasks |
| Max Flask Height | 228.6 mm / 9 in | 230 mm / 9 in | 270 mm / 10.8 in | ||
| Flask Chamber | 290 mm diameter | 380 mm diameter | 430 mm diameter | 610 mm diameter | |
| Max Powder Capacity | 6 kg | 10 kg | 16 kg | 30 kg | |
| Mixing Chamber Diameter | 200 mm | 280 mm | 330 mm | 610 mm | 460 mm |
| Mixing Chamber Height | 315 mm inside height | 315 mm inside height | 575 mm inside height | 330 mm inside height | 590 mm inside height |
| Power | 220 V, 3 phase, 60 cycle | ||||
| Machine Dimensions | 730 x 490 x 970 mm | 1015 x 550 x 1405 mm | 1130 x 640 x 1600 mm | 1140 x 640 x 1720 mm | 1340 x 840 x 1710 mm |
| Weight | 72 kg uncrated / 120 kg crated | 147 kg / 0025 pump, 215 kg / 0040 pump, 226 kg / 0025 pump crated, 223 kg / 0040 pump crated | 189 kg uncrated / 283 kg crated | 211 kg uncrated / 325 kg crated | 292 kg / 453 kg shipping |
| Form Factor | Tabletop Unit | Floor Unit | |||
| Construction / Features | Stainless steel and aluminum construction | ||||
| Application | Investment Mixing | ||||
Romanoff KWS EB 20/30: 6-Flask Industrial Vacuum Investing System
The Romanoff KWS EB 20/30 is a premier industrial investment mixing machine designed for high-capacity production without sacrificing the precision required for boutique designer studios. Engineered with a complete stainless steel casing and a high-torque 220V 3-phase motor, this system is optimized to mix up to 30 kg of powder under a full vacuum. It is specifically configured to accommodate up to 6 flanged flasks simultaneously, delivering the superior surface quality and contour sharpness that professional jewelry manufacturing demands.
Precision Vacuum Engineering
Achieve flawless molds through a synchronized mixing and pouring process that eliminates air entrapment at every stage of the investing cycle.
- 6-Flask Simultaneous Fill: Engineered to fill up to 6 flanged flasks (max 140 mm diameter) under constant vacuum and vibration.
- Pneumatic Lift System: Features a unique pneumatic lift for the mixing chamber, significantly reducing physical labor and improving cycle efficiency.
- Variable Speed Control: The drive motor allows for precise rotational speed selection, ensuring the perfect slurry consistency for every investment type.
- Bubble-Free Results: Simultaneous vacuum and vibration during the pour stage allow for the production of the highest-quality, high-density flasks.
Industrial Longevity
Constructed with premium materials to resist the corrosive nature of gypsum and water in a high-volume manufacturing environment.
- Stainless Steel Construction: The complete stainless steel casing and aluminum components result in minimum wear and tear and zero corrosion.
- Pump Protection: An integrated advanced filter system traps particulates before they reach the vacuum pump, substantially extending the pump's life cycle.
- Special Alloy Taps: Filling taps are manufactured from a proprietary alloy specifically designed to resist the corrosive effects of gypsum and water.
- Fast Maintenance: Long-lasting gaskets (2-3 year lifespan) can be replaced by loosening just two screws—no machine dismantling required.
Technical Specifications
The KWS EB 20/30 is a robust workstation designed for rapid throughput and effortless cleaning. For maintenance, the mixer swivels over a dedicated drain bowl for rinsing with an integrated spray nozzle, maintaining a clean and pleasant work environment.
Shipping & Support: This unit weighs 211 kg (uncrated) and ships via truck freight. Romanoff International provides comprehensive remote training and technical support for all KWS installations.
- Max Flasks: 6 Flanged Flasks with Maximum Diameter of 140 mm
- Max Height of Flasks: 270mm / 10.8"
- Flask Chamber: 430mm Diameter
- Max Powder Capacity: 16kg
- Mixing Chamber Diameter: 610 mm
- Mixing Chamber Inside Height : 330 mm
- Machine Dimensions: 1140 x 640 x 1720 mm
- Power: 220 V 3 ph 60 cyc
- Weight: 211 kg (uncrated) / 325 kg (crated)
- Unique Features: Pneumatic Lift for Mixing Chamber,
- Machine Construction: Complete Stainless Steel Casing
