Compact vacuum unit with noise reduction for jewelry shops.
Product Manual
| Specification | 87-010 | 87-007 | Z42-009-H | 87-0125 | Z42-009-R |
|---|---|---|---|---|---|
| Suction Motor | 1/2 HP | 1 HP | 3 HP | ||
| Air Flow | 400 CFM | 600 CFM | 1,000 CFM | 1,000 CFM | 1,300 CFM |
| Power | 110 V, 9 A, Single-Phase, 60 Hz | 220V, 15A, 3Ph, 60Hz | |||
| Ports / Stations | One Station, One Auxiliary | — | Two | 2 - 4 Ports | Five |
| Noise Level | 50 dB | — | 63 dB | 68 dB | |
| Dimensions (W x D x H) | 16 x 16 x 23.5 in. | 16 x 16 x 20 in. | 25 x 25 x 39 in. | 25 x 25 x 39 in. | 28 x 28 x 61 in. |
| Shipping Weight | 85 lbs. | 63 lbs. | 229 lbs. | 396 lbs. | |

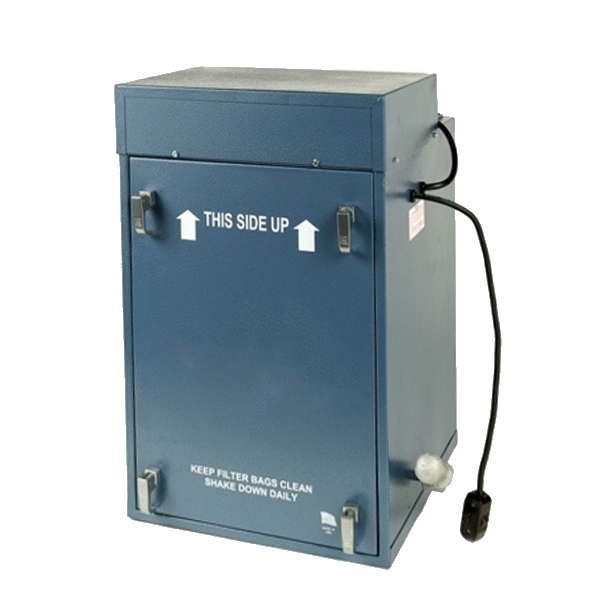

A specialized 1/2, HP dust collector designed for individual polishing hoods or small-scale grinding stations. Powered by a standard 110V connection, it provides a strong, consistent vacuum that is surprisingly quiet for its power level. The unit is compact enough to fit under most standard workbenches, making it an excellent choice for shops with limited floor space. It includes a high-capacity filter bag that is easy to remove and empty for gold and silver recovery. Aspecialized "kick-bag" foot pedal simplifies maintenance and extends the life of your equipment. With a quick press of the pedal, the internal filters are shaken to release accumulated dust and debris into a collection area for easy sweeping.
| Specifications | |
|---|---|
| Brand | Romanoff |
| Suction Motor | 1/2 HP |
| Air Flow | 400 CFM |
| Electrical | 110V, 9A, 1 Ph, 60Hz |
| Inlets | One Station, One Auxiliary |
| Filter | 14 Cloth Bags, 6-1/4" x 12", totaling 15 sq. ft. |
| Replacement Filter # | 87-010A |
| Filter Shakedown | External foot pedal; removable catch pan |
| Noise Level | 50 dB |
| Dimensions (W x D x H) | 16" x 16" x 23.5" (406 x 406 x 597 mm) |
| Shipping Weight | 85 lbs. (38.5 kg) |
| Shipping Dimensions (W x D x H) | 21" x 23" x 29" (533 x 584 x 736.5 mm) |
