Multi-station dust extractor for high-volume polishing labs.
Related Products
| Specification | 87-010 | 87-007 | Z42-009-H | 87-0125 | Z42-009-R |
|---|---|---|---|---|---|
| Suction Motor | 1/2 HP | 1 HP | 3 HP | ||
| Air Flow | 400 CFM | 600 CFM | 1,000 CFM | 1,000 CFM | 1,300 CFM |
| Power | 110 V, 9 A, Single-Phase, 60 Hz | 220V, 15A, 3Ph, 60Hz | |||
| Ports / Stations | One Station, One Auxiliary | — | Two | 2 - 4 Ports | Five |
| Noise Level | 50 dB | — | 63 dB | 68 dB | |
| Dimensions (W x D x H) | 16 x 16 x 23.5 in. | 16 x 16 x 20 in. | 25 x 25 x 39 in. | 25 x 25 x 39 in. | 28 x 28 x 61 in. |
| Shipping Weight | 85 lbs. | 63 lbs. | 229 lbs. | 396 lbs. | |

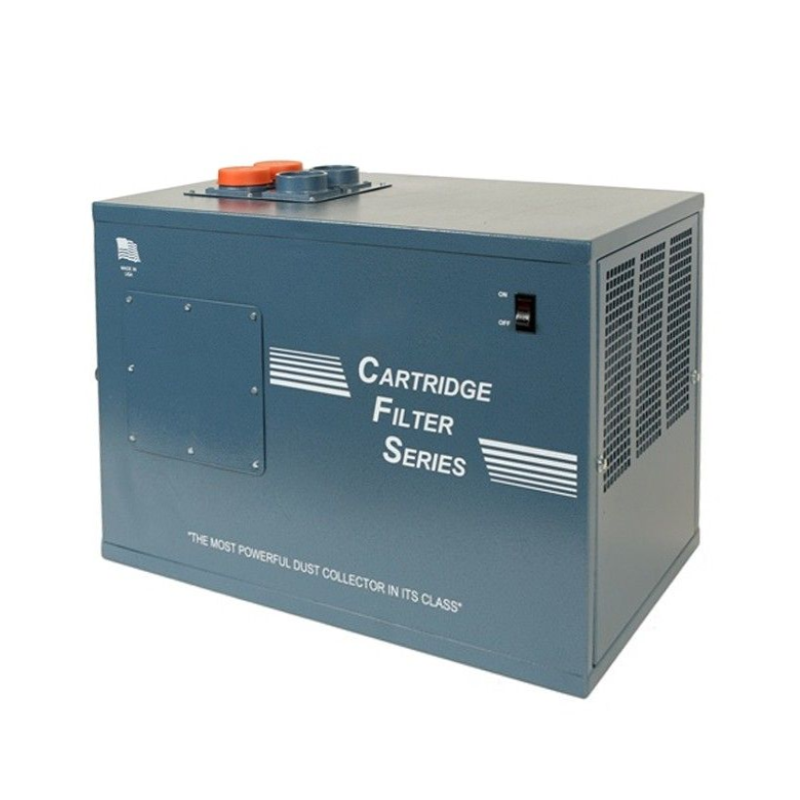

This massive 1 HP system is a centralized dust collection solution capable of supporting up to 4 separate jewelry polishing stations. It features high-volume suction that ensures every station remains clear of dust and polishing compounds. The heavy-duty industrial motor is designed for continuous operation in a 24 hour manufacturing environment. By centralizing dust collection, this system simplifies the recovery of precious metal scrap and reduces the overall noise level of the workshop.
| Specifications | |
|---|---|
| Brand | Romanoff |
| Suction Motor | 1 HP |
| Air Flow | 1,000 CFM |
| Electrical | 110 V, 9 A, Single-Phase, 6 Hz |
| Ports | 2 - 4 |

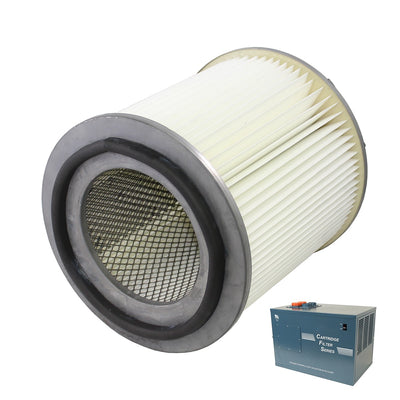

| Replacement Filter # | 87-0125-F |
| Filter Shakedown | External foot pedal; removable catch pan |
| Noise Level | 63 dB |
| Dimensions (W x D x H) | 25 x 25 x 39 in (635 x 635 x 990 mm) |
| Shipping Weight | 229 lbs (103.9 kg) |
| Shipping Dimensions (W x D x H) | 32 x 32 x 56 in (813 x 813 x 1422 mm) |
