High-capacity centrifugal casting system designed for high-melting-point metals like platinum and gold.
| Model | Power | Max Temp | Crucible Capacity | Max Flask Size | Replacement Crucible | Related Flask | Weight & Dimensions |
|---|---|---|---|---|---|---|---|
|
RCS LITE 5 kW SKU: 79-700 |
5.0 kW 230V 37amp |
2000°C | 200g Platinum 170g Gold 80g Silver |
3 x 2.75 in (80 x 75 mm) |
44mm Diameter 79-701-LG Platinum 79-702 Gold/Silver |
76-047-I | 342 lbs 25.2 x 26.4 x 41.3 in |
|
RCS 4 kW SKU: 79-7100 |
4.0 kW 230V 30amp |
2000°C | 200g Platinum 170g Gold 80g Silver |
3 x 3 in (80 x 80 mm) |
44mm Diameter 79-701-LG Platinum 79-702 Gold/Silver |
76-046-S | 385.8 lbs 25.2 x 26.4 x 41.3 in |
|
CCM D1 100 SKU: 79-500-D1 |
7.5 kW 400V (230V Opt.) |
2000°C | 350g Platinum 290g Gold |
4 x 5 in (100 x 120 mm) |
51mm Diameter 79-500-CAR Platinum 79-500-G Gold/Silver |
— | 551.1 lbs 27.6 x 30 x 43.5 in |
|
CCM D2 200 SKU: 79-500-D2 |
7.5 kW 400V (230V Opt.) |
2000°C |
350g Platinum 290g Gold or 750g Platinum 650g Gold |
5 x 6 in (120 x 160 mm) |
51mm Diameter 79-500-CAR Platinum 79-500-G Gold/Silver |
— | 683.4 lbs 35.8 x 40.6 x 43.5 in |

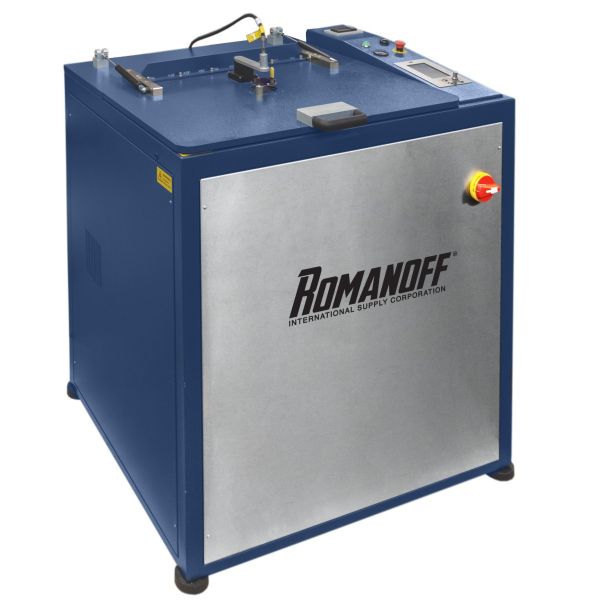

The Romanoff CCM is a high-performance centrifugal casting machine designed to handle the extreme temperatures of platinum while remaining versatile enough for gold and silver. This standard-capacity model provides a balanced centrifugal arm that ensures the molten metal is forced into the mold with maximum pressure, resulting in high-density, porosity-free castings. It features an integrated induction melter that brings the metal to temperature in seconds, minimizing oxidation and improving alloy quality. It is the professional choice for custom jewelers who demand the highest performance for their high-value precious metal pieces.
Romanoff CCM Centrifugal Casting Machines
The Romanoff CCM Series represents a leap forward in casting technology, combining industrial-grade power with sophisticated microprocessor control. Designed for high-end jewelry production, these machines allow for melting in a vacuum-controlled atmosphere to deliver high-density, oxide-free castings.
Main Benefits & Innovations
- Advanced Thermal Management: Features a high-accuracy optical pyrometer with metal emissivity regulation and an advanced thermoregulator for a perfect heating cycle every time.
- Versatile Programming: Equipped with a built-in Micro-Processor and a digital control panel featuring 20 user programs (with 10 programmable parameters each) to manage initial acceleration and final RPM.
- Atmospheric Purity: Includes an Argon Gas circuit for a complete Vacuum-Argon washing cycle, ensuring pristine metal quality.
- Specialized Capabilities: Specifically engineered to support advanced techniques, including casting with precious stones.
Safety & Maintenance: The integrated Self-Diagnostic system monitors the unit in real-time, notifying operators of low water pressure, power fluctuations, or when a crucible replacement is required.
Technical Highlights
| Generator | New Heavy-Duty Induction Melting Generator |
| Automation | 20 User Programs / 10 Parameters per Program |
| Atmosphere | Vacuum-Argon Washing Cycle |
Note: The CCM line features a user-friendly digital interface and advanced diagnostic error messaging to ensure maximum uptime and consistent production quality.
- Brand: Romanoff
- Model: CCM / D1 100 (Centrifugal Casting Machine)
- Power: 7.5 kW
- Voltage: 230 V ±10% Three-Phase (400 V Standard)
- Amperage: 24 A
- Max Melting Temperature: 2000°C
- Crucible Capacity: 350g Platinum (90g Pt Min), 290g Gold

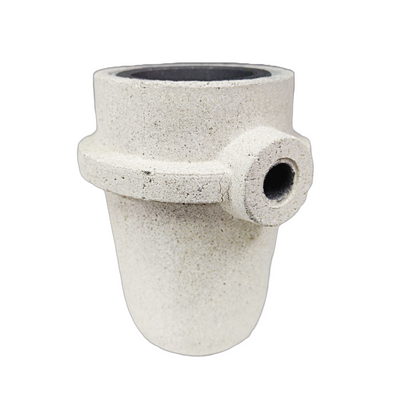

- Replacement Crucible Diameter: 51mm
- Replacement Crucible (Platinum): 79-500-CAR
- Replacement Crucible (Gold/Silver): 79-500-G
- Maximum Flask Capacity: 4 x 5 in (100 x 120 mm)
- Machine Dimensions (L x W x H): 27.6 x 30 x 43.5 in
- Uncrated Weight: 551.1 lbs (250 kg)
