The Romanoff Compact Centrifugal Casting System is a powerful, all-in-one solution designed for high-precision results in a space-saving footprint. This true plug-and-play unit comes fully equipped with a built-in water recirculator and a high-performance vacuum pump. Perfect for gold, silver, and platinum, it delivers industrial-grade casting power in a streamlined, user-friendly package.
| Model | Power | Max Temp | Crucible Capacity | Max Flask Size | Weight & Dimensions |
|---|---|---|---|---|---|
|
RCS LITE 5 kW SKU: 79-700 |
5.0 kW 230V 37amp |
2000°C | 200g Pt 170g Au |
3 x 2.75 in (80 x 75 mm) |
385.8 lbs 25.2 x 26.4 x 41.3 in |
|
RCS 4 kW SKU: 79-7100 |
4.0 kW 230V 30amp |
2000°C | 350g Pt 290g Au |
3 x 3 in (80 x 80 mm) |
342 lbs 25.2 x 26.4 x 41.3 in |
|
CCM D1 100 SKU: 79-500-D1 |
7.5 kW 400V (230V Opt.) |
2000°C | 750g Pt 650g Au |
4 x 5 in (100 x 120 mm) |
551.1 lbs 27.6 x 30 x 43.5 in |
|
CCM D2 200 SKU: 79-500-D2 |
7.5 kW 400V (230V Opt.) |
2000°C | 750g Pt 650g Au |
120 x 160 mm | 683.4 lbs 35.8 x 40.6 x 43.5 in |
A dual-purpose centrifugal casting machine featuring high-speed rotation and reinforced arm construction. It is specifically balanced to handle the high density of molten platinum and the fluid dynamics of gold alloys in the same unit.

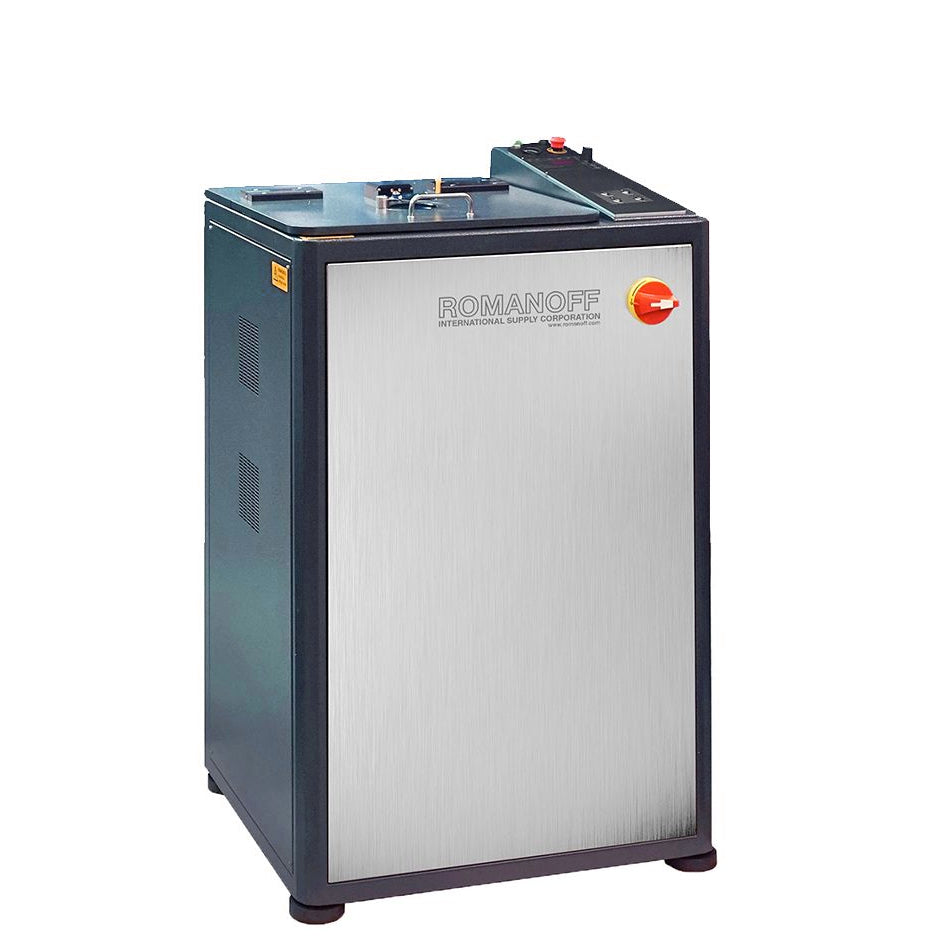

Romanoff RCS Centrifugal Casting Machine
The Romanoff RCS is engineered for high-efficiency production and superior surface quality. By utilizing a vacuum-controlled atmosphere and precise thermal management, it provides a professional-grade solution for casting precious metals and stainless steel.
Key Features & Advantages
- Casting Cycle: Fully automatic (one button) or manual casting cycle
- Rotating Coil System (RCS): Maintains consistent heat throughout the casting cycle, significantly reducing porosity and improving surface finish.
- High Efficiency Production: Capable of casting 4–5 flasks per hour. For high-volume continuous production, an external water chiller is recommended.
- Vacuum + Inert Gas: Creates a stable, protective environment during melting to eliminate oxidation.
- Digital Precision: Programmable interface for power, rotation, temperature, and timing, coupled with an optical pyrometer for accurate readings up to 2000°C.
System cooling: Features a built-in water system and vacuum pump. The unit is versatile enough to handle gold, silver, platinum, and stainless steel alloys.
| Specifications | |
|---|---|
| Brand | Romanoff |
| Model | RCS Lite 4 KW |
| Power | 4 kW Induction Generator |
| Voltage | 230 V Single-Phase |
| Amperage | 30 A |
| Max Temperature | 2000°C Automatic Temperature Control |
| Training | Technical Training & After Sales Support Included |
| Features | Rotating Coil, Optical Pyrometer, Built-in Vacuum Pump & Water Tank Recirculator |
| Crucible Capacity | 200 g Platinum (50 g Pt Min) 170 g Gold, 80 g Silver |
| Maximum Flask Capacity | 3 x 3 in (80 x 75 mm) |
| Machine Dimensions | 25.2 x 26.4 x 41.3 in (64 x 67 x 105 cm) |
| Uncrated Weight | 342 lb (155 kg) |
