The Romanoff Compact Centrifugal Casting System is a powerful, all-in-one solution designed for high-precision results in a space-saving footprint. This true plug-and-play unit comes fully equipped with a built-in water recirculator and a high-performance vacuum pump. Perfect for gold, silver, and platinum, it delivers industrial-grade casting power in a streamlined, user-friendly package.
Product Manual
| Model | Power | Max Temp | Crucible Capacity | Max Flask Size | Replacement Crucible | Related Flask | Weight & Dimensions |
|---|---|---|---|---|---|---|---|
|
RCS LITE 5 kW SKU: 79-700 |
5.0 kW 230V 37amp |
2000°C | 200g Platinum 170g Gold 80g Silver |
3 x 2.75 in (80 x 75 mm) |
44mm Diameter 79-701-LG Platinum 79-702 Gold/Silver |
76-047-I | 342 lbs 25.2 x 26.4 x 41.3 in |
|
RCS 4 kW SKU: 79-7100 |
4.0 kW 230V 30amp |
2000°C | 200g Platinum 170g Gold 80g Silver |
3 x 3 in (80 x 80 mm) |
44mm Diameter 79-701-LG Platinum 79-702 Gold/Silver |
76-046-S | 385.8 lbs 25.2 x 26.4 x 41.3 in |
|
CCM D1 100 SKU: 79-500-D1 |
7.5 kW 400V (230V Opt.) |
2000°C | 350g Platinum 290g Gold |
4 x 5 in (100 x 120 mm) |
51mm Diameter 79-500-CAR Platinum 79-500-G Gold/Silver |
— | 551.1 lbs 27.6 x 30 x 43.5 in |
|
CCM D2 200 SKU: 79-500-D2 |
7.5 kW 400V (230V Opt.) |
2000°C |
350g Platinum 290g Gold or 750g Platinum 650g Gold |
5 x 6 in (120 x 160 mm) |
51mm Diameter 79-500-CAR Platinum 79-500-G Gold/Silver |
— | 683.4 lbs 35.8 x 40.6 x 43.5 in |
A dual-purpose centrifugal casting machine featuring high-speed rotation and reinforced arm construction. It is specifically balanced to handle the high density of molten platinum and the fluid dynamics of gold alloys in the same unit.

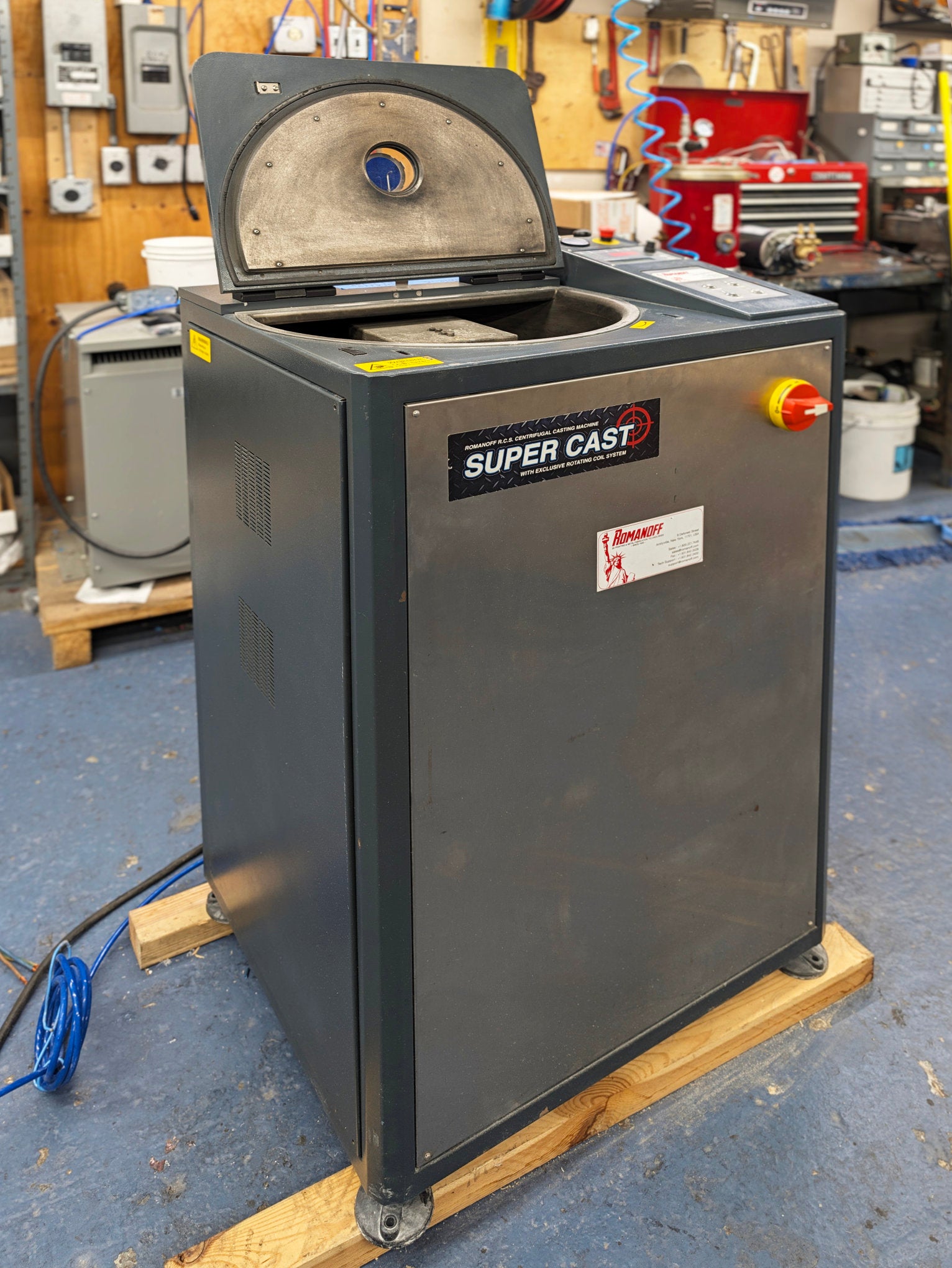

Romanoff RCS Centrifugal Casting Machine
The Romanoff RCS is engineered for high-efficiency production and superior surface quality. By utilizing a vacuum-controlled atmosphere and precise thermal management, it provides a professional-grade solution for casting precious metals and stainless steel.
Key Features & Advantages
- Casting Cycle: Fully automatic (one button) or manual casting cycle
- Rotating Coil System (RCS): Maintains consistent heat throughout the casting cycle, significantly reducing porosity and improving surface finish.
- High Efficiency Production: Capable of casting 4–5 flasks per hour. For high-volume continuous production, an external water chiller is recommended.
- Vacuum + Inert Gas: Creates a stable, protective environment during melting to eliminate oxidation.
- Digital Precision: Programmable interface for power, rotation, temperature, and timing, coupled with an optical pyrometer for accurate readings up to 2000°C.
System cooling: Features a built-in water system and vacuum pump. The unit is versatile enough to handle gold, silver, platinum, and stainless steel alloys.
- Brand: Romanoff
- Model: RCS Lite 4kW (Rotating Coil System)
- Power: 4 kW Induction Generator
- Voltage: 230 V Single-Phase
- Amperage: 30 A
- Max Temperature: 2000°C
- Temperature Control: Automatic Temperature Control
- Training: Technical Training & After Sales Support Included
- Features: Rotating Coil, Optical Pyrometer, Built-in Vacuum Pump & Water Tank Recirculator
- Crucible Capacity: 200g Platinum (50g Pt Min), 170g Gold, 80g Silver
- Replacement Crucible Diameter: 44mm
- Replacement Crucible (Platinum): 79-701-LG
- Replacement Crucible (Gold/Silver): 79-702
- Maximum Flask Capacity: 3 x 3 in (80 x 80 mm)
- Related Flask: 76-046-S (3 x 2-3/4 in)
- Machine Dimensions (L x W x H): 25.2 x 26.4 x 41.3 in (64 x 67 x 105 cm)
- Uncrated Weight: 385.8 lbs (175 kg)
