The Romanoff Compact Centrifugal Casting System is a powerful, all-in-one solution designed for high-precision results in a space-saving footprint. This true plug-and-play unit comes fully equipped with a built-in water recirculator and a high-performance vacuum pump. Perfect for gold, silver, and platinum, it delivers industrial-grade casting power in a streamlined, user-friendly package.
Product Manual
Product Brochure
| Model | Power | Max Temp | Crucible Capacity | Max Flask Size | Weight & Dimensions |
|---|---|---|---|---|---|
|
RCS LITE 5 kW SKU: 79-700 |
5.0 kW 230V 37amp |
2000°C | 200g Pt 170g Au |
3 x 2.75 in (80 x 75 mm) |
385.8 lbs 25.2 x 26.4 x 41.3 in |
|
RCS 4 kW SKU: 79-7100 |
4.0 kW 230V 30amp |
2000°C | 350g Pt 290g Au |
3 x 3 in (80 x 80 mm) |
342 lbs 25.2 x 26.4 x 41.3 in |
|
CCM D1 100 SKU: 79-500-D1 |
7.5 kW 400V (230V Opt.) |
2000°C | 750g Pt 650g Au |
4 x 5 in (100 x 120 mm) |
551.1 lbs 27.6 x 30 x 43.5 in |
|
CCM D2 200 SKU: 79-500-D2 |
7.5 kW 400V (230V Opt.) |
2000°C | 750g Pt 650g Au |
120 x 160 mm | 683.4 lbs 35.8 x 40.6 x 43.5 in |
A professional centrifugal casting machine designed for small-to-medium jewelry production. It utilizes high-torque centrifugal force to push molten metal into the finest details of the mold, making it highly effective for gold and silver casting. Plug and play: An automatic machine that includes a vacuum pump and water recirculator.

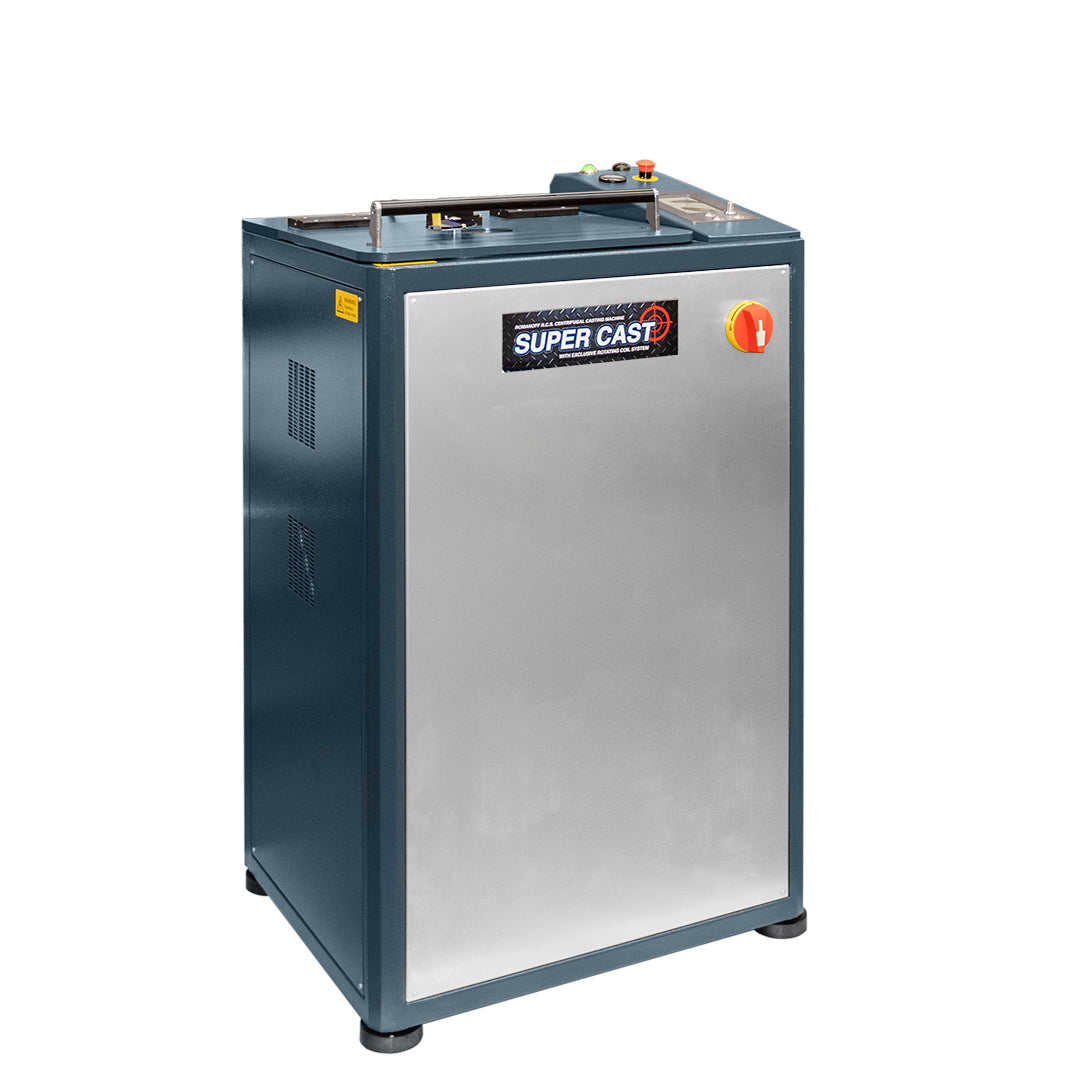

Romanoff RCS 5kw Centrifugal Casting Machine
Achieve unparalleled casting results with the Romanoff RCS 5kw. This machine is engineered for superior performance, allowing for the precision casting of all precious metals and specialized alloys within a vacuum-controlled atmosphere with rigorous temperature management.
Key Performance Features
- Casting Cycle: Fully automatic (one button) or manual casting cycle
- Rotating Coil System (RCS): Maintains consistent heat throughout the casting cycle to significantly reduce porosity and improve final surface quality.
- Vacuum + Inert Gas: Creates a stable, protective atmosphere during the melting process to prevent oxidation. Includes built-in vacuum pump and inert gas (argon or nitrogen) circuit.
- Versatile Metal Handling: Capable of processing gold, silver, platinum, stainless steel, and titanium at temperatures up to 2000°C.
- Optical Pyrometer: Delivers high-accuracy automatic temperature control for repeatable success.
- Accurate Temperature Reader: Advanced temperature controller and metal emissivity regulation.
- User Interface: Modern 5” full color LCD touch control panel.
-
Programming: Multiple user programs with many pre-programmed settings.
Integrated Systems: The unit features a built-in water cooling system and vacuum pump. For high-volume, continuous industrial use, an optional external chiller is available.
| Specifications | |
|---|---|
| Brand | Romanoff |
| Model | RCS 5kW (Rotating Coil System) |
| Power | 5 kW Induction Generator |
| Voltage | 230 V Single-Phase |
| Amperage | 37 A |
| Temperature Max (Melting) | 2000°C |
| Temperature Control | Automatic Temperature Control |
| Training | Technical Training & After Sales Support Included |
| Features | Rotating Coil, Optical Pyrometer, Built-in Vacuum Pump & Water Recirculator |
| Crucible Capacity | 200g Platinum (50g Pt Min), 170g Gold, 80g Silver 80g Ti (min 10g Ti ingot) |
| Maximum Flask Capacity | 3 x 3 in (80 x 80 mm) |
| Machine Dimensions (L x W x H) | 25.2 x 26.4 x 41.3 in (64 x 67 x 105 cm) |
| Uncrated Weight | 385.8 lbs (174.9 kg) |
