The CIMO St. Louis 2002 XXL 14 kg automatic vacuum investment mixing machine is used to mix large batches of investment material under vacuum with automatic cycle control, producing uniform, air-free slurries for mold preparation in high-volume casting environments. Its automatic operation and heavy-duty design support consistent results with reduced operator intervention.
Product Brochure
| Model | Powder Load | Flask # | Max Flask Size Plate Diameter | Vacuum Pump |
|---|---|---|---|---|
| St. Louis Mini Mixer SKU: 76-113-MINI | 1 Kg (2.2 lbs) |
Single | 120 x 100 mm (4.7 x 4 in) |
Available (SKU: 7115A) |
| ST. LOUIS 92-4 KG SKU: 76-113-4KG-P | 4 kg (8.8 lbs.) |
Single | 200 x 150 mm (7.8 x 5.9 in) |
Available (SKU: 7117) |
| ST. LOUIS #82 SKU: 76-115 | 6 kg (13.2 lbs.) |
(4) 4" No Flange or (3) 4" With Flange | 200 x 280 mm (7.87 x 11.0 in) |
Available (SKU: 7119) |
| ST. LOUIS 82-PT SKU: 76-115-P | 6 Kg/ 3 Kg (13.2 lbs/6.6 lbs) |
(4) 4" Gold Flasks With No Flange (3) 4" Gold Flasks With Flange (3) 3" Platinum Solid Flasks | 200 x 280 mm (7.87 x 11.0 in) |
Included |
| ST. LOUIS 2000 - 14XL SKU: 76-114-14XL | 14 kg (30 lbs.) |
6 | 350 x 330 mm (13.7 x 13 in) |
Included |
| ST. LOUIS 2002 - XXL SKU: 76-130 | 14 kg (30 lbs.) |
6 | 350 x 330 mm (13.7 x 13 in) |
Included |
| ST. LOUIS 2000-22 XXL SKU: 76-131 | 22 kg (8.5 lbs.) |
8 - 9 | 400 x 450 mm (15.7 x 17.7 in) |
Included |

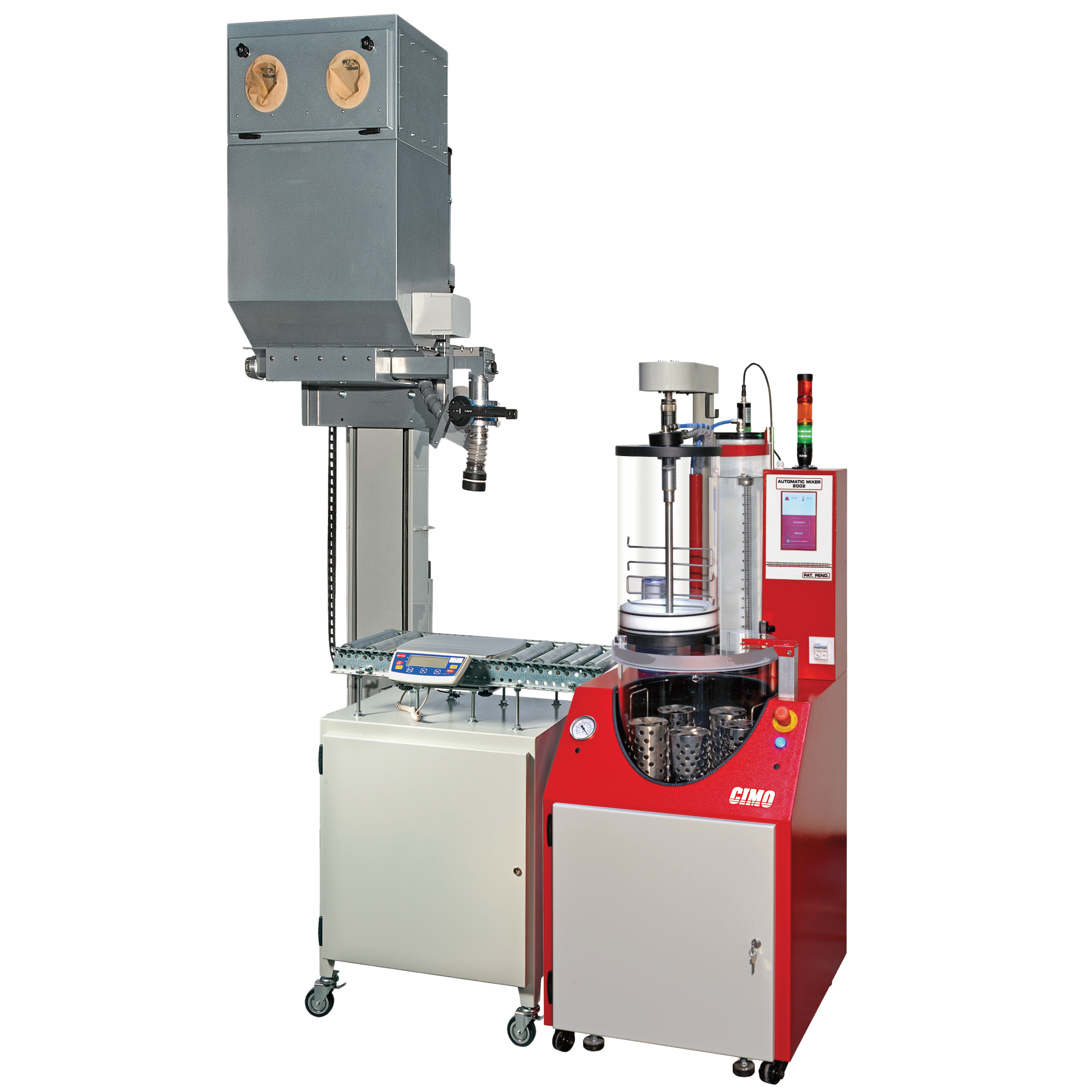

The St.Louis 2002 Kit includes everything you need to start mixing investment.
This bundle includes:
- St. Louis 2002 14 kg Vacuum investment mixer
- 100 kg Dispenser Lift
- Side Scale with Rollers
- Vacuum Pump
The St. Louis 2002 is a high-capacity investment mixer engineered for industrial production environments that demand uniformity and speed. With a 14 kg powder limit, this system is designed to process large numbers of flasks in a single cycle while maintaining the highest metallurgical standards.
By integrating mixing and pouring within a controlled vacuum environment, the 2002 eliminates the need for separate vacuuming operations, acting as a massive real-time saver and significantly reducing casting rejects.
The heavy-duty automatic lift is a specialized accessory for the St. Louis 2002 investment mixing system, designed to handle up to 100 kg of material. It automates the physically demanding task of lifting and tilting heavy bags of investment powder into the mixing chamber, significantly reducing the risk of workplace injuries.
The lift is integrated with the machine's control system, ensuring a dust-free and precise transfer of material every time. This is a crucial addition for high-volume casting houses that need to process hundreds of flasks daily with maximum efficiency and worker safety.
