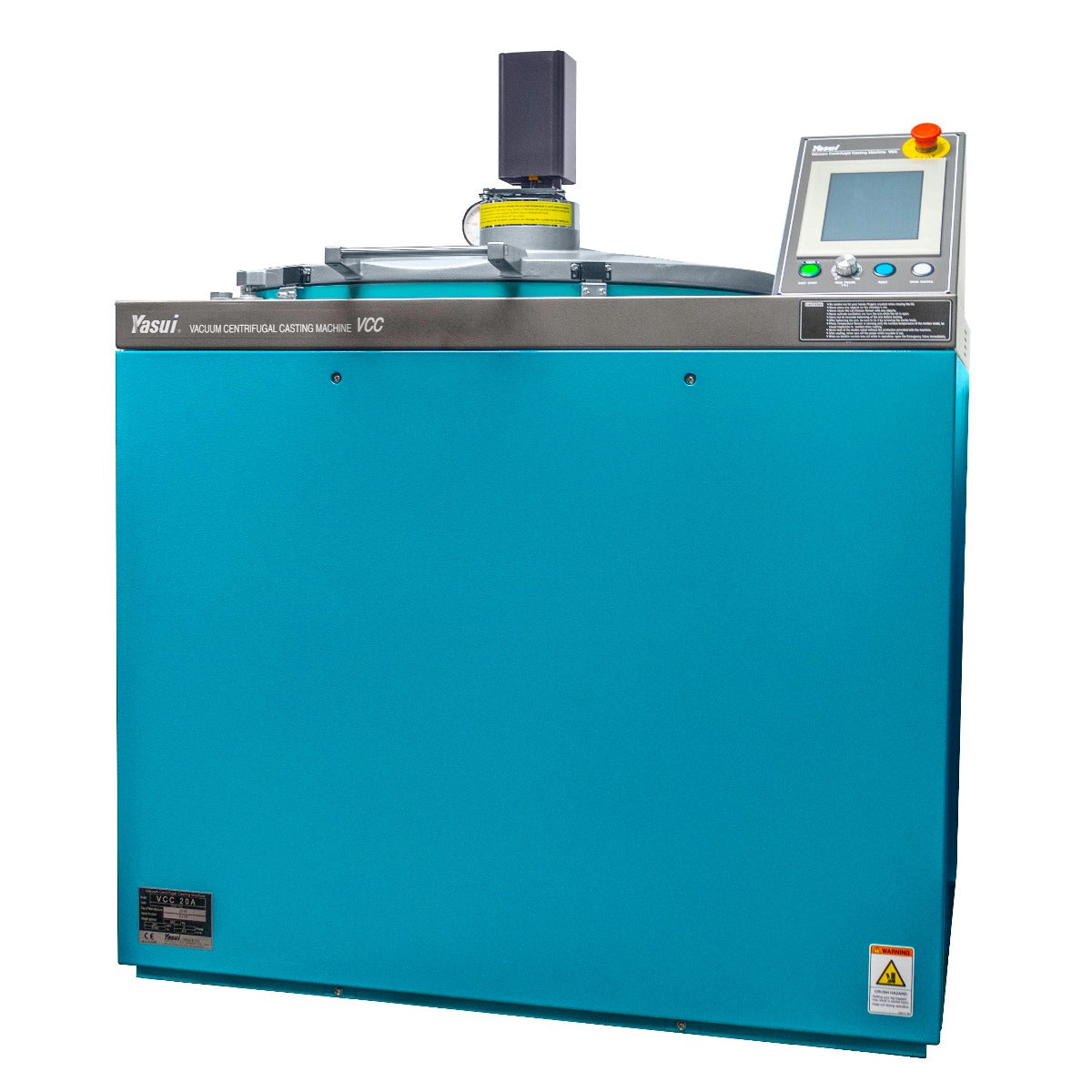

The Yasui VCC Platinum Centrifugal Casting Machine: the most advanced and reliable platinum casting machine available today. The Yasui VCC Platinum Casting Machine sets the industry standard for precision, consistency, and performance.
Product Manual
Product Brochure
The Yasui VCC is a world-renowned vacuum pressure casting machine designed specifically for platinum and other high-temperature alloys. It features advanced induction technology for rapid, clean, and dense castings.
Unrivaled Precision: "Double Swing Arm" Technology
At the heart of the Yasui VCC lies the patented Double Swing Arm: This exclusive technology ensures molten metal is transferred directly and smoothly into the mold, resulting in:
- Zero Turbulence: Perfect for delicate filigree and complex geometries.
- Maximum Density: High-pressure filling that eliminates porosity.
- Reduced Metal Loss: Precise delivery minimizes waste of expensive alloys.
Advanced Thermal & Atmosphere Control: Achieve accuracy of ±2°C with the dual-spectrum optical thermal control system. The chamber is completely vacuumed and back-filled with inert Argon gas to prevent oxidation.
Speed and Performance
- Rapid Spin-Up: Reaches 500 RPM in just 0.1 seconds.
- Instant Coil Descent: The heating coil retracts in 40 msec to minimize heat loss.
- Stepless Control: Independently program acceleration and RPM via the digital touch panel.
Technical Specifications
| Max Spin-Up | 500 RPM in 0.1 sec |
| Thermal Accuracy | ±2°C |
| Modes | Full-Auto, Semi-Auto, Manual |
Note: This machine requires a high-quality vacuum pump (Recommended SKU: 004-220-R) and features a built-in water circulation system.
| Specifications | |
|---|---|
| Brand | Yasui |
| Model | VCC |
| Power | AC200V, 50/60 Hz, 3 Phase, 6.5kVA |
| Temp. Control Range | 900°C ~ 2100°C |
| Flask Diameter (ø) | 76 mm / 89 mm |
| Maximum Height | 100 mm |
| Crucible Capacity | 400 g (79-4550) |
| Features | Double Swing Broken Arm |
| Dimensions (L x W x H) | 40 ½ x 31 ½ x 46 ½ in |
| Net Machine Weight | 350 kg |
