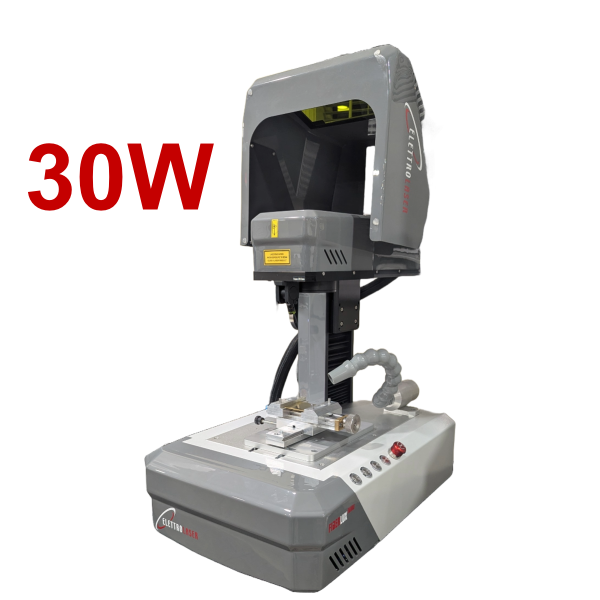

Space-saving 30-watt fiber laser system for high-detail marking and small-scale engraving.
Product Brochure

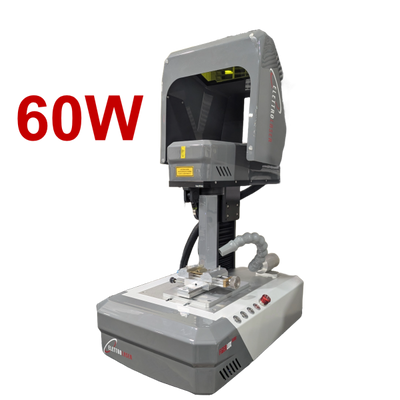

| Models | RE-3000 | RE-3060 |
|---|---|---|
| Engraver Software | EZ-CAD Software | EZ-CAD Software |
| Output Power | 30 W | 60 W |
| Wavelength | 1064 nm | 1064 nm |
| Working Area | 250 x 250 x 310 mm | 250 x 250 x 310 mm |
| Galvo Head Speed | 5000 mm/s | 5000 mm/s |
| Max Pulse Energy And Duration | up to 1.5 mJ at 10 - 200 ms | up to 1.5 mJ at 10 - 200 ms |
| Max Frequency | 60 kHz | 60 kHz |
The Fiberlux Nano is a high-quality entry-level laser cutter and engraver designed for all precious metals. It offers a compact and affordable laser marking solution specifically tailored for small goldsmith laboratories and studio spaces where square footage is at a premium. By incorporating research and innovations from the larger FiberLUX series, this "mini" model delivers professional precision in a space-saving design.
Equipped with a high-speed galvo-head, the Fiberlux Nano provides rapid marking and precision cutting for precious metals, steel, aluminum, titanium, and special alloys. Its user-friendly interface and innovative focusing system—featuring overlapping pointers and manual Z-axis adjustment—make it easy to import complex designs and logos for high-volume personalization.
| Feature | Performance Benefit |
|---|---|
| 30W Fiber Laser Source | Provides reliable precision for marking and engraving precious metals. |
| Compact "Nano" Design | Saves valuable bench space while providing a 160 x 160 mm marking area. |
| Versatile Engraving | Handles logos, photo-engraving, and text with resolutions up to 20 μm. |
| Robust Software Suite | Easily imports SVG, DXF, BMP, JPG, and DWG files from design programs. |
| Integrated Focus System | Features overlapping pointers for quick and accurate manual Z-axis adjustment. |
Professional Capabilities for Small Laboratories
- Material Flexibility: Engineered to cut and engrave precious metals, steel, and advanced alloys.
- Ring Personalization: Supports an optional high-precision rotary axis for engraving inside and outside of rings.
- Low Maintenance: Modern laser technology ensures high precision with significantly reduced operating costs.

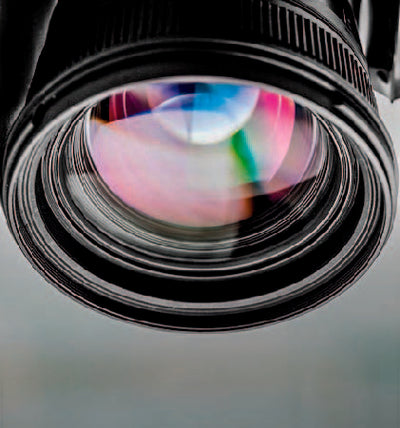

- Optional Internal Camera: Enhances processing precision and allows for remote technical assistance.
The Fiberlux Nano 30W is the ultimate solution for jewelry manufacturers requiring professional-grade marking and personalization in an affordable, compact package.
| Specifications | |
|---|---|
| Brand | ElettroLaser |
| Country of Origin | Italy |
| Model | FiberLux Nano |
| Wattage | 30 W |
| Power Supply | 110 V (230 V 50/60 Hz - 1 kW on request) |
| M 2 | < 1.8 |
| Work Area (L x D x H) | 9.8 x 9.8 x 12.2 in (250 x 250 x 310 mm) |
| Max Frequency | 60 kHz |
| Weight | 77 lbs (35 kg) |
| Dimensions | 25.6 x 15.4 x 24.7 in (652 x 392 x 629 mm) |
