Mid-range precision laser welder featuring a premium Leica lens for unmatched clarity.
| Model | MS 3.5 | MASTER 4.0 | MEGA 6.0 | MEGA 9.0 | ||
|---|---|---|---|---|---|---|
| SKU | LZ-1030 | LZ-1035 | LZ-10135 | LZ-10130 | LZ-6015 | LZ-6020 |
| Max Energy | 35 J | 80 J | 165 J | 225 J | 255 J | 300 J |
| Lens Type | Standard | Premium Leica | ||||
| Impulse Time | 0.1 to 12 ms | 0.1 to 25 ms | 0.1 to 20 ms | |||
| Spot Diameter | 0.2 to 2 mm | 0.1 to 2 mm (0.05 or 0.1 optional) | 0.2 to 2 mm | |||
| Laser / Wavelength | Nd:Ce:YAG 1064 nm | Nd:Ce:YAG 1064 nm 2 Lamps |
||||
| Average Power | 30 W | 100 W | 150 W | |||
| Peak Power | 3 kwp | 6.5 kwp | 11 kwp | 15 kwp | ||
| Cooling System | Single Cooling | Double Cooling | Integrated Pedestal | |||
| Power Source | 110/230 V AC, 50/60 Hz, 2.2 kW | 110/230 V AC, 50/60 Hz, 4.4 kW | ||||
| Origin | Italy | |||||

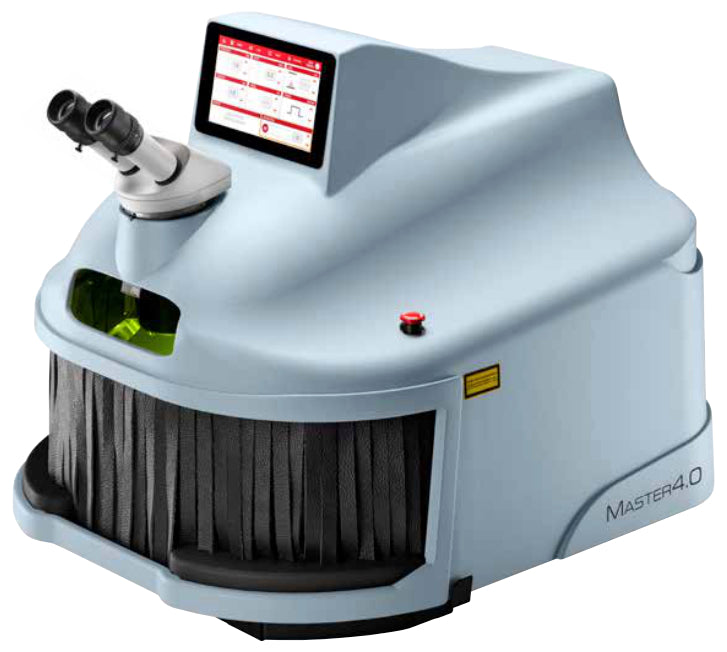

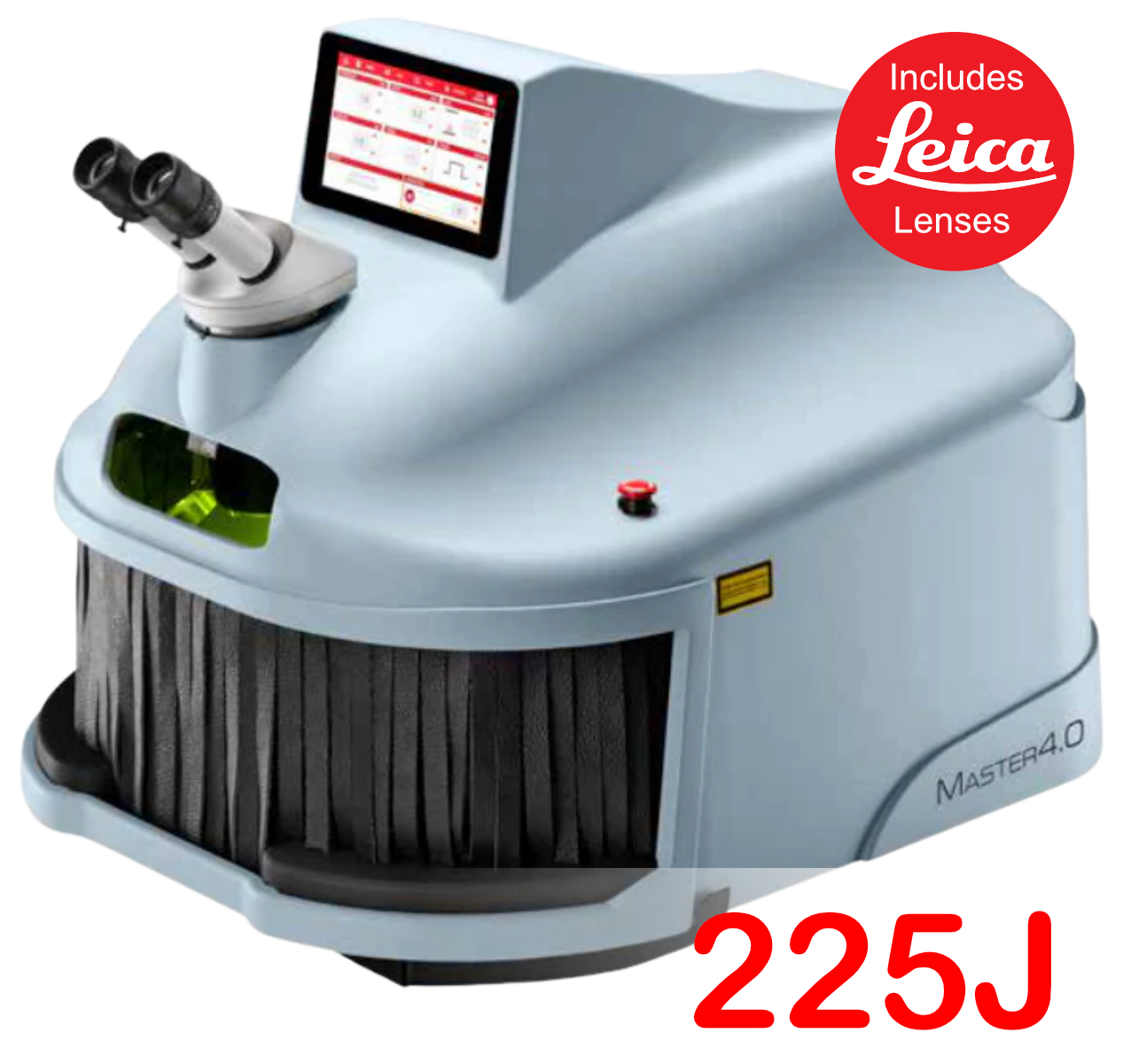

Elettrolaser Master 4.0: High-Power Industrial Welding Solution
The Elettrolaser Master 4.0 represents the next generation of laser welding technology, inheriting the proven innovations of its predecessors while integrating today’s most advanced digital features. Developed to meet the rigorous demands of industrial workshops, the Master 4.0 combines high working power with extreme reliability. With its massive welding chamber and enhanced connectivity, it is the premier choice for facilities requiring consistent, high-torque performance and long-term operational efficiency.
Digital Accuracy & Connectivity
The Master 4.0 is a fully connected tool designed for the modern manufacturing environment, offering real-time monitoring and repeatable precision.
- Stepper Motor Beam-Expander: Ensures absolute spot size repeatability for every shot, critical for delicate jewelry and dental components.
- Integrated Monitoring: Features a built-in camera with a 7-inch LCD display, plus optional USB recording or HDMI output for external viewing.
- Wi-Fi Connectivity: Enables seamless network integration for remote diagnostics and modern workshop management.
- High-Efficiency LED Lighting: Dual-chamber LEDs provide crystal-clear visibility across the entire workspace without generating excess heat.
Built for Maximum Uptime
Engineered to reduce maintenance overhead, the Master 4.0 features self-contained cooling and long-life consumables.
- Durable 8 mm Lamp: Optimized for longevity, delivering over 5 million consistent shots before requiring service.
- Filter-Free Design: Specifically engineered to operate without the need for constant filter replacements, lowering your long-term cost of ownership.
- Atmospheric Control: Built-in Air and Argon inlets allow for shielding gas application, significantly reducing oxidation for cleaner weld joints.
- 3 Year Warranty Included
Technical Performance Specs
Coast to Coast Support: Backed by Romanoff International’s extensive technical network, ensuring your high-production casting line remains operational with expert service and training across the country.
| Specifications | |
|---|---|
| Brand | ElettroLaser |
| Country of Origin | Italy |
| Laser Type | Nd:Ce: YAG 1064 nm |
| Pulse Energy (Joules) | 225 J |
| Pulse Length | 0.1 to 25ms |
| Peak Power | 11 kW |
| Power Source | 110 V or 230 V AC, 50/60 Hz |
| Spot Diameter | 0.2 to 2.0mm |
| Average Power | 100 W |
| Dimensions (L x W x H) | 33 x 20 x 20 in (850.9 x 508 x 508 mm) |
