80-joule laser welding system for high-strength jewelry and dental repairs.
Product Manual
Product Brochure
| Model | MS 3.5 | MASTER 4.0 | MEGA 6.0 | MEGA 9.0 | ||
|---|---|---|---|---|---|---|
| SKU | LZ-1030 | LZ-1035 | LZ-10135 | LZ-10130 | LZ-6015 | LZ-6020 |
| Max Energy | 35 J | 80 J | 165 J | 225 J | 255 J | 300 J |
| Lens Type | Standard | Premium Leica | ||||
| Impulse Time | 0.1 to 12 ms | 0.1 to 25 ms | 0.1 to 20 ms | |||
| Spot Diameter | 0.2 to 2 mm | 0.1 to 2 mm (0.05 or 0.1 optional) | 0.2 to 2 mm | |||
| Laser / Wavelength | Nd:Ce:YAG 1064 nm | Nd:Ce:YAG 1064 nm 2 Lamps |
||||
| Average Power | 30 W | 100 W | 150 W | |||
| Peak Power | 3 kwp | 6.5 kwp | 11 kwp | 15 kwp | ||
| Cooling System | Single Cooling | Double Cooling | Integrated Pedestal | |||
| Power Source | 110/230 V AC, 50/60 Hz, 2.2 kW | 110/230 V AC, 50/60 Hz, 4.4 kW | ||||
| Origin | Italy | |||||

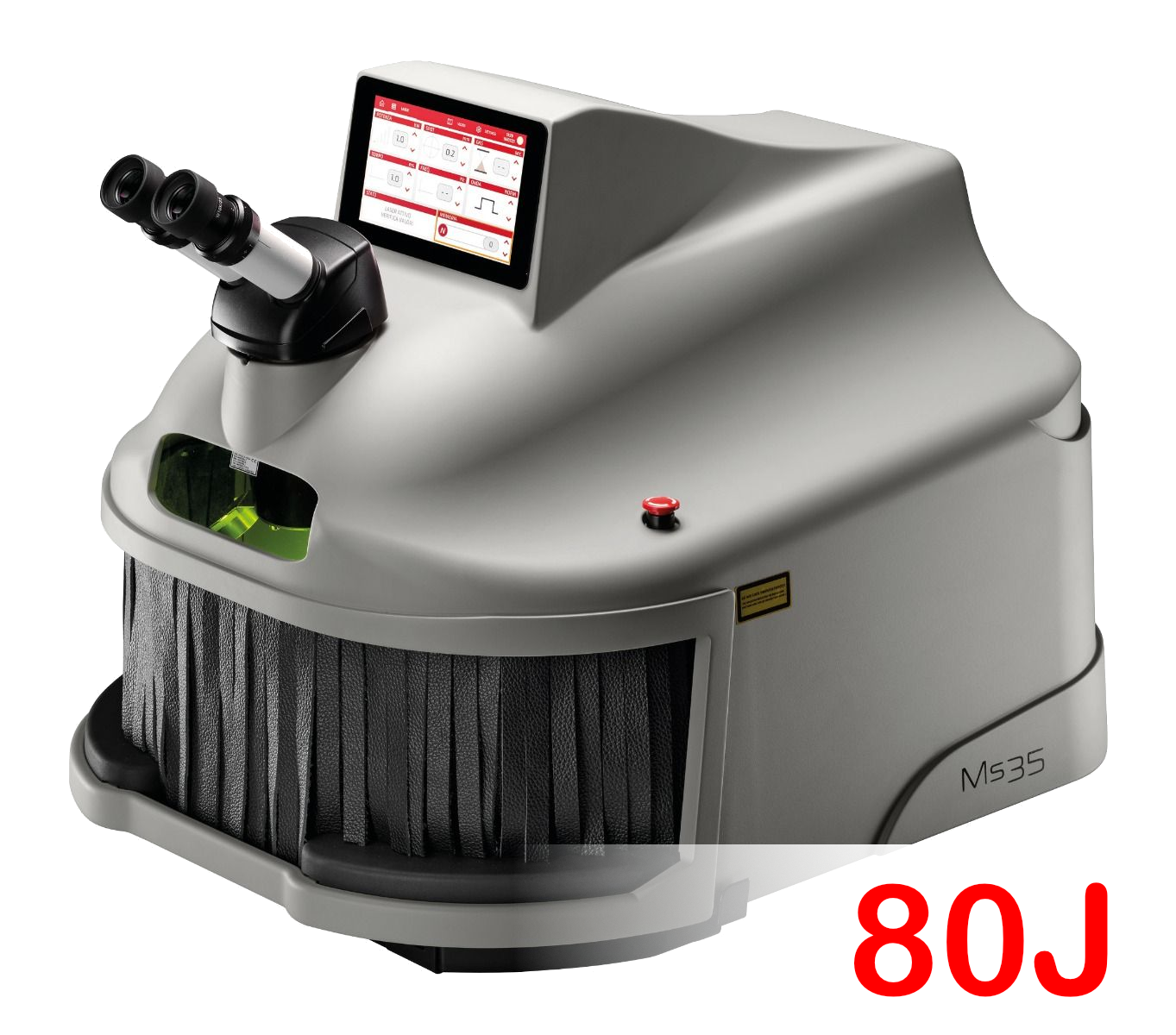

Elettrolaser MS 3.5: Professional Benchtop Laser Welder
The Elettrolaser MS 3.5 is an ultra-compact, second-generation benchtop laser welder engineered for the high-precision demands of modern jewelry and dental laboratories. Delivering a powerful 80 Joules of energy, this 110V workhorse provides the deep penetration necessary for welding gold, platinum, and highly reflective silver alloys. With a responsive capacitive touchscreen, the MS 3.5 offers an intuitive, ergonomic environment for executing microscopic welds with absolute repeatability.
Advanced Optical Accuracy
Clarity and control are the foundations of successful laser welding. This system integrates premium components for a superior operator experience.
- Capacitive Touchscreen: A 7-inch high-definition screen provides precise management of power, frequency, and spot size.
- Programmable Logic: Store and recall up to 100 memory slots for various alloys and specific workshop tasks.
- Argon Shielding: Integrated gas inlet prevents oxidation, ensuring clean, strong, and porosity-free weld joints.
Industrial Power & Comfort
Designed for continuous use, the MS 3.5 maintains peak performance during high-volume production or repair sessions.
- 80J High-Energy Output: Effortlessly handles silver and other high-reflectivity precious metals with a spot diameter range of 0.2 to 2.0 mm.
- Ergonomic Workspace: Reinforced armrests and ultra-low noise levels reduce operator fatigue for long-duration bench work.
- 36-Month Warranty: Backed by a comprehensive 3-year warranty, reflecting Elettrolaser’s commitment to quality.
Technical Specifications
| Industry Application | Core Benefits |
|---|---|
| Jewelry Repair | Safely weld near heat-sensitive stones; ideal for gold, platinum, and silver. |
| Dental Lab | High-precision welding of chrome cobalt and various dental alloys. |
| Watch & Eyewear | Delicate enough for small watch components and titanium frame restoration. |
Coast to Coast Support: Backed by Romanoff International’s extensive technical network, ensuring your high-production casting line remains operational with expert service and training across the country.
| Specifications | |
|---|---|
| Brand | ElettroLaser |
| Country of Origin | Italy |
| Pulse Energy (Joules) | 80 J |
