High-capacity casting machine featuring advanced thermal control for large metal batches.
Related Products
PDF
Product Manual
| Model | Max Power | Crucible Volume | Flask Size (Ø x H) | Vibration Technology |
|---|---|---|---|---|
| VC 3000 HTC | 30 kW | 3400 ccm = 34 kg Ag, 9 kg Al | 450 x 600 mm (17.7" x 23.6") | -- |
| VC 1000 HTC | 25 kW | 1500 ccm = 15 kg Ag, 4 kg Al | 250 x 500 mm | -- |
| VC 12000 HTC | 40kW | 12000 ccm = 180 kg Au 18 ct, 30 kg Al | 600 x 800 mm | -- |
| VC 650 V HTC | 12kW | 245 ccm = 3.6kg Au 18ct / 2kg Cu | Ø 130 x 240 mm | Standard equipment Sweep Mode |
| VC 680 V HTC | 12kW | 245 ccm = 3.6 kg Au 18ct / 2 kg Cu | 130 x 240 mm | Standard equipment Sweep Mode |
Indutherm VC Series Casting Systems
The Indutherm VC Series offers a flexible range of casting systems designed for precision, speed, and efficiency. From small-batch semi-automatic units to high-capacity fully automated models, these machines are engineered to ensure consistent results and future-ready integration for modern jewelry and industrial operations.
Key Performance Features
- Vibration & Controlled Pressure: Enhances mold filling and metal density while reducing porosity. This system improves mechanical properties and can cut post-processing time by up to 25%.
- Turbo Pressure & HSC: Includes Turbo Pressure for delicate stone-in-place casting and High Speed Casting (HSC) for superior fill and finish at lower temperatures.
- Overlapping Casting Workflow: Featuring independent locking systems for melting and cuvette chambers, allowing for simultaneous preparation and faster cycle times.
Advanced Technical Controls
| Temperature Precision | Dual-zone monitoring with 1° accuracy (VC 650 V / 680 V). |
| Oxidation Control | TRS (Turbulence Reduction Software) ensures smoother metal flow and post-cast protection. |
| Automation | Store up to 100 programmable cycles with preloaded alloy presets. |
System Integration & Maintenance
The VC Series is built for the modern workshop, featuring a user-friendly full-text LCD display and a built-in data printer for certified process logging. The software is fully prepared for remote maintenance and seamless integration with existing industrial systems.
| Specifications | |
|---|---|
| Brand | Indutherm |
| Country of Origin | Germany |

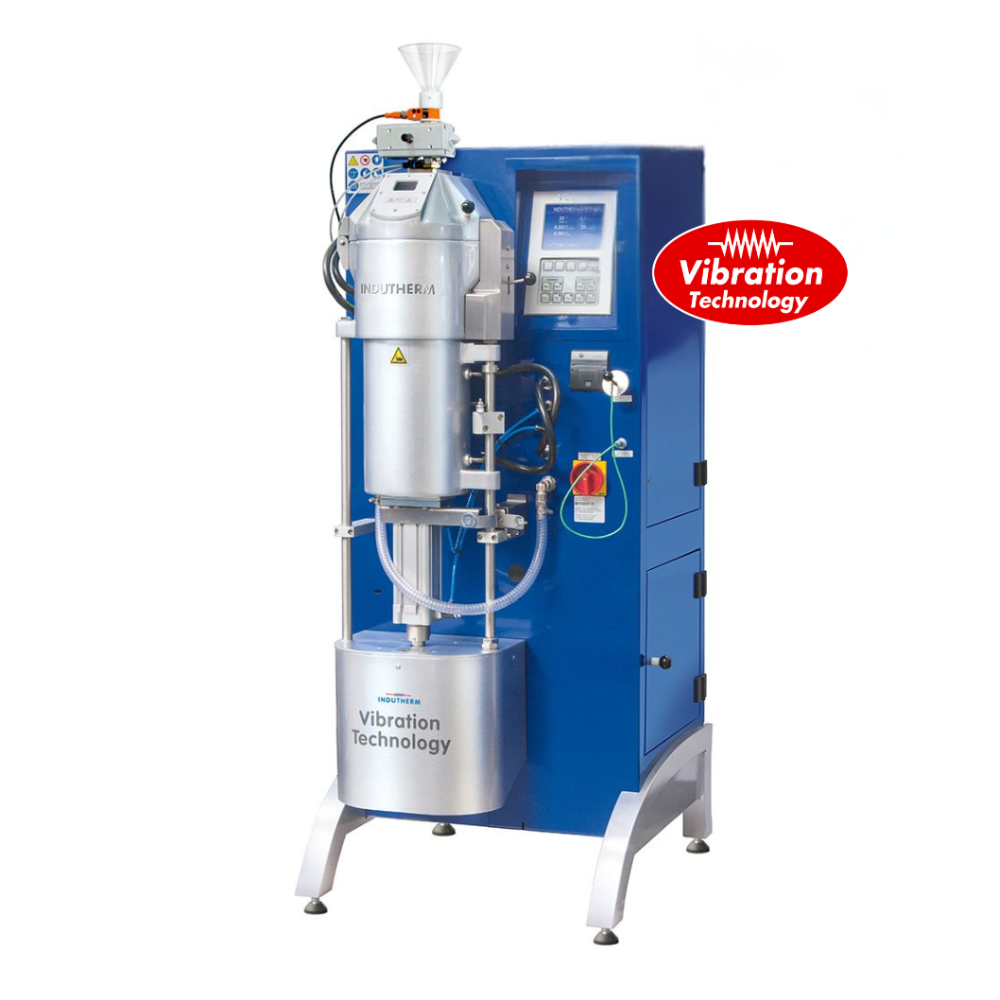

| Model | VC 680VHTC |
| Power Max / Electrical Connection | 12 kW (3x400v) |
| Temperature max. indirect inductive heating HTC | 2000° C |
| Training | Technical Remote Training & After Sales Support Included |
| Crucible Volume | 245 ccm = 3.6 kg Au 18 ct / 2 kg Cu* |
| For use of molds up to | ø 130 mm / 240 mm h |
| Dimensions | 700 mm x 1000 mm x 1450 mm |
| Maximum Pressure | 3 bar |
| Control System | by LCD-display, full text readout |
| Vibration Technology | standard equipment Sweep Mode |
| Programs | 100 |
| Temp. measurement by optical pyrometer | 1700° C |
