High-performance automatic tilting casting machine designed for melting and casting platinum and gold under vacuum or inert gas.
| Model | Power | Max Temp | Flask Size (Ø x H) | Compatible Metals |
|---|---|---|---|---|
| MC 16 | 3.5 kW | 2000°C | 30/50/65/80 x 80 mm | Gold (100 g 18 kt) |
| MC 20 V | 3.5 kW | 2000°C | 30/50/65/80 x 80 mm | Gold (100 g 18 kt) |
| MC 60V | 3.5 kW | 1300°C | Up to 80/100 x 120 mm | Gold (450 g 18 kt) |
| MC 100 V | 8 kW | 2000°C | Up to 80/100 x 120 mm | Platinum (500 g) |
| MTC 100 V | 8 kW | 2100°C | Up to 100 x 150 mm | Gold (450 g Au 18 kt) Steel (250 g) Platinum (600 g) |

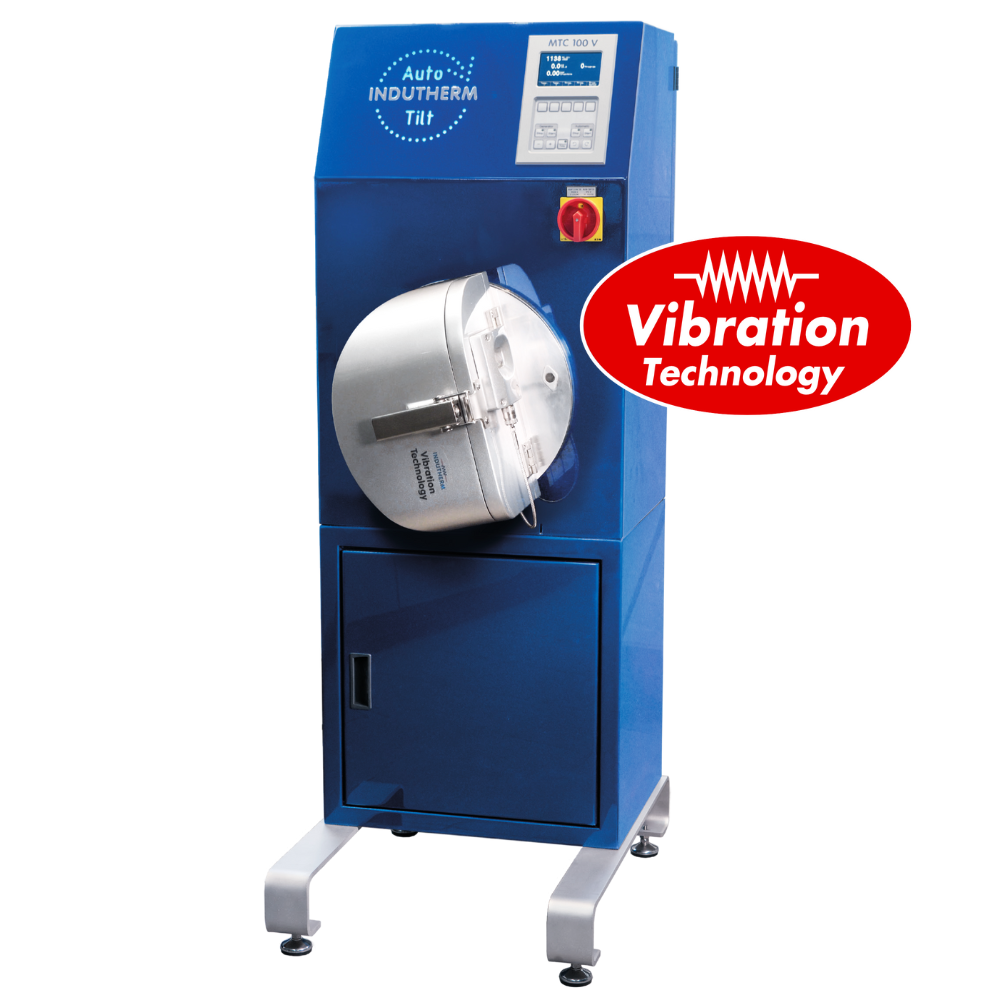

Indutherm MTC 100 V Platinum Casting Machine
The Indutherm MTC 100 V is a professional-grade tilt casting machine engineered for the extreme melting temperatures of platinum and gold alloys. It utilizes advanced induction heating technology to provide rapid melting cycles and superior metal homogenization under vacuum or overpressure.
The tilting mechanism allows for a controlled, precise pour into the flask, significantly reducing the risk of turbulence and porosity. With its compact footprint and high-efficiency power supply, it is the ideal choice for small to medium-sized casting houses requiring high-end results. This machine represents the pinnacle of German engineering for the most demanding precious metal casting tasks.
Performance & Quality Control
Designed to provide excellent form filling with its novel high-speed pressure and tilting system, the MTC 100 V ensures maximum casting quality. Operators benefit from less porosity and the finest surface quality on every cast. While optimized for up to 600g of Platinum, it is equally effective for casting gold and silver alloys or producing high-quality ingots.
- High-Speed Tilting: Automatic tilting feature with adjustable speed for tailored pouring.
- Advanced Induction: 8 kW induction power reaching temperatures up to 2100° C.
- Precision Monitoring: Compatible with a high-quality multi-wavelength infrared pyrometer (option).
- Optimized Pressure: Fully adjustable pressure build-up for superior mold density.
Technical Specifications
| Requirement | Specification |
|---|---|
| Platinum Capacity | 600g |
| Maximum Flask Size | 100 x 150 mm |
| Induction Power | 8 kW |
| Max Temperature | 2100° C |
| Specifications | |
|---|---|
| Brand | Indutherm |
| Country of Origin | Germany |
| Model | MTC 100V |
| Power | 8 kW |
| Temperature Max | 2100°C |
| Casting Volume | Gold (450 g Au 18 ct), Steel (250 g), 500 g PT |
| Flasks Compatibility | up to 100 x 150 mm |
