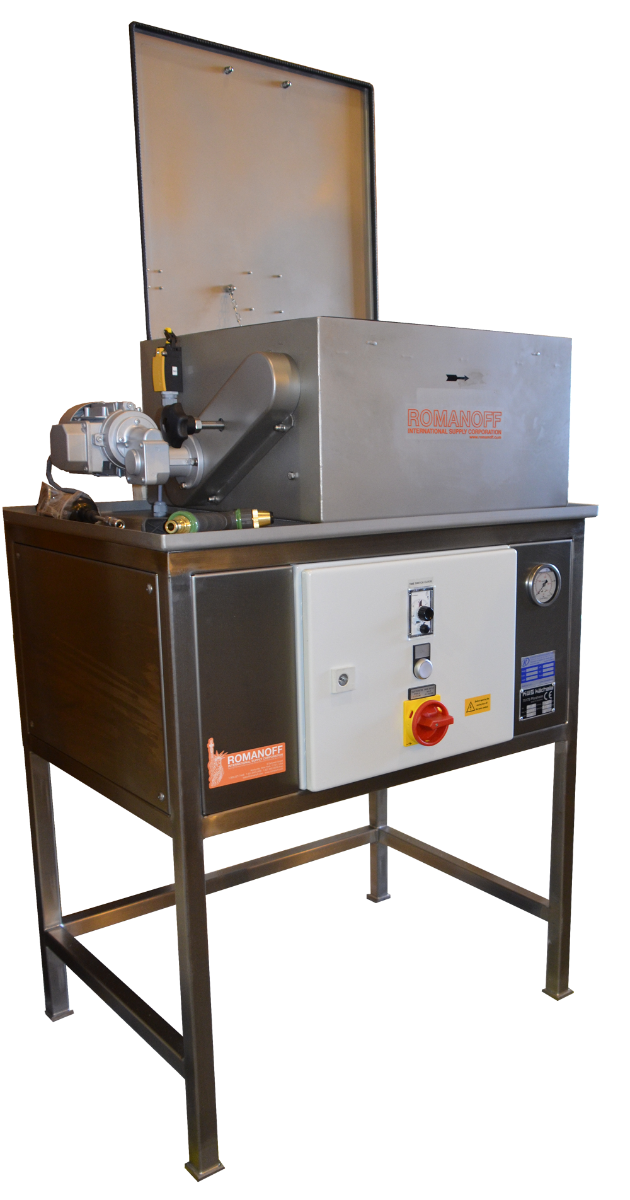

Automatic Flask Unbedding and Cleaning Machine With the development of this Flask Investment Removal Machine, the time to remove investment is greatly reduced by unifying two operations into one system.
Automatic Flask Investment Removal & Cleaning System
Streamline your production with a system that combines two critical operations into one. This machine automates the removal of the casting tree from the flask and the subsequent cleaning of the investment material, making manual post-cleaning a thing of the past.
Key Advantages
- Unskilled Operation: Simple, clean, and fully automatic design allows any staff member to operate the machine with minimal training.
- Flask Longevity: No deformation occurs to the flasks during the breaking or cleaning process. Flasks are ready for reuse immediately without additional cleaning.
- Damage-Free Cleaning: With adjustable water jet intensity, even delicate castings or trees with preset stones are cleaned thoroughly without damage or deformation.
- Rapid Cycle Times: The entire cleaning process is completed in just 45 to 60 seconds, depending on the tree size.
- Heavy-Duty Build: Constructed from high-grade stainless steel with heavy-duty components to ensure years of reliable productivity.
Dual-Stage Operation
This system utilizes a high-pressure water jet interface to handle two distinct tasks simultaneously:
1. Unbedding & Flask Recovery
The casting tree is unbedded from the flask while the investment compound is stripped away using an adjustable circular jet nozzle operating at 60 - 95 bars of pressure.
2. Casting Tree Deep-Clean
Remaining investment is removed from the casting tree via three movable jets operating at 95 bars. The pressure is fully adjustable to suit the fragility of your specific metal or stone settings.
Technical Specifications & Equipment
| Standard Nozzle Setup | 1x Circular Section Jet, 2x Large Jet Nozzles |
| Pressure Range | 60 to 95 bars (Adjustable) |
| Cycle Time | 45 - 60 Seconds |
| Construction Material | Heavy-Duty Stainless Steel |
| Optional Upgrades | Additional circular/large nozzles for custom tree shapes |
Technical Support: Romanoff International ensures your studio setup remains operational with expert service and training from coast to coast.
| Specifications | |
|---|---|
| Brand | Romanoff |
| Country of Origin | United States |
| Max Length of Flask | 280 mm |
| Max Length of Casting Tree | 280 mm |
| Dimensions (W x D x H) | 850 x 650 x 1250 mm |
| Voltage | 400 V / 3-phase / 50 Hz - Optional 220 V / three-phase / 60 Hz |
| Weight | 308 lbs / 456 lbs (gross) |
