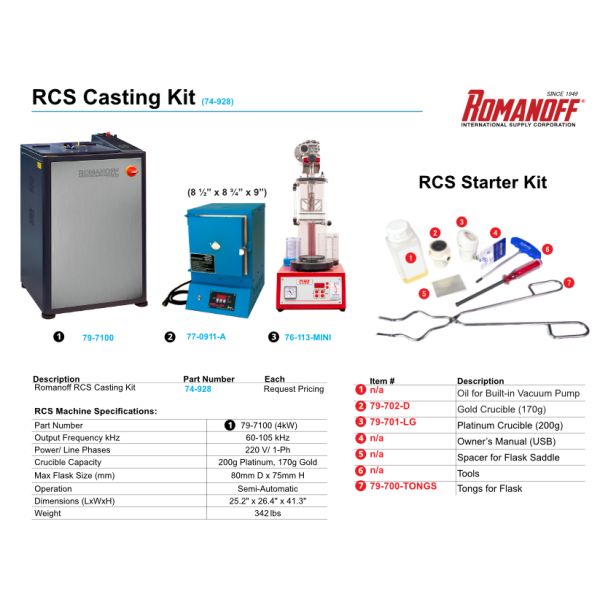

The Romanoff RCS casting kit with optical pyrometer is a comprehensive casting system bundle that combines essential casting tools with precision temperature monitoring for controlled melts and consistent results. It supports both metallurgical accuracy and reliable workflow performance in pressure or vacuum casting environments.
Product Brochure
| Model | Power | Max Temp | Crucible Capacity | Max Flask Size | Weight & Dimensions |
|---|---|---|---|---|---|
| RCS 4 kW | 4.0 kW 230V 30amp |
2000°C | 350g Pt 290g Au |
3 x 3 in (80 x 80 mm) |
342 lbs 25.2 x 26.4 x 41.3 in |
| RCS LITE 5 kW | 5.0 kW 230V 37amp |
2000°C | 200g Pt 170g Au |
3 x 2.75 in (80 x 75 mm) |
385.8 lbs 25.2 x 26.4 x 41.3 in |
A dual-purpose centrifugal casting machine featuring high-speed rotation and reinforced arm construction. It is specifically balanced to handle the high density of molten platinum and the fluid dynamics of gold alloys in the same unit.
Romanoff RCS Centrifugal Casting Machine
The Romanoff RCS is engineered for high-efficiency production and superior surface quality. By utilizing a vacuum-controlled atmosphere and precise thermal management, it provides a professional-grade solution for casting precious metals and stainless steel.
Key Features & Advantages
- Rotating Coil System (RCS): Maintains consistent heat throughout the casting cycle, significantly reducing porosity and improving surface finish.
- High Efficiency Production: Capable of casting 4–5 flasks per hour. For high-volume continuous production, an external water chiller is recommended.
- Vacuum + Inert Gas: Creates a stable, protective environment during melting to eliminate oxidation.
- Digital Precision: Programmable interface for power, rotation, temperature, and timing, coupled with an optical pyrometer for accurate readings up to 2000°C.
System cooling: Features a built-in water system and vacuum pump. The unit is versatile enough to handle gold, silver, platinum, and stainless steel alloys.
| Voltage Conversion | Primary: 110V (30-amp) | Secondary: 220V |
| Thermal Protection | Class F Insulation (Up to 155°C) |
| Construction | Dry-Type (No oil/liquid coolants required) |
| Frequency | 50Hz / 60Hz Global Compatibility |
