Super-Vac Casting Machine This heavy duty vacuum casting machine has been tailored to the needs of high production casters and is still one of the most commonly and inexpensive way to cast small to large quantities of metal.

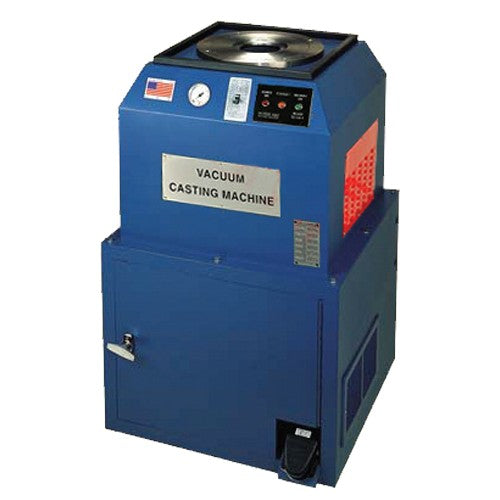

Super-Vac Heavy Duty Vacuum Casting Machine
The Super-Vac is a heavy-duty vacuum casting machine tailored specifically for the needs of high-production casters. It remains one of the most reliable and cost-effective methods for casting small to large quantities of metal. This open-pouring system is particularly excellent for brass and bronze casting, providing a dependable workflow for industrial-scale jewelry and part manufacturing.
How It Works
The Super-Vac builds vacuum pressure within a large primary holding tank, monitored via an integrated vacuum gauge. Once optimum pressure is reached, the operator loads the flask and activates the foot-operated air release valve. This instantly transfers the full vacuum pull from the lower tank to the upper chamber surrounding the flask, allowing for a dense, high-pressure pour that captures every detail of the mold.
Key Features
- High Production Capacity: Built for continuous use and large volume casting runs.
- Maximum Vacuum Pull: Large primary holding tank ensures a powerful, instantaneous draw around the flask for superior density.
- Foot-Pedal Operation: Hands-free vacuum transfer allows the operator to focus entirely on the precision of the pour.
- Large Flask Compatibility: Designed to accommodate flasks up to 8" in diameter and 12" in height.
Technical Specifications
| Category | Specification |
|---|---|
| Dimensions (H x W x D) | 40" x 25" x 25" |
| Weight | 400 lb |
| Max Flask Capacity | 8" Diameter x 12" High |
| Recommended Vacuum Pump | 21 CFM (Not Included) |
| Primary Applications | Brass, Bronze, Precious Metal Alloys |
Note: This unit requires an external vacuum pump for operation. We recommend a 21 CFM pump for optimal performance and maximum pressure draw.
