Advanced Yasui casting unit for high-output production.
Product Manual
Product Brochure
| Model | Power | Max Temp | Casting Weight (Au) | Flask Size |
|---|---|---|---|---|
| K3 UP | 4 kW | 1200°C | 0.9 kg (18K) | 125 x 230 mm |
| K2 NEXT 8K | 8 kW | 1200°C - 1450°C | 1.2 kg (18K) | 125 x 230 mm |
| K2 NEXT 16K | 10 kW | 1450°C | 1.2 kg (18K) | 125 x 300 mm |
An advanced, high-capacity vacuum pressure casting machine from Yasui, featuring upgraded induction heating and precision pressure controls.
The K3 UP is designed for high-volume production, offering superior atmospheric control to minimize oxidation and porosity in precious metal castings.

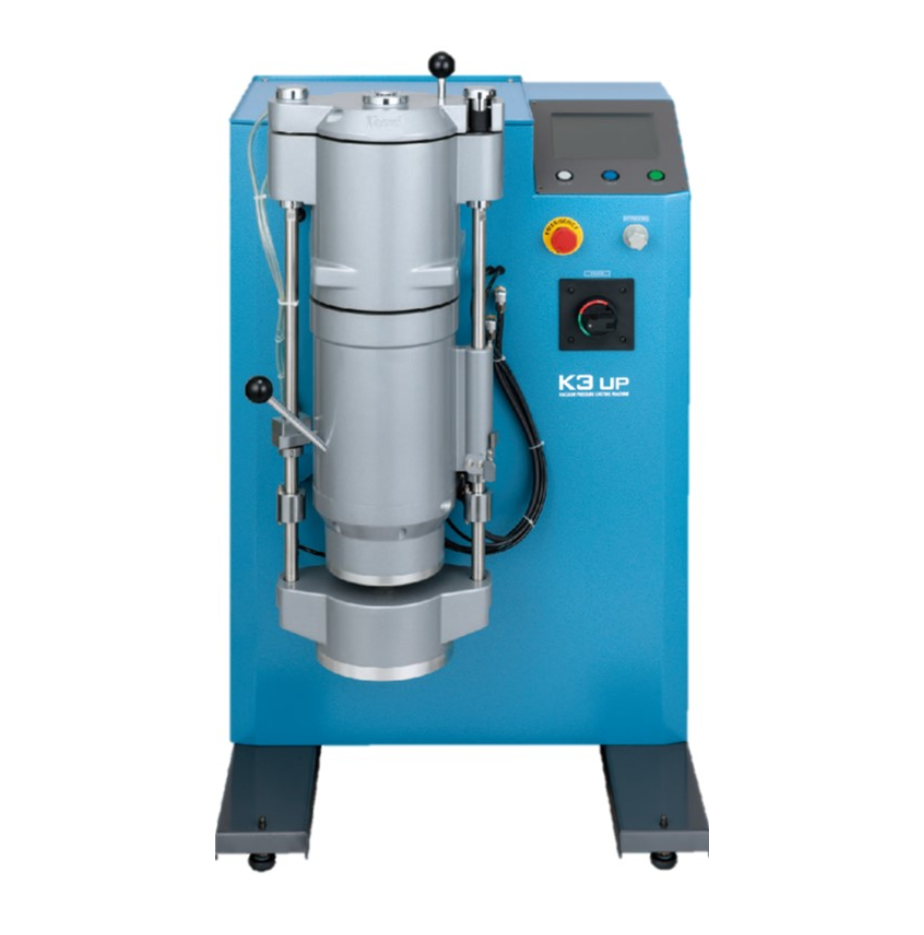

Yasui K3 UP: Precision Vacuum Pressure Casting
The Yasui K3 UP is a high-performance vacuum pressure casting machine engineered to provide a complete vacuum atmosphere for flawless results. Designed to accommodate large gold flask capacities, it combines advanced induction heating with an "OXY-Free" aftermode to eliminate oxidation and minimize metal loss during the casting process.
Advanced Thermal Management
Achieve unparalleled consistency with Yasui's proprietary Variable Heat Control, designed to minimize alloy evaporation and gold loss.
- Extreme Precision: Microprocessor-controlled PID auto-tuning ensures temperature accuracy of +/- 2.0 degrees centigrade.
- High-Temperature Versatility: Standard 1200.0°C capacity with an optional R-Type thermocouple allowing for temperatures up to 1450.0°C.
- Induction Technology: Advanced induction heating guarantees a perfectly homogeneous melt and extra mixing for gold alloys.
Compact & Dense Castings
The K3 UP is engineered to create compact, high-density castings by utilizing a secure gas-cylinder flask elevation system for airtight sealing.
- E-Touch Control Panel: Features a full memory system capable of storing 100 casting programs with detailed comments.
- Optimized Atmosphere: Uses Argon gas for de-gasing and filling to ensure oxide-free results.
- Flask Capacity: Accommodates standard 5.0 x 9.0 inch (125 x 230 mm) flasks with a maximum casting weight of 600.0g in 18KT gold.
- Oscillation Power: Driven by a 4.0 kW system designed for consistent, high-quality results in small to medium batches.
Safety and System Integrity
The K3 UP features a self-diagnosis system via its P.I.D. controller to monitor machine health and ensure process stability. For cooling, the unit utilizes a direct tap water cooling system (minimum 3.0 L/min) to maintain optimal operating temperatures between 70.0-75.0°F. Built for durability, the 185.0 kg unit is supported by a high-performance 11.0 cfm vacuum pump to handle rigorous production cycles. For facilities utilizing 220V power, a step-up transformer is available to ensure the 5.5 KVA power source operates at peak efficiency.
Professional Support: All Yasui units are backed by Romanoff International’s technical remote training and after-sales support. Made in Japan.
| Specifications | |
|---|---|
| Brand | Yasui |
| Country of Origin | Japan |
| Model | K3 UP |
| Power | 380 V AC +/- 10%, 3-Phase 220 V with Step-Up Transformer |
| Thermocouple Temperature | K-Type 1200°C (Standard) R-Type 1450°C (Optional) |
| Max. Crucible Capacity | 90 cc (0.9 kg 18 kt) |
| Max. Flask Size (W X H) | 125 x 230 mm |
| Machine Dimensions (L x W x H) | 721 x 753 x 1201 mm (29 x 30 x 48 in) |
| Crated Dimensions (L x W x H) | 1219 x 1066 x 1320 mm (48 x 42 x 52 in) |
| Crated Weight | 272 kg (600 lbs) |
| Attribute | Value |
| Uncrated Weight | 190 kg (418.8 lbs) |
