Advanced digital wax injector for bubble-free, high-detail jewelry patterns.
Product Manual

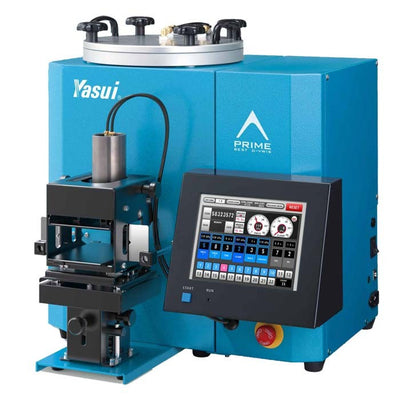

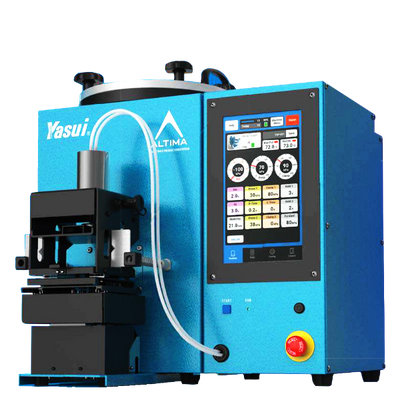

| Altima (74-265-SYS1) | Prime D (74-269A) | Prime X (74-269X) | |
|---|---|---|---|
| Z Height Control | √ | X | X |
| Control Interface | Touch Screen | Touch Screen | LCD Display |
| Mold Clamp | √ | √ | √ |
| Double Injection | √ | √ | X |
| Assist Mode | √ | X | X |
The Yasui Prime X Vacuum Wax Injector System represents the pinnacle of vacuum wax injection technology, refined through 30 years of Yasui’s industry-leading expertise. With over 20,000 units operating globally, this system is the professional standard for high-volume, zero-defect jewelry production.
By integrating advanced digital controls with a high-capacity vacuum system, the Prime X eliminates air bubbles, ensuring every wax pattern captures the most intricate details of your molds with absolute consistency. Operators can easily tune settings for each mold, creating a mold-specific "recipe" stored in the system memory for instant recall.
| Feature | Performance Benefit |
|---|---|
| Large Clamp Design | Enhanced stability and accuracy compared to the Yasui D-VWIS. |
| Integrated Mold Memory | Stores parameters for all molds to enable rapid project changes. |
| Precision Vacuum Technology | Eliminates air bubbles for zero-defect wax patterns. |
| X-Y-Z Axis Control | Precise manual and digital adjustments for perfect nozzle alignment. |
| Auto Preheating | Reduces downtime by ensuring the system is production-ready in advance. |
| Digital Interface | User-friendly computer control for quick parameter checks and tuning. |
| Equal Weight Distribution | Ensures uniform wax weights across every injection for lower rejection rates. |
Why Upgrade to the Yasui Prime X?
- Boosted Productivity: Streamlined workflow and pre-stored settings increase daily output.
- Precision Casting: High-fidelity patterns mirror the original design without distortion.
- Operational Ease: Pre-stored parameters allow new operators to start producing immediately.
- Global Reliability: Built on a legacy of 20,000+ installations worldwide.
The Yasui Prime X is the ideal choice for jewelry manufacturers demanding maximum efficiency and flawless results for high-precision casting.
| Specifications | |
|---|---|
| Brand | Yasui |
| Country of Origin | Japan |
| Model | Prime X |
| Power | 230V, 50/60Hz, Single Phase |
| Temp. Control Range | 40°C - 100°C (104°F - 212°F) |
| Wax Capacity | 7.7 lbs (~3.5 kg) |
| Clamp Type | X Clamp |
| Interface Max Mold Size (W x D x H) | 4.33 x 5.31 x 1.97 in (11.0 x 13.5 x 5.0 cm) |
| Machine Weight | 55.2 lbs (25 kg) |
| Machine Dimensions (in) | 20.59 x 14.69 x 21.38 in (52.3 x 37.3 x 54.3 cm) |
