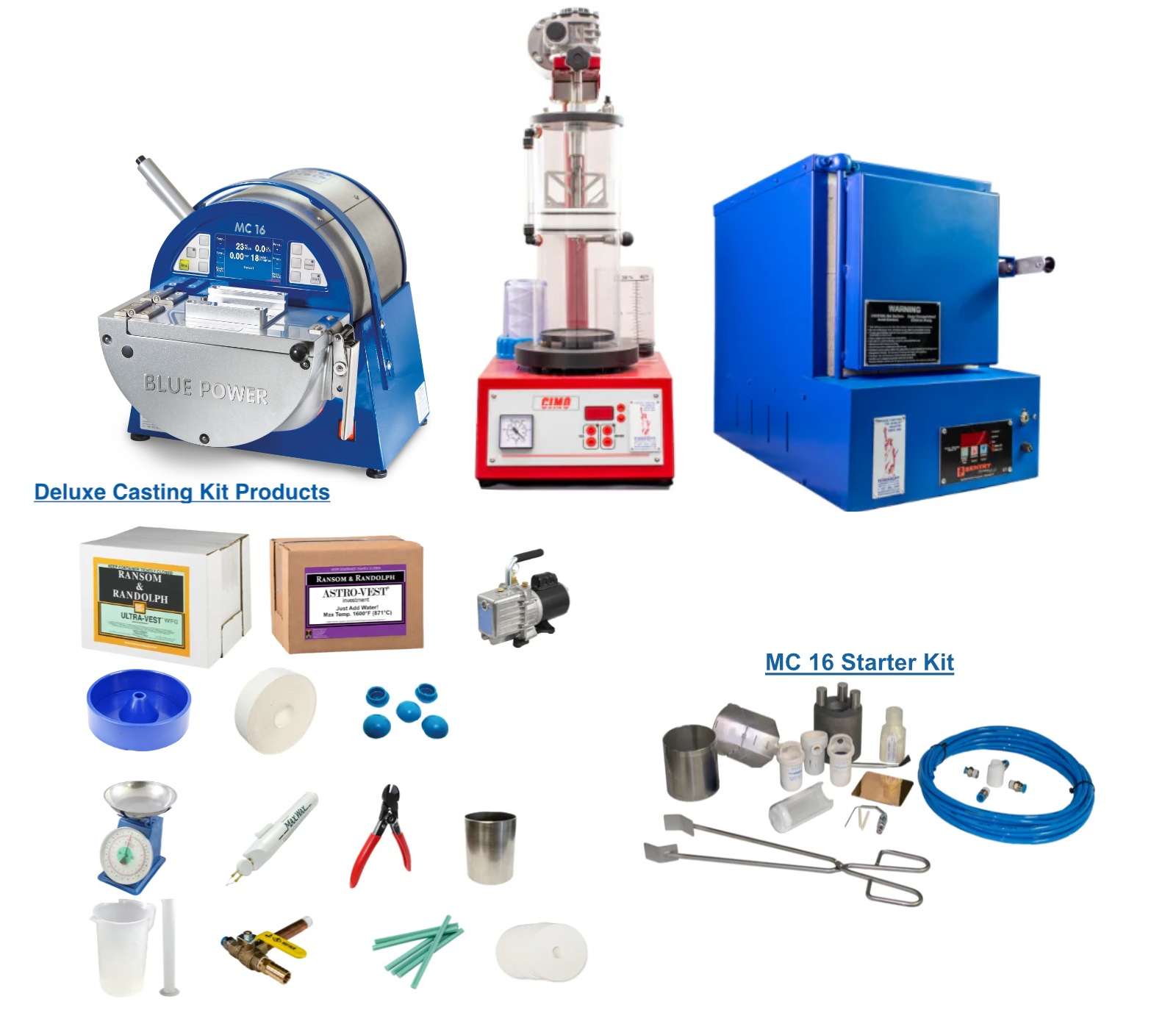

Complete accessory set for the MC 16 casting machine. Includes burnout oven and investment mixer.
Product Manual
Starter Kit
Product Brochure
| Model | Power | Max Temp | Flask Size (Ø x H) | Compatible Metals | Replacement Crucible |
|---|---|---|---|---|---|
| MC 16 | 3.5 kW | 2000°C | 30/50/65/80 x 80 mm |
Gold (18 kt): 100g Steel: 110g Platinum: 200g |
78-2003 - Platinum 78-2004 - Gold/Silver |
| MC 20 V | 3.5 kW | 2000°C | 30/50/65/80 x 80 mm |
Gold (18 kt): 100g Steel: 110g Platinum: 200g |
78-2003 - Platinum 78-2004 - Gold/Silver |
| MC 60 V | 3.5 kW | 1300°C | Up to 80/100 x 120 mm |
Gold: 450g Silver: 300g |
78-2504 - Gold/Silver |
| MC 100 V | 8 kW | 2000°C | Up to 80/100 x 120 mm |
Gold: 450g Steel: 250g Platinum: 600g |
78-4503-CS - Small Platinum 78-4503 - Large Platinum 78-2504 - Gold/Silver |
| MTC 100 V | 8 kW | 2100°C | Up to 100 x 150 mm |
Gold: 450g Steel: 250g Platinum: 600g |
78-4503-CS - Small Platinum 78-4503 - Large Platinum 78-2504 - Gold/Silver |
Compact Size for Professional Projects
Measuring under two feet in all dimensions and weighing just 60 lbs, this casting machine is a powerhouse in a small package. It is an ideal, economical solution for jewelry studios and goldsmith workshops where space is at a premium.
Vacuum-Controlled Melting & Rapid Workflow
Stay in control with a high-quality LCD display designed for intuitive programming. This unit is engineered for efficiency, allowing you to move from wax piece to finished casting in record time:
- Standard Investment Material: Less than 4 hours.
- "Speed" Investment Material: Less than 2 hours.
- Cost-Efficient: Reduced consumption of materials leads to significant long-term savings.
Key Benefits:
- Enhanced Mold Filling: Perfect for highly filigree and delicate parts.
- Superior Metal Quality: Prevents porosity and ensures a finer grain structure.
- Increased Density: Provides greater and more constant density throughout the piece.
- Better Workability: Parts exhibit measurably higher elasticity, significantly increasing the scope for further processing.
- A Reliable Alternative: A compelling, robust alternative to delicate centrifugal systems, especially when working with Platinum or Palladium.
The MC 16 delivers fast, efficient melting through induction heating, which also creates a natural stirring action in the molten metal. This stirring effect helps mix the alloy evenly, giving you a more homogeneous melt and more repeatable casting performance.
When casting gold and silver, the thermocouple measures temperature directly inside the metal, allowing for highly accurate control without unnecessary overheating. Keeping the melt at the proper temperature helps reduce shrinkage porosity and promotes dense, high-quality castings.
During casting, argon gas generates overpressure to push the metal into the mold quickly and consistently. The result is strong flask fill, sharp detail, and dependable casting quality.
Brand: Indutherm
Country of Origin: Germany
Model: MC 16
Power: 3.5 kW
Electrical Requirements: 230 V, single-phase, 16 A, 50/60 Hz
Maximum Temperature: 2000°C (3632°F)
Thermocouple Options: Type N standard up to 1300°C, optional Type S up to 1400°C
Compatible Metals / Casting Capacity: Gold (18 kt): 100g, Steel: 110g, Platinum: 200g
Flask Size (Ø x H): 30 / 50 / 65 / 80 x 80 mm
Replacement Crucible: 78-2003 - Platinum, 78-2004 - Gold/Silver
Control: LCD display with full text readout
Vacuum / Overpressure: Automatic system, -1 to +2 bar
Machine Dimensions (L x W x H): 16 x 16 x 17.5 in (406 x 406 x 444.5 mm)
Uncrated Weight: 60 lb (27 kg)
Crated Dimensions (L x W x H): 42 x 34 x 35 in (1066 x 863 x 889 mm)
Crated Weight: 188 lb (85 kg)
Included Training: Remote technical training and after-sales support included
Application: Small jewelry pieces and light production casting under vacuum pressure
Form Factor: Tabletop unit for studio or bench use
